WatchGuard
Quick Start Guide

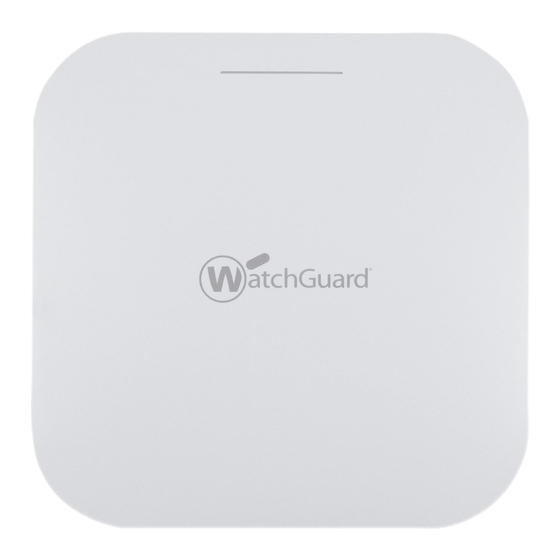

AP330
Schnellstartanleitung
Guide de
démarrage rapide
Installer Installieren Instalar インストールする
2
INSTALL
CEILING MOUNT
WALL MOUNT
Use the included spacers if you mount to a
wall with the 15/16" bracket attached to the
access point.
AP
®
Guía Rápida
(9/16" T-Rail)
(15/16" T-Rail)
Ceiling Mount Brackets
Wall Mount Screws
Spacers
Activer Aktivieren Activar 有効化する
1
ACTIVATE
watchguard.com/activate
Connecter Verbinden Conectar 接続する
3
CONNECT
LED
Mounting Holes
Reset
USB
Power Options
WG8602 (AU), WG8601 (UK), WG8600 (EU), WG8599 (US)
WG9009
(110mm)
DC Jack (12V)
PoE 802.3at
(54V DC, 0.6A)
Console
WatchGuard 802.3at PoE+ Injector with AC cord
12V Power Adapter for WatchGuard AP330
Advertisement
Related Manuals for Watchguard AP330
Summary of Contents for Watchguard AP330
- Page 1 Use the included spacers if you mount to a wall with the 15/16" bracket attached to the access point. Power Options WG8602 (AU), WG8601 (UK), WG8600 (EU), WG8599 (US) WatchGuard 802.3at PoE+ Injector with AC cord WG9009 12V Power Adapter for WatchGuard AP330...
- Page 2 505 Fifth Ave. S., Suite 500 Seattle, WA 98104-3892 USA WatchGuard Technologies Inc. hereby declares that the product(s) listed below conform to the European Union directives and This device has software that cannot affect compliance with the Radio Equipment Directive (RED) standards identified in this declaration.
