Summary of Contents for Watchguard WatchGuard AP Series

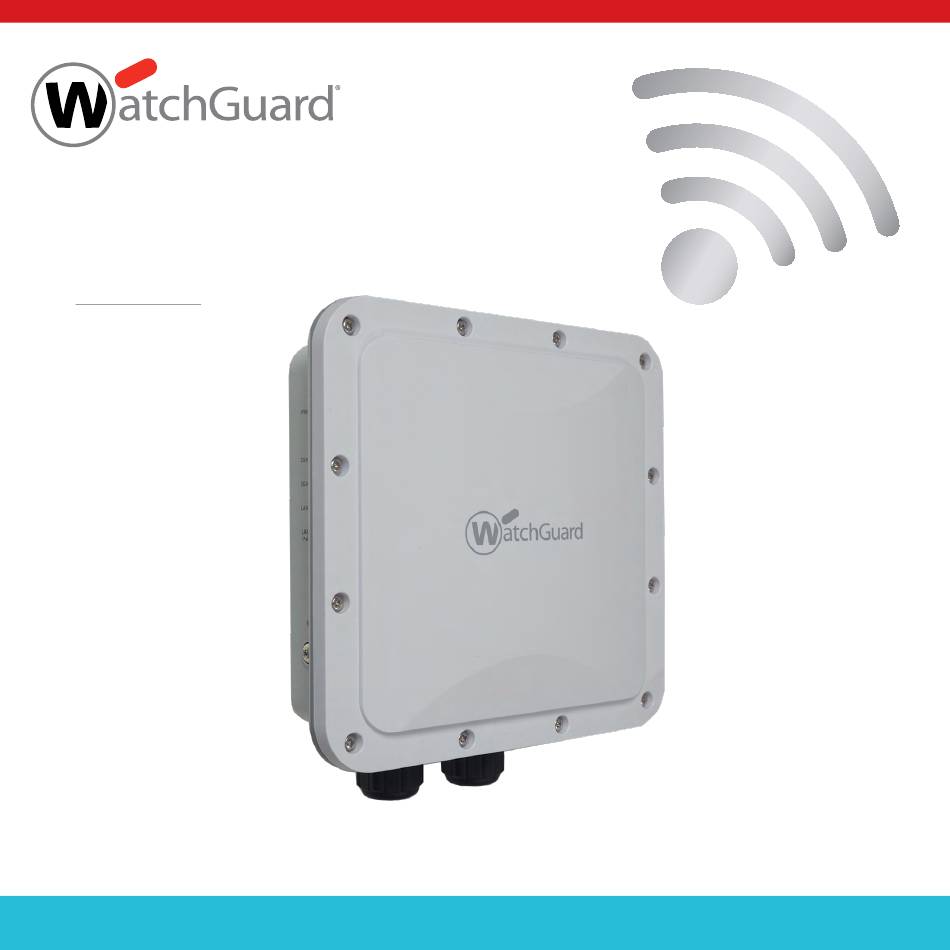

- Page 1 WatchGuard ® AP327X HW Model: O-105E Quick Start Guide WatchGuard® Technologies, Inc.
- Page 2 Dual-Band Omni Antennas (5/7 dBi) Power Options Eth. MAC: 00:90:7F:13:02:DF WG8599 (US) WatchGuard 802.3at PoE+ Injector with AC cord (US) WG8600 (EU) WatchGuard 802.3at PoE+ Injector with AC cord (EU) WG8601 (UK) WatchGuard 802.3at PoE+ Injector with AC cord (UK) WG8602 (AU) WatchGuard 802.3at PoE+ Injector with AC cord (AU)
-
Page 3: Wall Mount
Wall Mount MOUNT YOUR AP Pole Mount Wall mount Pole mount Drill location Insert four anchors 50.00 mm... -
Page 4: Ground Wire
Ground Wire ATTACH ANTENNAS (Sold separately) To protect your outdoor AP from electrical events, we recommend you ground the AP with the included ground wire based on your local regulations. Um Ihren AP im Außenbereich vor elektrischen Problemen zu schützen, empfehlen wir, den AP gemäß den lokalen Vorschriften mit dem bereitgestellten Erdungskabel zu erden. -
Page 5: Ethernet Cable Installation
Ethernet Cable Installation CONNECT YOUR AP PoE+ power (injector or switch) LAN1 (PoE) This device supports PoE+ (802.3at) only. The use of PoE (802.3af ) power may result in limited functionality and device instability. Dieses Gerät unterstützt nur PoE+ (802.3at). Die Verwendung von PoE (802.3af ) kann in eingeschränkter Funk- tionalität und Geräteinstabilität resultieren. - Page 6 Wireless radio on, no clients connected Flashing: Wireless radio activity LAN1 (PoE) and LAN2 Off: No Ethernet Link Green: Connected to network Flashing: Network activity Manage APs with Manage APs with your WatchGuard Wi-Fi Cloud WatchGuard Firebox (Fireware v12.5 or higher)
- Page 7 Additional information, including a full list of safety approvals, global compliance standards, and essential requirements of article 3.2 of the RED Directive. certifications can be found in the Hardware Guide for this device located on the WatchGuard website: https://www.watchguard.com/wgrd-help/documentation/hardware-guides EN 301 489-1 V2.1.1 Electromagnetic compatibility and Radio spectrum Matters (ERM);...
- Page 8 Declaration of Conformity ANATEL WARNING WatchGuard Technologies Inc. hereby declares that the product(s) listed below conform to the Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar European Union directives and standards identified in this declaration.
- Page 9 INTERNATIONAL SALES: +1.206.613.0895 © 2019 WatchGuard Technologies, Inc. All rights reserved. WatchGuard, the WatchGuard Logo, Fireware, and LiveSecurity are registered trademarks of WatchGuard Technologies, Inc. in the United States and/or other countries. All other trademarks and tradenames are the property of their respective owners.
