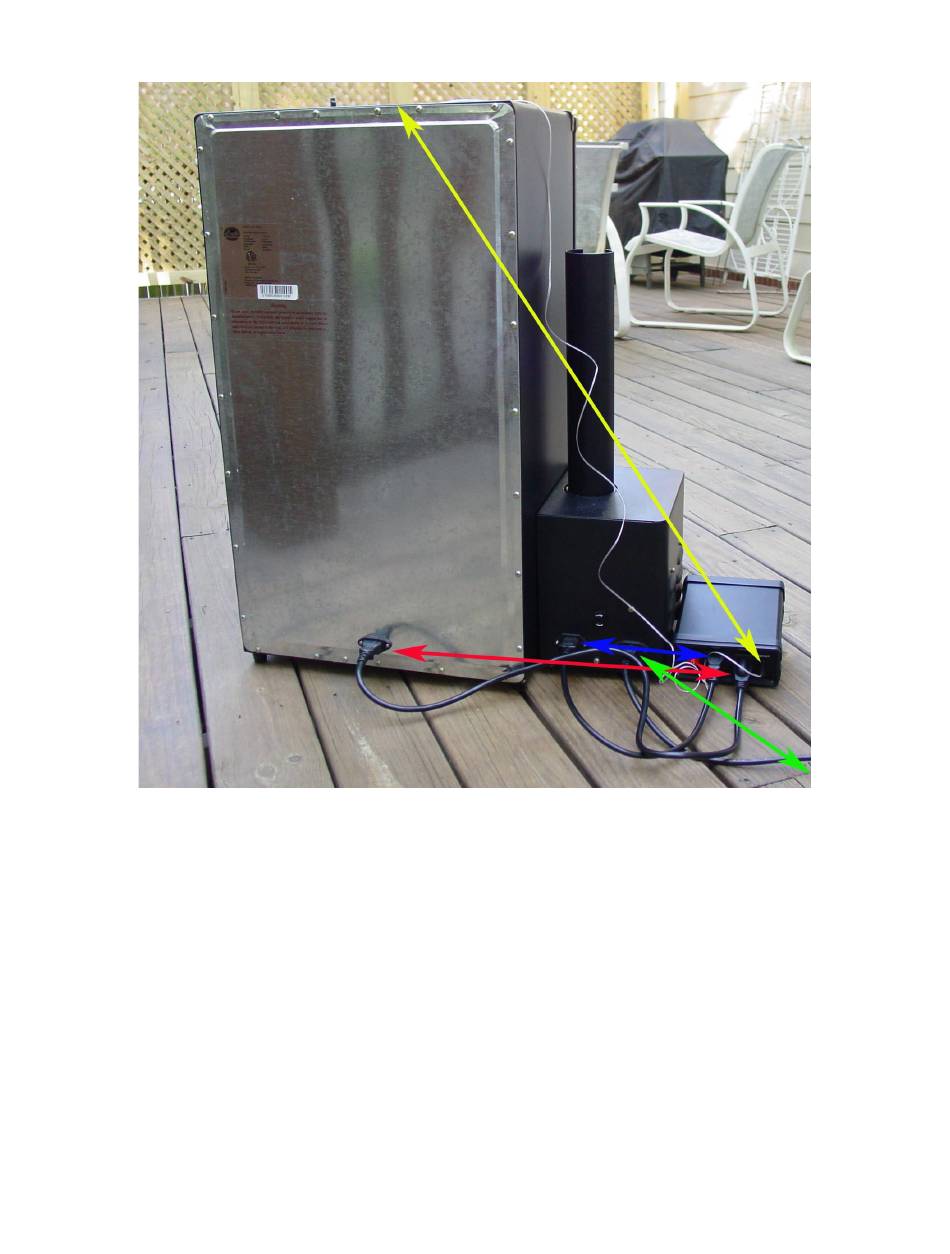

Fig 4. Power connection of the controller and smoker.
The generator is connected to the power strip by the power cord from Bradley (green arrows).
The input of the controller is connected to the female receptacle on the generator by the power
jumper cord provided by the Bradley (blue arrows). It is the cord that used to connect the generator
to smoker. The controller output is connected to the smoker by the power cord (red arrows).
Install the sensor. The sensor is plugged into the sensor port on the controller (Figure 4).The tip
of the sensor is dropped into the damper hole. It is hold in place by a piece of tape on the top of
the smoker tower. (Figure 5)
