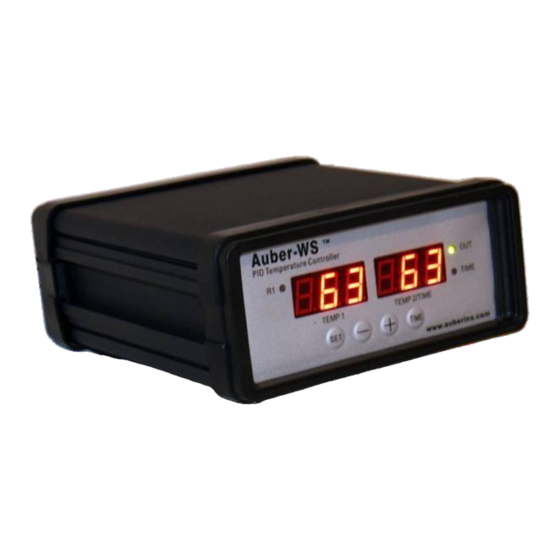

Programmable PID Temperature Controller with Dual Probe
Introduction
Thank you for purchasing the Auber WS series temperature controller. We sincerely
appreciate your decision and trust that our machine will meet your expectations in both
the quality of the result and the value of our product. While we are delighted that you may
be anxious to operate the controller for your project, a few minutes of your time reading
through this manual will only serve to enhance your experience in the months and years
ahead. In particular, we urge you to read through the safety warnings below. Although
this plug-and-play controller is very easy to operate, the process involves high
temperature and high wattage appliances and your safety is paramount.
This controller is designed only to be used with devices that have limited power
and their own thermal cut off protection, such as a thermostat or thermal fuse in
case of controller failure.
Do not place any objects on the top of controller surface which is used to vent
excess heat during its operation.
The maximum electric current this controller can handle is 15 ampere. For 120
volt AC in US and Canada, this limits the heater power to 1800 watts.
Always place the sensor in the controlled subject when the controller is on. Before
turning on the controller, please make sure the sensor is placed inside the
container to be controlled. Leaving the sensor outside of the solution will form an
open loop operation. If the sensor is left outside, controller will assume the
temperature is low even if the controlled subject is already very hot. The controller
will provide full power to the heater. It will not only overheat the controller, but also
damage your appliance, and even cause a fire.
This controller is designed to control the devices recommended by Auber
*
Patent pending

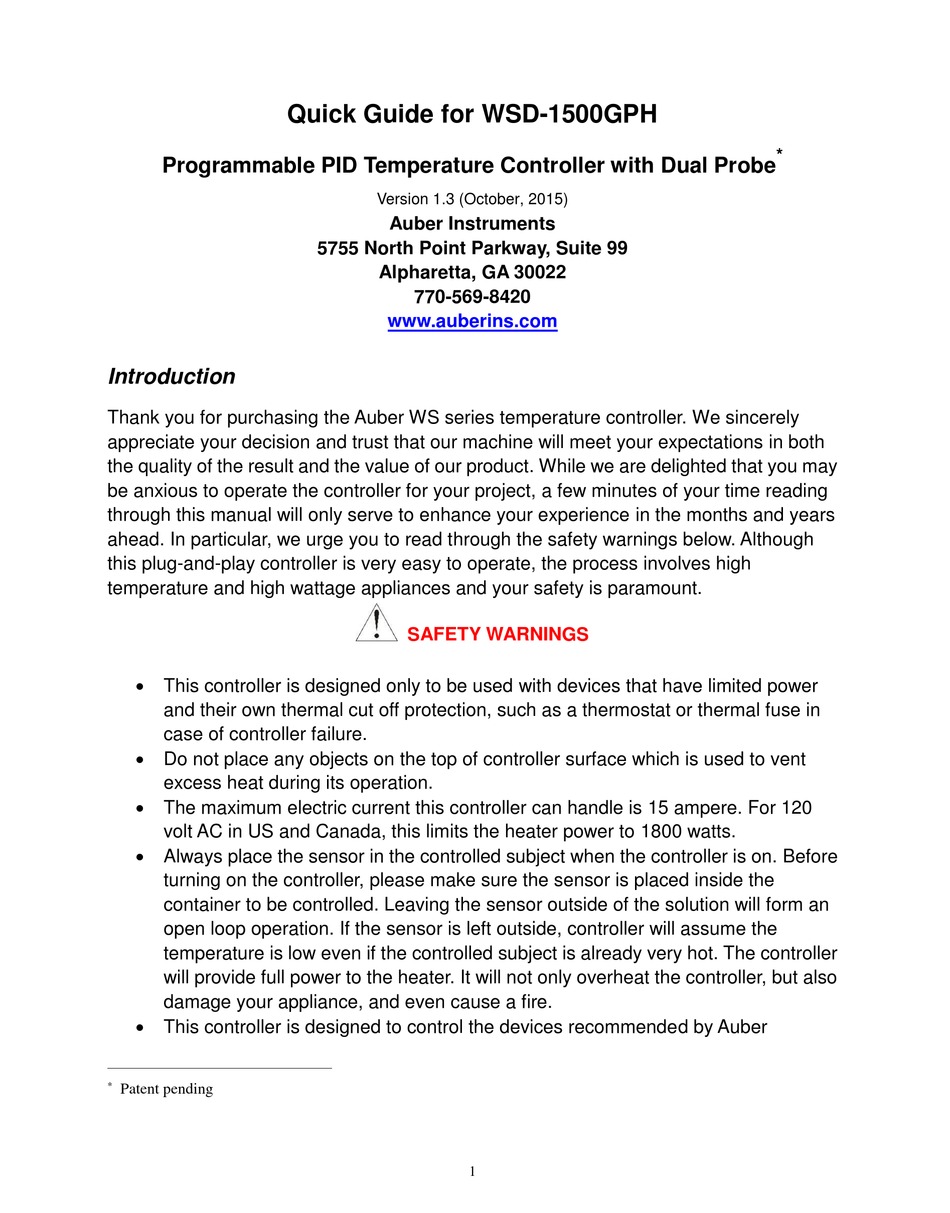

Quick Guide for WSD-1500GPH
Version 1.3 (October, 2015)
Auber Instruments
5755 North Point Parkway, Suite 99
Alpharetta, GA 30022
770-569-8420
www.auberins.com
SAFETY WARNINGS
1
*
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Auber Instruments WSD-1500GPH
Summary of Contents for Auber Instruments WSD-1500GPH
- Page 1 Quick Guide for WSD-1500GPH Programmable PID Temperature Controller with Dual Probe Version 1.3 (October, 2015) Auber Instruments 5755 North Point Parkway, Suite 99 Alpharetta, GA 30022 770-569-8420 www.auberins.com Introduction Thank you for purchasing the Auber WS series temperature controller. We sincerely appreciate your decision and trust that our machine will meet your expectations in both the quality of the result and the value of our product.
- Page 2 Instruments only. Using it to control a not recommended device can be dangerous and cause fire. Auber Instruments is not liable for damages caused by misuse of the controller. If you are not sure the controller can be used, please contact Auber Instruments before use.
- Page 3 4) Smoker generator control output status indicator. When lit, the smoker generator control output is on. When off, the output is off. 5) Timer status indicator - When lit, right window shows the time passed since power up. When it is off, right window shows the current temperature detected by the probe 2.
- Page 4 cabinet temperature. We name it probe 1. It needs to be plugged to the top sensor jack at the back of the controller. The long probe with a bend at the end is for the meat internal temperature measurement. It needs to be plugged to the bottom sensor jack at the back of the controller.
- Page 5 1) Connection for Bradley Original Smoker, with control of the smoker generator. a) Connecting the controller to the power outlet, you should use the power cord that came with the Bradley Smoker for connecting the smoker generator to the power outlet. b) Connecting the controller to the smoker generator.
- Page 6 c) Connecting the controller output to the Bradley Smoker Tower with the power cord that came with the Auber Controller To Power Outlet Cable B Cable A Smoke Smoker Tower Auber Generator Controller Probe 2: Probe 1: Internal Temp Cabinet Temp Figure 5.
- Page 7 Figure 7. Connection between the controller and smoker 2) Connection for Bradley Digital Smoker. For the Bradley Digital Smoker, both controller and smoker generator should be connected directly to the wall outlet. Connect the controller output with the smoker tower. To Power Outlet To Power Outlet Cable B...
- Page 8 3. Programming the smoking temperature profile. A total of 6 steps can be programmed for this controller. Each step contains the set temperature (C-X) and an ending criteria setting (E-X), where “X” is the step number (e.g. Step 4 temperature is represented by C-4 and step 4 ending criterion is represented by E-4).
- Page 9 hours, waiting you to pick the food. If you set C-3=0 and t-3=0, when meat internal temperature reaches 160 ° F, the controller will shut off the heater, flashing END on both windows, and turn on the beeping alarm to notify you that cooking is finished. Table 1.
- Page 10 6. Important consideration for better control results. The following is a list of things that could affect the result of temperature control. a) The smoker and controller location. The smoker should not be placed directly in the sun. Direct sun light can heat the smoker to above 140 ° F in the summer time, making controlling the temperature at 140 °...
- Page 11 7. Program the smoker generator on step. The smoker generator is controlled by the parameter R1 and R2. These two parameters determine which steps to turn on the smoker generator. The smoker generator will stay on only for the step it is programmed. It will turns off when program goes to the next step. e.g.
- Page 12 be higher than the alarm temperature. d) AST is the step ending alarm. When AST is turned on, the buzzer will beep 4 times when each step is finished. It is useful to notify the user the cooking step is finished. User can turn it off if no buzzer sound is wanted at the finish of each step.
- Page 13 10. Single-step mode In this mode, the controller will hold temperature at one set value (C-1) continuously as long as the controller is powered on. Even if the controller is powered off and turned on again, it will resume working in this mode. You do not need to enter any other program steps in this mode.
- Page 14 Before you input your program, check the PrG = on (accessed by LCK code “3”). Long press SET, set LCK=2, choose b1, press set to exit. Then recipe b1 is recalled back as the current program. The controller is back to the normal operating mode and will start run the current program.
