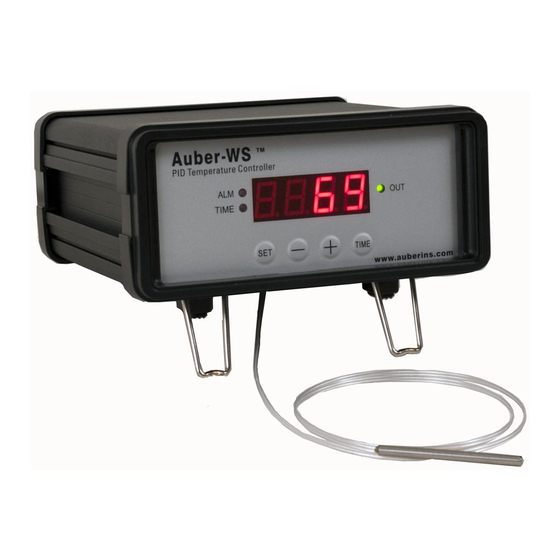

Programmable PID Temperature Controller with Dual Probe
Introduction
Thank you for purchasing the Auber WS series temperature controller. We sincerely
appreciate your decision and trust that our machine will meet your expectations in both
the quality of the result and the value of our product. While we are delighted that you may
be anxious to operate the controller for your project, a few minutes of your time reading
through this manual will only serve to enhance your experience in the months and years
ahead. In particular, we urge you to read through the safety warnings below. Although
this plug-and-play controller is very easy to operate, the process involves high
temperature and high wattage appliances and your safety is paramount.
• This controller is designed only to be used with devices that have limited power
and their own thermal cut off protection, such as a thermostat or thermal fuse in
case of controller failure.
• Do not place any objects on the top of the controller surface as it is used to vent
excess heat during its operation.
• The maximum electric current this controller can handle is 13 ampere. For 120
volt AC in US and Canada, this limits the heater power to 1450 watts.
• Always place the sensor in the controlled subject when the controller is on. Before
turning on the controller, please make sure the sensor is placed inside the
container to be controlled. Leaving the sensor outside of the solution will form an
open loop operation, and the controller will assume the temperature is low even if
the controlled subject is already very hot. The controller will provide full power to
the heater which will not only overheat the controller, but also damage your
appliance possibly causing a fire.
• This controller is designed to control the devices recommended by Auber
Instruments only. Using it to control a non-recommended device can be
Patent pending
*
Quick Guide for WSD-1200H
Version 1.0 (Feb, 2023)
Auber Instruments
5755 North Point Parkway, Suite 99
Alpharetta, GA 30022
www.auberins.com
SAFETY WARNINGS
1
*
Advertisement
Related Manuals for Auber Instruments WSD-1200H
Summary of Contents for Auber Instruments WSD-1200H
- Page 1 Quick Guide for WSD-1200H Programmable PID Temperature Controller with Dual Probe Version 1.0 (Feb, 2023) Auber Instruments 5755 North Point Parkway, Suite 99 Alpharetta, GA 30022 www.auberins.com Introduction Thank you for purchasing the Auber WS series temperature controller. We sincerely appreciate your decision and trust that our machine will meet your expectations in both the quality of the result and the value of our product.
- Page 2 Auber Instruments is not liable for damages caused by misuse of the controller. If you are not sure the controller can be used, please contact Auber Instruments before use. • If an abnormal display or noise is observed, turn the controller off, unplug the power cord and contact the manufacturer before using it again.
- Page 3 5) Timer status indicator - When lit, right window shows the time passed since power up. When it is off, right window shows the current temperature detected by the probe 2. 6) SET Key - For showing current temperature settings, entering parameters setting mode and confirming various actions taken.
-
Page 4: Smoke Generator
the back of the controller. The tips of the probes are dropped into the damper hole. Place a piece of tape on the top of the smoker tower to hold them in place. The tip of probe 1 should be placed close to the food but high enough so that it does not touch the food. (See Figure 3). - Page 5 1) Connection for Bradley Original Smoker, with control of the smoker generator. a) Connecting the controller to the power outlet, you should use the power cord that came with the Bradley Smoker for connecting the smoker generator to the power outlet. b) Connecting the controller to the smoker generator.
- Page 6 c) Connecting the controller output to the Bradley Smoker Tower with the power cord that came with the Auber Controller To Power Outlet Cable B Cable A Smoke Smoker Tower Auber Generator Controller Probe 2: Probe 1: Internal Temp Cabinet Temp Figure 5.
- Page 7 Figure 7. Connection between the controller and smoker 2) Connection for Bradley Digital/Smart Smoker. For the Bradley Digital Smoker, both controller and smoker generator should be connected directly to the wall outlet. Connect the controller output with the smoker tower. To Power Outlet To Power Outlet Cable B...
- Page 8 3. Programming the smoking temperature profile. A total of 6 steps can be programmed with this controller. Each step contains the set temperature (C-X) and an ending criteria setting (E-X), where “X” is the step number (e.g. Step 4 temperature is represented by C-4 and step 4 ending criterion is represented by E-4).
- Page 9 temperature reaches 160 °F, the controller will shut off the heater, flashing END on both windows, and turn on the beeping alarm to notify you that cooking is finished. Table 1. Initial program setting Step # Temp (F) Step # F or T Step # value...
- Page 10 a) The smoker and controller location. The smoker should not be placed directly in the sun. Direct sun light can heat the smoker to above 140 °F in the summer time, making controlling the temperature at 140 °F impossible. This is especially the problem for the Bradley Original Smoker because of its black color.
- Page 11 determine which steps to turn on the smoker generator. The smoker generator will stay on only for the step it is programmed. It will turns off when program goes to the next step. e.g. When R1=2, and R2=4, the smoker generator will be on during step 2 and 4. R1=0 or R2=0 means that R1 or R2 will not do anything to the smoker.
- Page 12 For details on how to use code 188 to access these parameters, please read section 7 of the main manual. 9. Save and recall recipes This controller can save up to 8 pieces of smoking recipe (programs). Each recipe file can have up to 6 steps (C-1 to C-6).
- Page 13 steps in this mode. To enter the single-step mode, the user need to set the parameter “PrG” to “off”. Under the normal operating mode, press and hold SET key for 2 seconds until LED display “LCK” on the left window, and then release the SET key. The display on the right window will show “0”.
- Page 14 Copyright © 2023 Auber Instruments Inc. All rights reserved. No part of this datasheet shall be copied, reproduced, or transmitted in any way without the prior, written consent of Auber Instruments. Auber Instruments retains the exclusive rights to all information included in this document.
