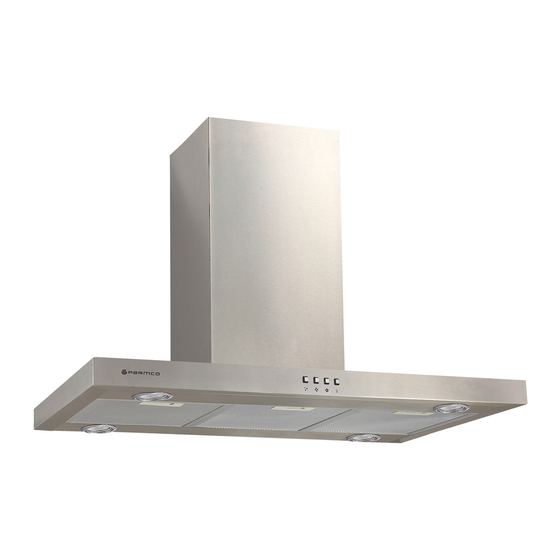

- Page 1 Installation and Operating Instructions Models: T4-12LOW-9IS-1 As part of Parmco Appliances commitment to improving and updating product ranges, we reserve the right to alter, change and update technical specifications and appearance attributes of all Parmco Appliances products. E&OE. 727626112016...
- Page 2 • Normal or scheduled maintenance including blocked filters or ducting. Please retain this Warranty card together with receipt or other proof of • Consumable items such as light bulbs. purchase date when seeking service during the warranty period • Any damage to hobs caused by spills when cooking. • Any breakage or damage of glass items. • Any damage caused by non recommended product used for cleaning, Please contact Parmco at 09 573 5678 if your maintaining, lubricating or similar. appliance needs servicing under warranty. Please • Any aspect relating to the installation of the product, or damage caused have your model number and proof of purchase ready. during installation including blocked access for repair. Warranty repairs must be authorized by Parmco. • Any third party (including reseller) or consequential loss or damage (direct or indirect) however arising. Subject to updates without prior notice, please visit www.parmco.co.nz for E & O.E. 727626092016 the latest version.
- Page 3 Dear Valued Customer, Thank you and congratulations on purchasing your new Parmco appliance. All Parmco products are made to the highest quality and design standards. We are sure you will enjoy your new appliance. As a note, please read through these instructions carefully. These will assist you in gaining a complete understanding of the functions and features o ered by your appliance.
-
Page 4: Table Of Contents
INDEX Content Page Important Safety Information Safety Information Use and Care Installation Maintenance... -
Page 5: Important Safety Information
Please check that the brackets and screws are not discarded with the packaging. • This canopy must be installed by a qualified professional. • Parmco is not liable for any damages or injuries caused as a result of not following the installation instructions in this manual. -
Page 6: Safety Information
SAFETY INFORMATION • This appliance is designed for non-commercial, household use only and must not be altered in any way. • This appliance can only be used safely when it is correctly connected to an efficient earthing system in compliance with New Zealand Electrical Standards requirements. -
Page 7: Use And Care
USE AND CARE Instructions of USE Electronic Buttons 1. Push button “low”, the back light comes on, the buzzer will sound once and the motor runs at low speed. Push it again and the motor will stop. 2. Push button “mid”, the back light comes on, the buzzer will sound once and the motor runs at medium speed. -
Page 8: Installation
INSTALLATION 1. The ceiling must be able to bear at least 120kgs ≧30MM, drill 1*170mm round hole in the ceiling. weight, and the thickness of the ceiling must be 2. Put hanging plate against ceiling and drill 12 holes, see pic 1, 12pcs of ST6*40mm big flat screws will be used to fix the hanging plate on the ceiling, and then 8pcs of M4*10 screws and M4 nut with washer will be used to connect the angle iron into... - Page 9 6. Hold up the hood, 16pcs M4*10 big flat screws will be used to connect the hood body into angle iron, see pic 6. 7. Put the extendible pipe on the outlet; after ensuring correct installation, pull down the external chimney, see pic 7& 8. Pic 6 Pic 7 Pic 8...
- Page 10 When the canopy is located above a gas appliance, the minimum distance from the top of the cooking surface should be at least 75cm and comply with the relevant New Zealand standards. When the canopy is located above an electric cooking surface the minimum distance from the top of the cooking surface should be at least 65cm and comply with the relevant New Zealand standards.
-
Page 11: Maintenance
MAINTENANCE Cleaning of the Mesh Grease Filter The filter mesh is made of high-density aluminium and stainless steel. Please do not use corrosive detergents on it. If using a dishwasher to clean filters, please ensure that a non-caustic detergent is used. Keeping this filter clean will keep the appliance running correctly. - Page 12 Replacing LED lights Warning: The rangehood must be disconnected prior to this procedure being carried out. To replace the light, remove the filters, and push the light downwards, and unplug the wiring connector.
