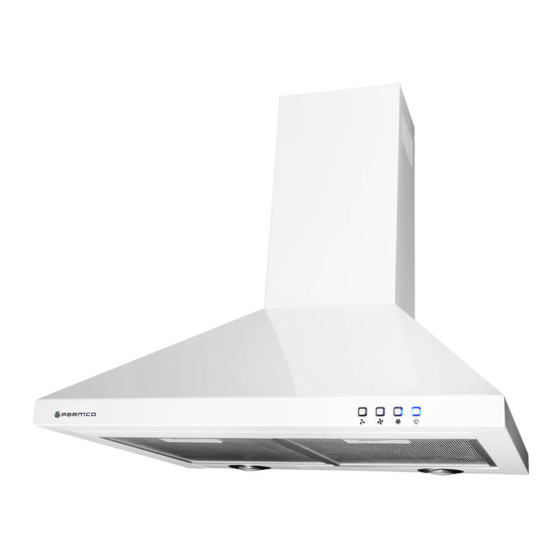

Parmco RCAN-6S-1000L Installation And Operating Instructions Manual
Hide thumbs
Also See for RCAN-6S-1000L:
- Installation and operating instructions manual (15 pages) ,
- Installation and operating instructions manual (18 pages)
Advertisement
Quick Links
Models:
RCAN-6S-500L
RCAN-6W-500L
RCAN-9S-500L
RCAN-6S-1000L
RCAN-9S-1000L
RCAN-6W-1000L
RCAN-9W-1000L
RBOX-6S-1000L
RBOX-9S-1000L
RLCD-9G-1000L
RLOW-9S-1000L
T4-11GLA-6L
T4-11GLA-9L
T4-12LOW-6L
T4-12LOW-9L
As part of Parmco Appliances commitment to improving and updating product ranges,
we reserve the right to alter, change and update technical specifications and appearance
attributes of all Parmco Appliances products. E&OE.
Installation
and Operating
Instructions
727626072017
Advertisement
Related Manuals for Parmco RCAN-6S-1000L
Summary of Contents for Parmco RCAN-6S-1000L
- Page 1 RBOX-9S-1000L RLCD-9G-1000L RLOW-9S-1000L T4-11GLA-6L T4-11GLA-9L T4-12LOW-6L T4-12LOW-9L As part of Parmco Appliances commitment to improving and updating product ranges, we reserve the right to alter, change and update technical specifications and appearance attributes of all Parmco Appliances products. E&OE. 727626072017...
- Page 2 • Normal or scheduled maintenance including blocked filters or ducting. Please retain this Warranty card together with receipt or other proof of purchase date when seeking service during the warranty period • Consumable items such as light bulbs. • Any damage to hobs caused by spills when cooking. • Any breakage or damage of glass items. • Any damage caused by non recommended product used for cleaning, Please contact Parmco at 09 573 5678 if your maintaining, lubricating or similar. appliance needs servicing under warranty. Please • Any aspect relating to the installation of the product, or damage caused have your model number and proof of purchase ready. during installation including blocked access for repair. Warranty repairs must be authorized by Parmco. • Any third party (including reseller) or consequential loss or damage (direct or indirect) however arising. Subject to updates without prior notice, please visit www.parmco.co.nz for E & O.E. 727626032017 the latest version.
- Page 3 Dear Valued Customer, Thank you and congratulations on purchasing your new Parmco appliance. All Parmco products are made to the highest quality and design standards. We are sure you will enjoy your new appliance. As a note, please read through these instructions carefully. These will assist you in gaining a complete understanding of the functions and features o ered by your appliance.
-
Page 4: Table Of Contents
INDEX Content Page Important Safety Information Safety Information Features Use and Care Installation Maintenance... -
Page 5: Important Safety Information
Please check that the brackets and screws are not discarded with the packaging. This canopy must be installed by a qualified professional. Parmco is not liable for any damages or injuries caused as a result of not following the installation instructions in this manual. -
Page 6: Safety Information
SAFETY INFORMATION This appliance is designed for non-commercial, household use only and must not be altered in any way. This appliance can only be used safely when it is correctly connected to an efficient earthing system in compliance with New Zealand Electrical Standards requirements. ... -
Page 7: Use And Care
USE AND CARE For models with Electronic Buttons 1. Push button “low”, the back light comes on, the buzzer will sound once and the motor runs at low speed. Push it again and the motor will stop. 2. Push button “mid”, the back light comes on, the buzzer will sound once and the motor runs at medium speed. - Page 8 For models with LCD Touch Controls 1. Turn on the power. The backlight will light up, displaying the time. The backlight will turn off automatically if there is no activity within 30 seconds. 2. Press “light” once to turn on the light. The “light” icon will display on the LCD screen. Press the “light”...
-
Page 9: Installation
INSTALLATION Models without Glass: Step 1: The canopy should be placed at a minimum distance of 65cm above the cooking surface when placed above an electric hob and a minimum of 65cm above the cooking surface when placed above a gas cooktop. (Refer Pic 1). Step 2: To install, drill 3 holes of Ø8mm along a level line at the desired height. - Page 10 NOTE: If retrofitting these units into an existing building it may be necessary to remove part of the scotia where the chimney cover meets the ceiling. Models with Glass: Step 1: The canopy should be placed at a minimum distance of 65cm above the cooking surface when placed above an electric hob and a minimum of 65cm above the cooking surface when placed above a gas cooktop.
- Page 11 NOTE: If retrofitting these units into an existing building it may be necessary to remove part of the scotia where the chimney cover meets the ceiling. Installation of kitchen ventilation over electrical and gas cooktops must be undertaken in full accordance and reference to the relevant New Zealand building standards. Before installation, please ensure the area is clean to avoid remaining bits of broken wood and dust being sucked into the unit.
- Page 12 When the canopy is located above a gas appliance, the minimum distance from the top of the cooking surface should be at least 75cm and comply with the relevant New Zealand standards. When the canopy is located above an electric cooking surface the minimum distance from the top of the cooking surface should be at least 65cm and comply with the relevant New Zealand standards.
-
Page 13: Maintenance
MAINTENANCE Cleaning of the Mesh Grease Filter The filter mesh is made of high-density aluminium and stainless steel. Please do not use corrosive detergents on it. If using a dishwasher to clean filters, please ensure that a non- caustic detergent is used. Keeping this filter clean will keep the appliance running correctly. Cleaning Method Method 1: Put the mesh into 40-50 C clean soapy water. - Page 14 Remove the filter, unplug the wiring connector and take out the bulb by pushing the light downwards. Technical Data 1000m /h models Model RBOX-6S-1000L, RBOX-9S-1000L, RCAN-6S-1000L, RCAN-9S-1000L, RCAN-6W-1000L, RCAN-9W-1000L, T4-11GLA-6L, T4-11GLA-9L, T4-12LOW-6L, T4-12LOW-9L, RLCD-9G-1000L, RLOW-9S-1000L Rated voltage 220-240V 50Hz Lighting power ≤...
- Page 15 Troubleshooting Tips If any problem occurs, please remove the plug from the socket and contact Parmco service department at 09 573 5678. Problem Solution Change the bulb Lights don't work, but motor works Call Parmco service department Restart the motor...
