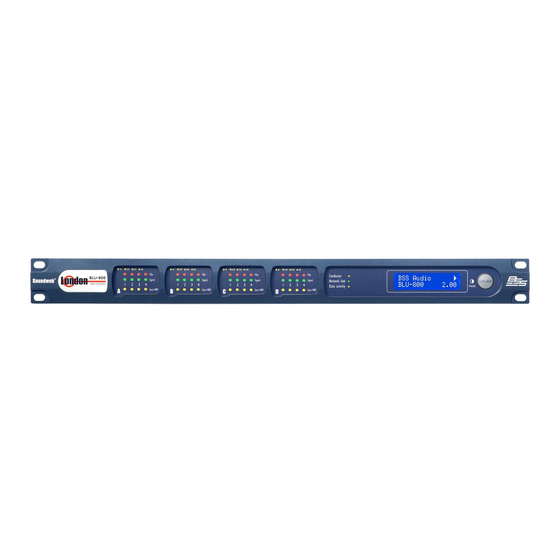

  • Page 1 Soundweb London BLU-800/BLU-805/BLU-806/BLU-806DA/BLU-320/ BLU-325/BLU-326/BLU-326DA/BLU-160/BLU-120 Installation Guide 5086087-A...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS WARNING FOR YOUR PROTECTION READ THE FOLLOWING: READ THESE INSTRUCTIONS. KEEP THESE INSTRUCTIONS. HEED ALL WARNINGS. FOLLOW ALL INSTRUCTIONS. The symbols shown above are internationally accepted symbols that warn of potential hazards with electrical products. The lightning flash with DO NOT USE THIS APPARATUS NEAR WATER.
  • Page 3 EN 55022:2010 EN 55024:2010 WARNING: THIS APPLIANCE SHALL BE CONNECTED TO A MAINS SOCKET OUTLET WITH A PROTECTIVE FCC Part 15 Harman Professional Inc. EARTHING CONNECTION. 10653 S. River Front Parkway, Suite 300 Supplementary Information: South Jordan, Utah 84095, USA...
  • Page 4 CONSIGNES DE SÉCURITÉ IMPORTANTES AVERTISSEMENT POUR VOTRE SÉCURITÉ LIRE ATTENTIVEMENT : LIRE CES CONSIGNES. CONSERVER CES CONSIGNES. RESPECTER TOUS LES AVERTISSEMENTS. SUIVRE TOUTES LES CONSIGNES. Les symboles illustrés ci-dessus sont des symboles acceptés NE PAS UTILISER CET APPAREIL PRÈS DE L’EAU. internationalement qui avertissent des dangers potentiels relatifs à...
  • Page 5 CEI/IEC 60065:2001 + Amd 1 et 2 NOTICE ADRESSÉE AUX CONSOMMATEURS ÉQUIPÉS D’UN MATÉRIEL AVEC CORDON D’ALIMENTATION CEM : EN 55022:2010 Harman Professional Inc FOURNI. EN 55024:2010 10653 S. River Front Parkway, Suite 300 Partie 15 des FCC South Jordan, Utah 84095, ÉTATS-UNIS Tél.
  • Page 6: Table Of Contents

    Table of Contents Product Registration/Warranty ��������������������������������������������������������������������������������������� 1 Mechanical Installation ��������������������������������������������������������������������������������������������������� 1 Front Panel ��������������������������������������������������������������������������������������������������������������������� 2 Input Card Monitoring ��������������������������������������������������������������������������������������������������������������������������������� 2 Clip �������������������������������������������������������������������������������������������������������������������������������������������������������������� 2 Signal ����������������������������������������������������������������������������������������������������������������������������������������������������������� 2 Sync/48V ����������������������������������������������������������������������������������������������������������������������������������������������������� 2 Conductor [BLU-800/BLU-320/BLU160/BLU-120] Master [BLU-805/BLU-806 (DA)/BLU-325/BLU-326 (DA)] �������������������������������������������������������������������������� 2 Network Link ����������������������������������������������������������������������������������������������������������������������������������������������� 2 Data Activity ������������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 7: Product Registration/Warranty

    Product Registration/Warranty To register your product, please visit http://bssaudio�com/en-US/support/warranty_registration� For warranty information, please visit http://bssaudio�com/en-US/support/warranty_policy� Mechanical Installation CAUTION: TO REDUCE THE RISK BLU link OF FIRE REPLACE ONLY WITH THE SAME TYPE AND RATING OF FUSE T1.6AH - 250V FUSE CobraNet AVIS: UTILISER UN FUSIBLE DE...
  • Page 8: Front Panel

    Front Panel Input Card Monitoring Each channel has 3 LED indicators showing: • Clip Illuminated–Indicates clipping in the analogue domain for each channel of the fitted Input or Output card. The LED will illuminate at +18.5dB. • Signal Illuminated–The Signal LED will illuminate for each channel of a fitted Input or Output card when the signal reaches or exceeds the signal threshold of -20dB�...
  • Page 9: Rear Panel

    Rear Panel CAUTION: TO REDUCE THE RISK BLU link OF FIRE REPLACE ONLY WITH THE SAME TYPE AND RATING OF FUSE T1.6AH - 250V FUSE CobraNet AVIS: UTILISER UN FUSIBLE DE PRIMARY SECONDARY RECHANGE DE MEME TYPE 100-240V ~ 50/60Hz, 55W THIS EQUIPMENT MUST BE EARTHED WORD CLOCK LOCATE...
  • Page 10: Locate

    from the last device to the IN port of the first device in the chain. DO NOT connect BLU link ports to a hub, network switch, or router. All devices connected in the BLU link ring/chain must be configured for the same audio sample rate�...
  • Page 11: I/O Card Positions A, B, C & D

    I/O Card Positions A, B, C & D These connectors provide the balanced connections for the I/O card fitted in the four card slots in a Soundweb London device� The analogue connections are balanced, on Phoenix/Combicon connectors� A green LED next to the slot assignment letter A, B, C or D indicates that an Input card is fitted and an amber LED when an output card is fitted.
  • Page 12: Logic Outputs

    Logic Outputs There are 6 logic outputs, also known as “General Purpose Outputs” or “GPO”. They are used to control LED’s or relays. The logic output can source 10mA at 5V DC, or sink 60mA up to 50V DC� A high sensitivity relay (such as a reed relay) can be driven by connecting multiple logic outputs in parallel�...
  • Page 13: Technical Specifications

    Technical Specifications FRONT PANEL LED INDICATORS INPUT/OUTPUT: Per Input: Signal Present, CLIP, SYNC/48V, I/O card type [IN, OUT, DIG, AEC[BLU-800, BLU-805, BLU-806 (DA), BLU-320, BLU-326 (DA), BLU-325, BLU-160, BLU-120] OTHER: LCD Display, Conductor active, Net Link active, Data Activity ANALOGUE INPUTS CONNECTORS: Up to 16 electronically balanced on Phoenix/Combicon removable screw connectors MIC/LINE INPUTS:...
  • Page 14 ANALOGUE OUTPUTS CONNECTORS: Up to 16 electronically balanced on Phoenix/Combicon removable screw connectors OUTPUT IMPEDANCE: 40 Ohms balanced, 20 Ohms unbalanced MAXIMUM OUTPUT LEVEL: +19dBu FREQUENCY RESPONSE: 20Hz to 20kHz [+0.5/-1dB] THD: <0.01% [20Hz to 20kHz, +10dBu output] DYNAMIC RANGE: 108dB typ�...
  • Page 15 POWER/TEMPERATURE MAINS VOLTAGE: 100-240V AC, 50/60Hz POWER CONSUMPTION: <35VA [BLU-80, 32, 16]; <55VA [BLU-800, 805, 806 (DA), 320, 325, 326 (DA), 160, 120] BTU RATING: <120 BTU/hr [BLU-80, 32, 16]; <188 BTU/hr [BLU-800, 805, 806 (DA), 320, 325, 326 (DA), 160, 120] OPERATING TEMPERATURE RANGE: 0º...
  • Page 16 Phone: (801) 566-8800 Website: bssaudio.com Support: bssaudio.com/en-US/support BSS Audio is a registered trademark of HARMAN © 2017 HARMAN All rights reserved Printed in Malaysia...
