Supplement page for MNFP54LW23

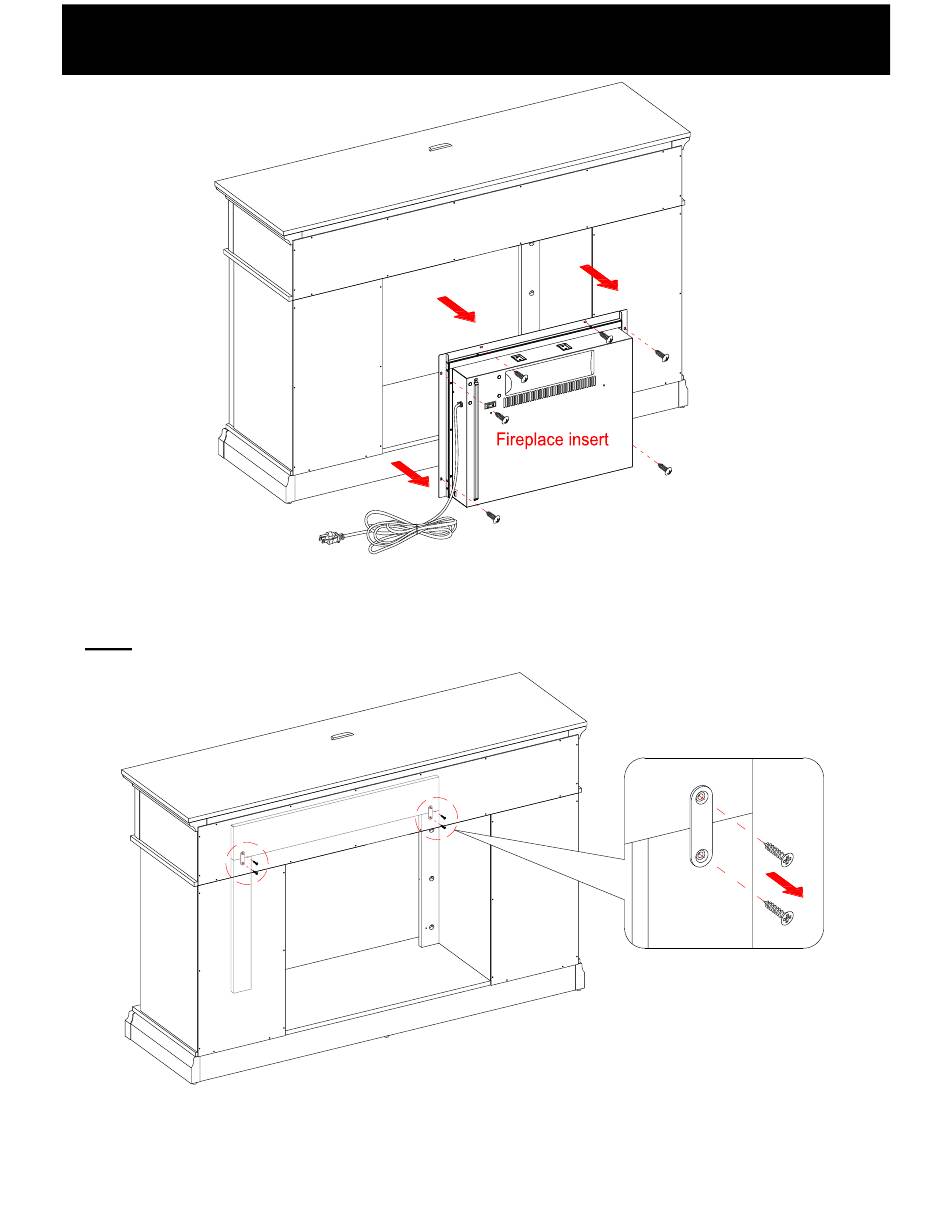

1. Unscrew the assembled screws to take out the fireplace insert. Make sure you place the Screws at the proper
position for future use.
Note
: DO NOT drag the insert across the Bottom Panel as it may scratch the unit.
2. Unscrew the assembled screws to take out the Metal Brackets. Make sure you place the Screws and Metal
Brackets at the proper position for future use.
1

Advertisement

loading

Related Manuals for Whalen MNFP54LW23

Summary of Contents for Whalen MNFP54LW23

  • Page 1 Supplement page for MNFP54LW23 1. Unscrew the assembled screws to take out the fireplace insert. Make sure you place the Screws at the proper position for future use. Note : DO NOT drag the insert across the Bottom Panel as it may scratch the unit.

  • Page 2: Dismantling Instructions

    Dismantling Instructions 3. Unscrew the assembled screws to take out the Lower Back Panels. Make sure you place the Screws at the proper position for future use. 4. Take out the adjustable Shelves.
  • Page 3 Dismantling Instructions 5. Ask for assistance to lay down the unit at its back edges. 6. Unscrew the assembled screws to take out the Base. Make sure you place the Screws at the proper position for future use. 7. Unscrew the assembled Cam Locks to take out the Base. Make sure you place the Cam Locks at the proper position for future use.
  • Page 4 Dismantling Instructions 8. Take out the Base. 9. Unscrew the assembled Cam Locks to take out the Partition Panel assembly. Make sure you place the Cam Locks at the proper position for future use.
  • Page 5 Dismantling Instructions 10. Unscrew the assembled Cam Locks to take out the Middle Crossbar. Make sure you place the Cam Locks at the proper position for future use. 11. Unscrew the assembled Cam Locks to take out the Middle Stiles. Make sure you place the Cam Locks at the proper position for future use.
  • Page 7 Reassembly Instructions 1. Attach the Left Middle Stile (M) to the Left Lower Partition Panel (E) by engaging three Cam Locks (1). 2. Attach the Right Middle Stile (N) to the Right Lower Partition Panel (F) by engaging three Cam Locks (1).
  • Page 8 Reassembly Instructions 3. Attach the Middle Crossbar (L) between the Lower Partition Panels (E and F) by engaging two Cam Locks (1). 4. Attach the Partition Panel assembly to the Center Shelf by engaging the Cam Locks.
  • Page 9 Reassembly Instructions 5. Attach the Base to the Lower Partition Panels and Side Panels with six Screws (7). 6. Tightly screw the Cam Locks.
  • Page 10 Reassembly Instructions 7. Stand the assembled unit upright. 8. Now, go back and tighten all Cam Locks and Screws, make sure that all the parts are tight and there are no gaps between the parts, this will help keep the unit square. 9.
  • Page 11 Reassembly Instructions 11. Lift the fireplace insert carefully into the back of the assembled mantel and center it in the opening. DO NOT drag the insert across the Bottom Panel (C) as it may scratch the unit. 12. Fasten the fireplace insert to the mantel with six insert screws as shown. 13.
