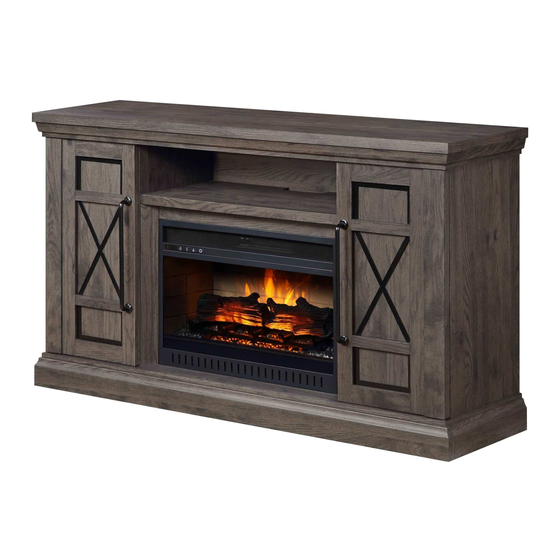

Evanston 60" Fireplace Console
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our website 24 Hours a day, 7 days a week for product assistance at
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
Model # MNFP60ES26GA
# MNFP60ES26CA
ADULT ASSEMBLY REQUIRED
www.whalenfurniture.com
Or e-mail your request to:
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2021-04-20
1-866-942-5362
parts@whalenfurniture.com
Rev. 0001-A
LOT NUMBER:
DATE PURCHASED: /
/
Advertisement
Related Manuals for Whalen Evanston MNFP60ES26GA
Summary of Contents for Whalen Evanston MNFP60ES26GA
- Page 1 LOT NUMBER: DATE PURCHASED: / Evanston 60" Fireplace Console Model # MNFP60ES26GA # MNFP60ES26CA ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our toll-free customer service number and have your instructions and parts list ready to provide the model name, part name or factory number: 1-866-942-5362 Pacific Standard Time: 8:30 a.m.
- Page 2 M A X I M U M R E C O M M E N D E D W E I G H T L O A D S MANUFACTURER: Whalen Furniture Manufacturing CATALOG: Evanston 60" Fireplace Console MODEL # MNFP60ES26GA / MNFP60ES26CA FITS UP TO MOST 177.8 cm (70 in.)
- Page 3 IMPORTANT Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non- abrasive surface. You will need the parts identified on page 4 and 5 of this instruction manual. NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH THE DOWELS. EXCESS GLUE CAN BE WIPED OFF WITH A DAMP CLOTH.
-
Page 4: Parts And Hardware List
Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Top Panel (Qty. 1) B- Fixed Shelf (Qty. 1) C- Bottom Panel (Qty. 1) D- Left Side Panel (Qty. 1) E- Right Side Panel (Qty. - Page 5 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. (1) Cam Lock (2) Cam Bolt (3) M8 x 30 mm Wood Dowel (Qty. 37+1 extra) (Qty. 37+1 extra) (Qty.
- Page 6 Assembly Instructions 1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a carpeted floor or the empty carton to avoid any scratches. 2. Securely screw the Cam Bolts (2) into the designated small holes on the Bottom Panel (C) and the Bottom Moldings (J, K and L) using a Phillips screwdriver.
- Page 7 Assembly Instructions 4. Attach the Bottom Back Stretcher (M) between the Bottom Side Moldings (K and L) by engaging two Cam Locks (1). 5. Attach the Bottom Support (U) to the Bottom Front Molding (J) by engaging one Cam Lock (1).
- Page 8 Assembly Instructions 6. Attach the Bottom Front Molding (J) to Bottom Side Moldings (K and L) by engaging two Cam Locks (1). 7. Attach the Bottom Support (U) to the Bottom Back Stretcher (M) with two 50 mm Screws (8). 8.
- Page 9 Assembly Instructions 9. Securely screw the Cam Bolts (2) into the designated small holes on the Fixed Shelf (B), Bottom Panel (C) and Partition Panels (F and G) using a Phillips screwdriver. NOTE: DO NOT over tighten the cam bolts. 10.
- Page 10 Assembly Instructions 11. Attach the Middle Stiles (I) to the Partition Panels (F and G) respectively with three 25 mm Screws (6) in each. 12. Attach the Middle Crossbar (H) to the Fixed Shelf (B) by engaging three Cam Locks (1).
- Page 11 Assembly Instructions 13. Attach the Fixed Shelf (B) between the Partition Panels (F and G) by engaging four Cam Locks (1). 14. Attach the Partition Panels (F and G) to the Bottom Panel (C) with four 50 mm Screws (8).
- Page 12 Assembly Instructions 15. Attach the Side Panels (D and E) to the Bottom Panel (C) by engaging the Cam Locks (1). 16. Securely screw the Cam Bolts (2) into the designated small holes on the Top Panel (A) using a Phillips screwdriver.
- Page 13 Assembly Instructions 17. Ask for assistance to place Top Panel (A) onto the inserted wood dowels on the vertical panels properly and fasten it in place with the Cam Locks (1). 18. Ask for assistance to lay down the assembled unit at its front edges. 19.
- Page 14 Assembly Instructions 20. Now, go back and tighten all Cam Locks and Screws, make sure that all the parts are tight and there are no gaps between the parts, this will help keep the unit square. 21. Pick up the Middle Back Panel (Q) and align the drilled holes against the upper long edge with the pilot holes on the back stretcher of the Top Panel (A).
- Page 15 Assembly Instructions 24. Stand the assembled unit upright. 25. Pick up one Door (P) and attach the extended hinge arms to the hinge bases installed on the Left Side Panel (D). Loosen the bolt on the back of the hinge base for an easy fit. Align and insert the “U” slot on the hinge arm under the bolt head on the back of the hinge base.
- Page 16 Assembly Instructions 29. Open the Doors (P) and insert four Shelf Supports (13) into the desired holes inside each side compartment. Make sure you place the four shelf supports in the same level so the shelf is not tilted. Rest the adjustable Shelves (N) onto the Shelf Supports (13).
- Page 17 Assembly Instructions 32. Lift the fireplace insert carefully into the back of the assembled mantel and center it in the opening. drag the insert across the Bottom Panel (C) as it may scratch the unit. 33. Use the pilot holes as a guide, fasten two L-shaped Metal Brackets (10) onto the Firebox Support (O) with four 15 mm Pan Head Screws (7).
- Page 18 Assembly Instructions Tools required (not provided): Phillips screwdriver, stud finder, tape measure, pencil, power drill and 1/8’’ drill bit. 37. Ask for assistance to position the assemble fireplace at the desired location against a wall. If necessary, adjust the pre-attached Floor Levelers at the bottom of the Bottom Front Molding (J) to correct the tilting and level the doors.
-
Page 19: Quality Guarantee
Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
