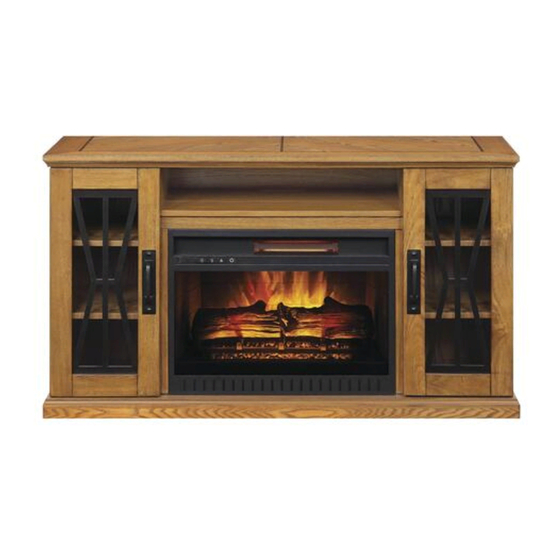

Linwood 48in Fireplace Console
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
Model # MNFP48LW23IO
ADULT ASSEMBLY REQUIRED
1-866-942-5362
www.whalenfurniture.com
Or e-mail your request to parts@whalenfurniture.com
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2020-05-23
OR
Rev. 0001-A
LOT NUMBER:
DATE PURCHASED: /
/
Advertisement
Related Manuals for Whalen Linwood MNFP48LW23IO
Summary of Contents for Whalen Linwood MNFP48LW23IO
- Page 1 LOT NUMBER: DATE PURCHASED: / Linwood 48in Fireplace Console Model # MNFP48LW23IO ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our toll-free customer service number and have your instructions and parts list ready to provide the model name, part name or factory number: 1-866-942-5362 Pacific Standard Time: 8:30 a.m.
- Page 2 IMPORTANT Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-abrasive surface. You will need the parts identified on page 3 and 4 of this instruction manuals. NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH THE DOWELS. EXCESS GLUE CAN BE WIPED OFF WITH A DAMP CLOTH.
-
Page 3: Parts And Hardware List
Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Top Panel (Qty. 1) B- Fixed Shelf (Qty. 1) C- Base (Qty. 1) D- Side Panel (Qty. 2) E- Left Partition Panel (Qty. - Page 4 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. (1) Cam Lock (2) Cam Bolt (3) M8 x 30 mm Wood Dowel (Qty. 20+1 extra) (Qty. 20+1 extra) (Qty.
- Page 5 Assembly Instructions 1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a carpeted floor or the empty carton to avoid any scratch. 2. Securely screw the Cam Bolts (2) into the designated small holes on the Top Panel (A), Base (C) and Partition Panels (E and F) with a Phillips screwdriver.
- Page 6 Assembly Instructions 4. Glue two 20 mm Wood Dowels (7) into the inner holes on each Middle Stile (H). 5. Attach the Middle Stiles (H) to the Partition Panels (E and F) respectively with three 25 mm Screws (6) per stile. 6.
- Page 7 Assembly Instructions 8. Attach the Fixed Shelf (B) between the Partition Panels (E and F) by engaging four Cam Locks (1) (Refer to page 2 on Cam Lock system operation supplement). 9. Using the wood dowels as a guide, firmly press the assembled Partition Panels (E and F) to the Base (C) and fasten them with four Cam Locks (1).
- Page 8 Assembly Instructions 10. Align the large holes on one Side Panel (D) with the inserted wood dowels on the Base (C). Firmly press them together and fasten it in place by engaging two Cam Locks (1). 11. Repeat the same procedure to attach the other Side Panel (D) at the other end. D/E/F 12.
- Page 9 Assembly Instructions 13. Ask for assistance to flip the unit around at its front edge as shown. 14. With the pilot holes as a guide, fasten the Middle Crossbar (N) to the Middle Stiles (H) by attaching two Mending Plates (16) at the joints, using two 12mm Screws (14) per plate. 15.
- Page 10 Assembly Instructions 17. Ask for assistance to lift the assembly unit upright and position it near the final installation location. 18. Pick up one Door (K) and attach the extended hinge arms to the hinge bases installed on the one Side Panel (D).
- Page 11 Assembly Instructions 22. Insert sixteen Shelf Supports (11) into the holes at the desired height inside each side compartment. Make sure you place four shelf supports in the same level, so the shelf is not tilted. Tilt and rest the Adjustable Shelves (J) onto the Shelf Supports (11) 23.
- Page 12 Assembly Instructions 25. Lift the fireplace insert carefully into the back of the assembled mantel and center it in the opening. DO NOT drag the insert across the Base (C) as it may scratch the unit. 26. Use the pilot hole as a guide, fasten two L-shaped Metal Brackets (8) onto the Firebox Support (I) with four 15mm Pan Head Screws (5) Make sure that the right angle is flush with the short edge of firebox support.
- Page 13 Assembly Instructions Tools required (not provided): Phillips screwdriver, stud finder, tape measure, pencil, power drill and 1/8’’ drill bit. 29. Ask for assistance to position the console at the desired location against a wall. If necessary, adjust the pre-attached floor levelers at the bottom of the Base (C) to correct the tilting and/or level the doors. 30.
-
Page 14: Care And Maintenance
Care and Maintenance ⚫Use a soft, clean cloth that will not scratch the surface when dusting. ⚫Use of furniture polishes is not necessary. Should you choose to use polishes, test first in an inconspicuous area. ⚫Using solvents of any kind on your furniture may damage the finish. ⚫Never use water to clean your furniture as it may cause damage to the finish. -
Page 15: Quality Guarantee
Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
