Whalen SUMCMF-23 User Manual

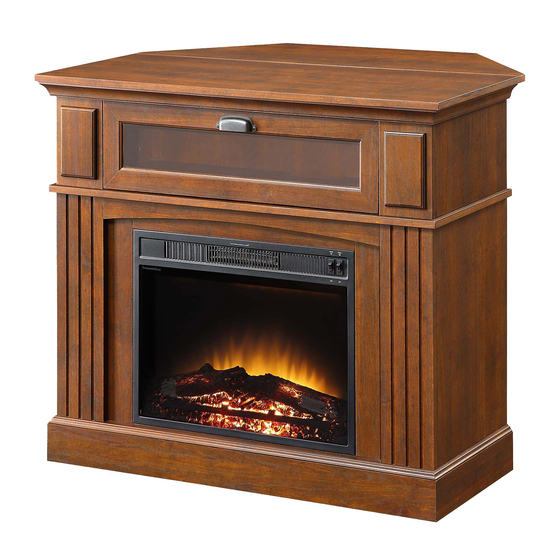

Sumner corner media fireplace
Hide thumbs Also See for SUMCMF-23:

Advertisement

Quick Links

Download this manual
Sumner Corner Media Fireplace
Stock # SUMCMF-23
ADULT ASSEMBLY AND SET-UP REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our customer service number and have your instructions
and parts list ready to provide the model name, part name or factory number:
Or visit our web site 24 hours a day, 7 days a week for product assistance at
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Whalen Furniture Mfg., Inc.
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or e-mail your request to parts@whalenfurniture.com
1-866-942-5362
www.whalenstyle.com
Page 1
LOT NUMBER:
DATE PURCHASED:
Factory No. 16086
/
/

Advertisement

loading

Related Manuals for Whalen SUMCMF-23

Summary of Contents for Whalen SUMCMF-23

  • Page 1 LOT NUMBER: DATE PURCHASED: Sumner Corner Media Fireplace Stock # SUMCMF-23 ADULT ASSEMBLY AND SET-UP REQUIRED If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our customer service number and have your instructions...
  • Page 2 Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
  • Page 3 Stock # SUMCMF-23 Important Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non- abrasive surface. You will need the parts identified on page 4 and 5 of this instruction manual.
  • Page 4 Stock # SUMCMF-23 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Top Panel (1) B- Center Shelf (1) C- Bottom Panel (1) D- Front Bottom Molding (1)
  • Page 5 Stock # SUMCMF-23 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. (1) Cam Lock (2) Cam Bolt (3) M8 x 30 mm Wood Dowel (4) M8 x 20 mm Wood Dowel...

  • Page 6: Assembly Instructions

    Stock # SUMCMF-23 Assembly Instructions Cam Bolt (22 used in this step) ② 1. Unpack the unit and confirm that you have all the hardware and required parts listed. Assembly the unit on a carpeted floor or the empty carton to avoid any scratch.
  • Page 7 Stock # SUMCMF-23 Assembly Instructions Cam Bolt (10 used in this step) ② 3. Secure screw the Cam Bolts (2) into the designated small holes on the Left and Right Front Panels (G and I) and Lower Side Panels (F and H), as shown in the illustration.
  • Page 8 Stock # SUMCMF-23 Assembly Instructions Cam Lock (4 used in this step) ① M8 x 30 mm Wood Dowel (4 used in this step) ③ 4. Insert two M8 x 30 mm Wood Dowels (3) into the inner holes of the Left Lower Side Panel (F). Tap in with a rubber mallet, if necessary.
  • Page 9 Stock # SUMCMF-23 Assembly Instructions Cam Lock M8 x 30 mm Wood Dowel (2 used in this step) (2 used in this step) ① ③ 7. Align and attach the Center Front Molding (J) to the Center Shelf (B) by using two M8 x 30 mm Wood Dowels (3) and two Cam Locks (1).
  • Page 10 Stock # SUMCMF-23 Assembly Instructions M8 x 30 mm Wood Dowel Cam Lock (4 used in this step) (6 used in this step) ① ③ 8. Align and attach the Back Bottom Stretcher (E) to the Bottom Panel (C) by using two M8 x 30 mm Wood Dowels (3) and three Cam Locks (1).
  • Page 11 Stock # SUMCMF-23 Assembly Instructions Cam Lock M8 x 30 mm Wood Dowel (6 used in this step) (6 used in this step) ① ③ 10. Insert six M8 x 30 mm Wood Dowels (3) into the drilled holes of the assembled base at both ends.
  • Page 12 Stock # SUMCMF-23 Assembly Instructions #8 x 1-1/2” Wood Screw (4 used in this step) ⑤ 13. Insert four 1-1/2” Wood Screws (5) through the drilled holes on the Bottom Panel (C) and securely screw into the Front Panels (G and I) by a Phillips screwdriver, as shown above.
  • Page 13 Stock # SUMCMF-23 Assembly Instructions Angle Metal Bracket 5/8” Flat Head Screw (2 used in this step) (8 used in this step) ⑫ ⑦ 14. With the pilot holes as a guide, align and attach two Angle Metal Brackets (12) to the front corners of the assembled base, using four 5/8”...
  • Page 14 Stock # SUMCMF-23 Assembly Instructions Floor Leveler (2 used in this step) ⑬ 15. Screw two Floor Levelers (13) into the threaded sockets on the Angle Metal Brackets (12). Please call for replacement parts or assistance: 1-866-942-5362 Whalen Furniture Mfg., Inc.
  • Page 15 Stock # SUMCMF-23 Assembly Instructions Cam Lock M8 x 30 mm Wood Dowel (8 used in this step) (6 used in this step) ③ ① 16. Stand last assembly upright. 17. Insert six M8 x 30 mm Wood Dowels (3) into the inner holes on the top of the assembled unit.
  • Page 16 Stock # SUMCMF-23 Assembly Instructions 5/8” Flat Head Screw (4 used in this step) ⑦ Straight Metal Bracket (2 used in this step) ⑪ 19. With the pilot holes as a guide, fasten the Center Front Molding (J) to the Front Panels (G and I) by attaching two Metal Brackets (11) at the joints, using two 5/8”...
  • Page 17 Stock # SUMCMF-23 Assembly Instructions Cam Bolt (6 used in this step) ② 20. Securely screw six Cam Bolts (2) into the designated small holes on the Center Shelf (B). As shown above. Please call for replacement parts or assistance: 1-866-942-5362 Whalen Furniture Mfg., Inc.
  • Page 18 Stock # SUMCMF-23 Assembly Instructions Cam Lock (4 used in this step) ① Cam Bolt (4 used in this step) ② M8 x 30 mm Wood Dowel (2 used in this step) ③ 21. Secure screw two Cam Bolts (2) into the designated small holes on one Upper Front Panel (R), as shown.
  • Page 19 Stock # SUMCMF-23 Assembly Instructions M8 x 30 mm Wood Dowel Cam Lock (6 used in this step) (6 used in this step) ③ ① 24. Insert six M8 x 30 mm Wood Dowels (3) into the drilled holes on the Center Shelf (B). Fasten the Upper Side Panel assemblies onto the Center Shelf (B) by engaging six Cam Locks (1).
  • Page 20 Stock # SUMCMF-23 Assembly Instructions M8 x 30 mm Wood Dowel Cam Lock (6 used in this step) (6 used in this step) ③ ① 25. Align and attach the Top Panel (A) onto the assembled Upper Support Panels (K and R) with six Wood Dowels (3) and six Cam Locks (1).
  • Page 21 Stock # SUMCMF-23 Assembly Instructions 5/8” Washer Head Screw (16 used in this step) ⑧ 26. Now, go back and securely tighten all the Cam Locks and screws. Make sure that all the parts are tight and there are no gaps between the pieces. This will help keep the unit square.
  • Page 22 Stock # SUMCMF-23 Assembly Instructions Fireplace 28. Unpack the fireplace insert from the inner box and follow the instructions to install the Top Trim and Side Trims to the fireplace insert. 29. Lift the fireplace insert carefully into the back of the assembled mantel and center it in the opening.
  • Page 23 Stock # SUMCMF-23 Assembly Instructions 2” Lag Bolt (4 used in this step) ⑩ 30. Align and attach two Firebox Supports (Q) to the Bottom Panel (C) by inserting the 2” Lag Bolts (10) into the countersunk holes of the Firebox Supports and securely screw into place. As shown above.
  • Page 24 Stock # SUMCMF-23 Assembly Instructions 1/2” Bolt (2 used in this step) ⑨ #8 x 3/4” Screw M8 x 20 mm Wood Dowel Plastic Connector (3 used in this step) (2 used in this step) (2 used in this step) ⑥...
  • Page 25 Stock # SUMCMF-23 Assembly Instructions 1/2” Bolt Plastic Connector (3 used in this step) (3 used in this step) ⑭ ⑨ 33. Align and fasten three Plastic Connectors (14) to the Top Corner Extension (N) with the 1/2” Bolts (9). As shown above.
  • Page 26 Stock # SUMCMF-23 Assembly Instructions 1/2” Bolt (1 used in this step) ⑨ 34. Align and attach the Corner Long Support (O) to the Top Corner Extension (N) by inserting one 1/2” Bolt (9) throuth the Plastic Connector (14) and screw into the threaded inserts on the Top Corner Extension.
  • Page 27 Stock # SUMCMF-23 Assembly Instructions 1/2” Bolt M8 x 30 mm Wood Dowel (4 used in this step) (4 used in this step) ③ ⑨ 35. Insert four M8 x 30 mm Wood Dowels (3) into the drilled holes on the back edge of the Top Panel (A) as a guide.
  • Page 28 Stock # SUMCMF-23 Assembly Instructions Door Pull 5/8” Small Bolt (1 used in this step) (2 used in this step) ⑮ ⑯ 36. Attach the Door Pull (15) to the front side of the Door (L) with the provided 5/8” Small Bolts (16).
  • Page 29 Stock # SUMCMF-23 Assembly Instructions Acrylic Stopper (1 used in this step) ⑰ NOTE: You must install the Acrylic TV Stopper to prevent the TV from tipping when placing your flat panel television directly on the Top Panel. 38. Remove the tape of the Acrylic Stopper (17) and place it in the cut-out of the acrylic stopper template on the front of the Top Panel (A).
  • Page 30 Stock # SUMCMF-23 Assembly Instructions Tools required: Phillips Screwdriver, Power Drill, 3/8” Drill Bit and Rubber Mallet. 40. Ask for assistance to position the assembled mantel at the desired location against a wall. If necessary, adjust the Floor Levelers (13) under the Mantel Base to level the unit.

  • Page 31: Care And Maintenance

    A Touch-up Pen has been provided to repair any small nicks or scratches that may occur during assembly or shipping. We hope you enjoy your purchase for many years. Thank you for choosing Whalen Furniture! Please call for replacement parts or assistance: 1-866-942-5362 Whalen Furniture Mfg., Inc.
