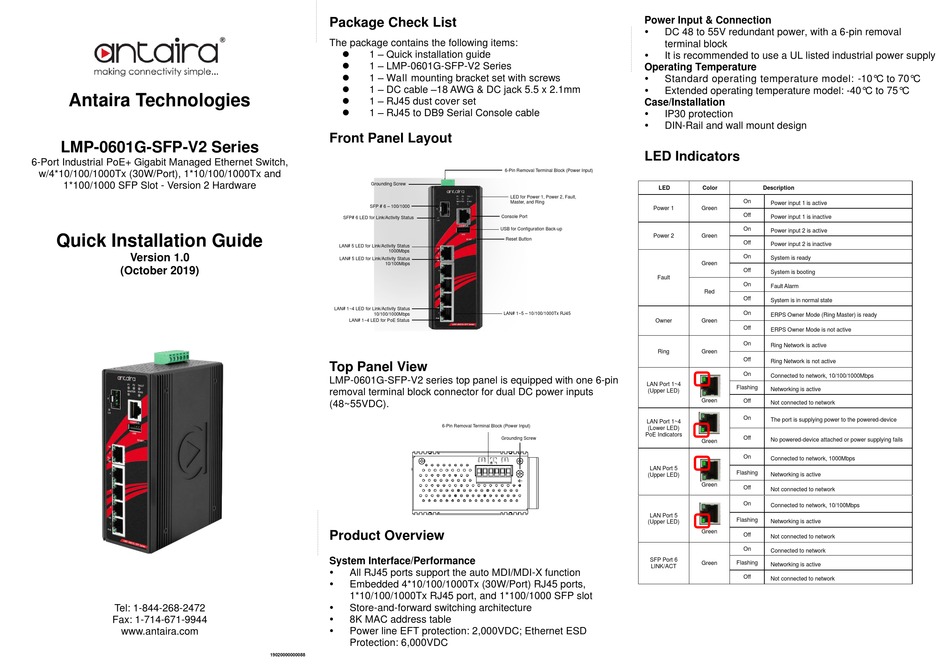

ANTAIRA LMP-0601G-SFP-V2 Series Quick Installation Manual

Antaira Technologies
LMP-0601G-SFP-V2 Series
6-Port Industrial PoE+ Gigabit Managed Ethernet Switch,
w/4*10/100/1000Tx (30W/Port), 1*10/100/1000Tx and
1*100/1000 SFP Slot - Version 2 Hardware
Quick Installation Guide
Version 1.0
(October 2019)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LMP-0601G-SFP-V2 Series
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – RJ45 dust cover set
⚫ 1 – RJ45 to DB9 Serial Console cable
Front Panel Layout
Grounding Screw
SFP # 6 – 100/1000
SFP# 6 LED for Link/Activity Status
LAN# 5 LED for Link/Activity Status
1000Mbps
LAN# 5 LED for Link/Activity Status
10/100Mbps
LAN# 1~4 LED for Link/Activity Status
10/100/1000Mbps
LAN# 1~4 LED for PoE Status
Top Panel View
LMP-0601G-SFP-V2 series top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(48~55VDC).
6-Pin Removal Terminal Block (Power Input)
Product Overview
System Interface/Performance

All RJ45 ports support the auto MDI/MDI-X function

Embedded 4*10/100/1000Tx (30W/Port) RJ45 ports,
1*10/100/1000Tx RJ45 port, and 1*100/1000 SFP slot

Store-and-forward switching architecture

8K MAC address table

Power line EFT protection: 2,000VDC; Ethernet ESD
Protection: 6,000VDC
19020000000088
Power Input & Connection

DC 48 to 55V redundant power, with a 6-pin removal
terminal block

It is recommended to use a UL listed industrial power supply
Operating Temperature

Standard operating temperature model: -10°C to 70°C

Extended operating temperature model: -40°C to 75°C
Case/Installation

IP30 protection

DIN-Rail and wall mount design
LED Indicators
6-Pin Removal Terminal Block (Power Input)
LED
LED for Power 1, Power 2, Fault,
Master, and Ring
Power 1
Console Port
USB for Configuration Back-up
Power 2
Reset Button
Fault
LAN# 1~5 – 10/100/1000Tx RJ45
Owner
Ring
LAN Port 1~4
(Upper LED)
LAN Port 1~4
(Lower LED)
PoE Indicators
Grounding Screw
LAN Port 5
(Upper LED)
LAN Port 5
(Upper LED)
SFP Port 6
LINK/ACT
Color Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
On
System is ready
Green
Off
System is booting
On
Fault Alarm
Red
Off
System is in normal state
On
ERPS Owner Mode (Ring Master) is ready
Green
Off
ERPS Owner Mode is not active
On
Ring Network is active
Green
Off
Ring Network is not active
On
Connected to network, 10/100/1000Mbps
Flashing
Networking is active
Green Off
Not connected to network
On
The port is supplying power to the powered-device
Off
No powered-device attached or power supplying fails
Green
On
Connected to network, 1000Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
Connected to network
Green Flashing
Networking is active
Off
Not connected to network
