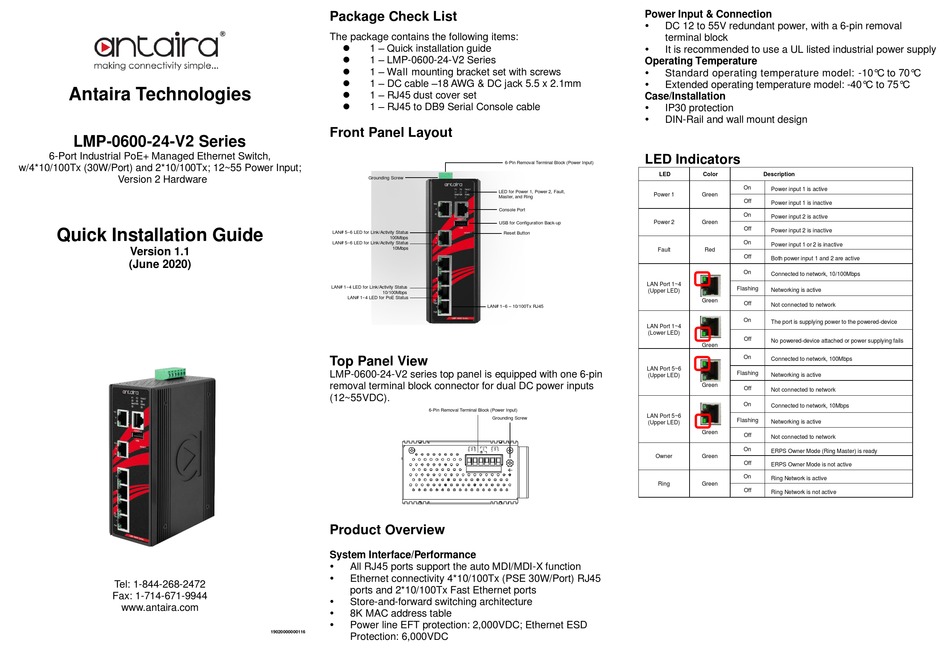

ANTAIRA LMP-0600-24-V2 Series Quick Installation Manual

Antaira Technologies
LMP-0600-24-V2 Series
6-Port Industrial PoE+ Managed Ethernet Switch,
w/4*10/100Tx (30W/Port) and 2*10/100Tx; 12~55 Power Input;
Version 2 Hardware
Quick Installation Guide
Version 1.1
(June 2020)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com

Package Check List

The package contains the following items:
⚫ 1 – Quick installation guide

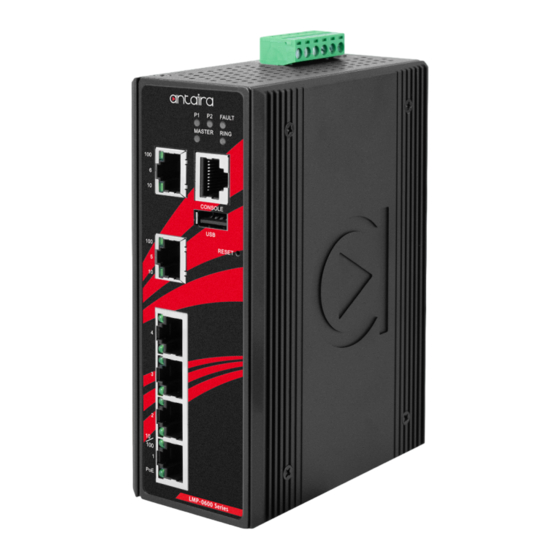

⚫ 1 – LMP-0600-24-V2 Series
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – RJ45 dust cover set
⚫ 1 – RJ45 to DB9 Serial Console cable

Front Panel Layout

Grounding Screw
LAN# 5~6 LED for Link/Activity Status
100Mbps
LAN# 5~6 LED for Link/Activity Status
10Mbps
LAN# 1~4 LED for Link/Activity Status
10/100Mbps
LAN# 1~4 LED for PoE Status

Top Panel View

LMP-0600-24-V2 series top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(12~55VDC).
6-Pin Removal Terminal Block (Power Input)

Product Overview

System Interface/Performance


All RJ45 ports support the auto MDI/MDI-X function

Ethernet connectivity 4*10/100Tx (PSE 30W/Port) RJ45
ports and 2*10/100Tx Fast Ethernet ports

Store-and-forward switching architecture

8K MAC address table

Power line EFT protection: 2,000VDC; Ethernet ESD
19020000000116
Protection: 6,000VDC
Power Input & Connection



Operating Temperature




Case/Installation




LED Indicators

6-Pin Removal Terminal Block (Power Input)
LED
LED for Power 1, Power 2, Fault,
Power 1
Master, and Ring
Console Port
Power 2
USB for Configuration Back-up
Reset Button
Fault
LAN Port 1~4
(Upper LED)
LAN# 1~6 – 10/100Tx RJ45
LAN Port 1~4
(Lower LED)
LAN Port 5~6
(Upper LED)
LAN Port 5~6
Grounding Screw
(Upper LED)
Owner
Ring
DC 12 to 55V redundant power, with a 6-pin removal
terminal block
It is recommended to use a UL listed industrial power supply
Standard operating temperature model: -10°C to 70°C
Extended operating temperature model: -40°C to 75°C
IP30 protection
DIN-Rail and wall mount design
Color Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
On
Power input 1 or 2 is inactive
Red
Off
Both power input 1 and 2 are active
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
The port is supplying power to the powered-device
Off
No powered-device attached or power supplying fails
Green
On
Connected to network, 100Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
Connected to network, 10Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
ERPS Owner Mode (Ring Master) is ready
Green
Off
ERPS Owner Mode is not active
On
Ring Network is active
Green
Off
Ring Network is not active
