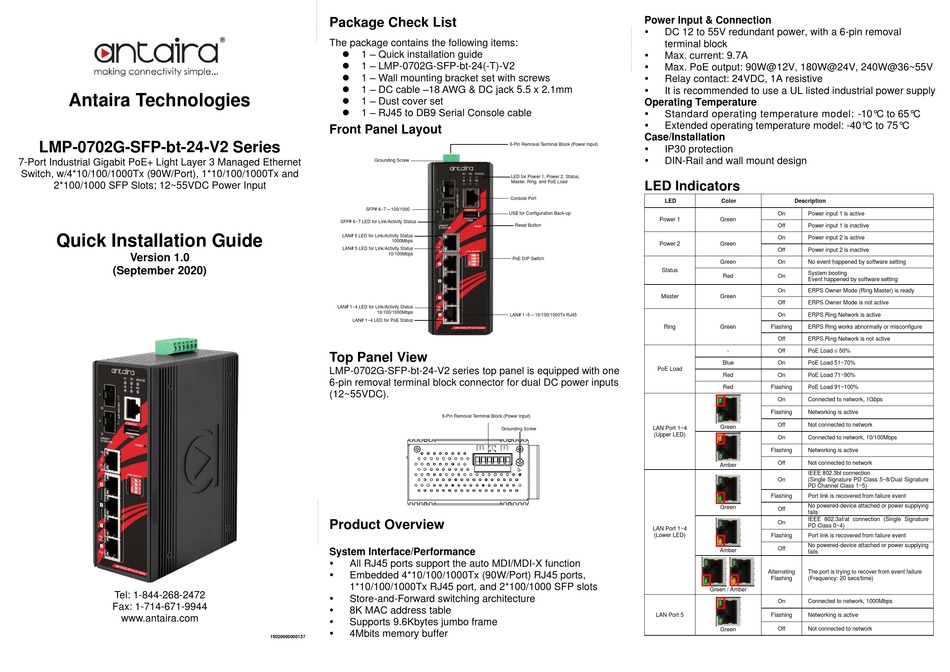

ANTAIRA LMP-0702G-SFP-bt-24-V2 Series Quick Installation Manual

Antaira Technologies
LMP-0702G-SFP-bt-24-V2 Series
7-Port Industrial Gigabit PoE+ Light Layer 3 Managed Ethernet
Switch, w/4*10/100/1000Tx (90W/Port), 1*10/100/1000Tx and
2*100/1000 SFP Slots; 12~55VDC Power Input
Quick Installation Guide
Version 1.0
(September 2020)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LMP-0702G-SFP-bt-24(-T)-V2
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – Dust cover set
⚫ 1 – RJ45 to DB9 Serial Console cable

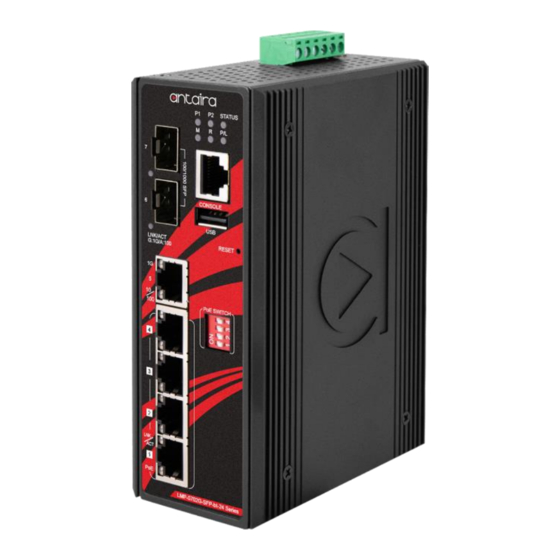

Front Panel Layout
Grounding Screw
SFP# 6~7 – 100/1000
SFP# 6~7 LED for Link/Activity Status
LAN# 5 LED for Link/Activity Status
1000Mbps
LAN# 5 LED for Link/Activity Status
10/100Mbps
LAN# 1~4 LED for Link/Activity Status
10/100/1000Mbps
LAN# 1~4 LED for PoE Status
Top Panel View
LMP-0702G-SFP-bt-24-V2 series top panel is equipped with one
6-pin removal terminal block connector for dual DC power inputs
(12~55VDC).
6-Pin Removal Terminal Block (Power Input)
Product Overview
System Interface/Performance

All RJ45 ports support the auto MDI/MDI-X function

Embedded 4*10/100/1000Tx (90W/Port) RJ45 ports,
1*10/100/1000Tx RJ45 port, and 2*100/1000 SFP slots

Store-and-Forward switching architecture

8K MAC address table

Supports 9.6Kbytes jumbo frame

4Mbits memory buffer
19020000000137
Power Input & Connection

DC 12 to 55V redundant power, with a 6-pin removal
terminal block

Max. current: 9.7A

Max. PoE output: 90W@12V, 180W@24V, 240W@36~55V

Relay contact: 24VDC, 1A resistive

It is recommended to use a UL listed industrial power supply
Operating Temperature

Standard operating temperature model: -10°C to 65°C

Extended operating temperature model: -40°C to 75°C
Case/Installation
6-Pin Removal Terminal Block (Power Input)

IP30 protection

DIN-Rail and wall mount design
LED for Power 1, Power 2, Status,
Master, Ring, and PoE Load LED Indicators
Console Port
LED
USB for Configuration Back-up
Power 1
Reset Button
Power 2
PoE DIP Switch
Status
Master
LAN# 1~5 – 10/100/1000Tx RJ45
Ring
PoE Load
LAN Port 1~4
Grounding Screw
(Upper LED)
LAN Port 1~4
(Lower LED)
LAN Port 5
Color Description
On Power input 1 is active
Green
Off Power input 1 is inactive
On Power input 2 is active
Green
Off Power input 2 is inactive
Green On No event happened by software setting
System booting
Red On
Event happened by software setting
On ERPS Owner Mode (Ring Master) is ready
Green
Off ERPS Owner Mode is not active
On ERPS Ring Network is active
Green Flashing ERPS Ring works abnormally or misconfigure
Off ERPS Ring Network is not active
PoE Load ≤ 50%
- Off
Blue On PoE Load 51~70%
Red On PoE Load 71~90%
Red Flashing PoE Load 91~100%
On Connected to network, 1Gbps
Flashing Networking is active
Off Not connected to network
Green
On Connected to network, 10/100Mbps
Flashing Networking is active
Off Not connected to network
Amber
IEEE 802.3bt connection
On (Single Signature PD Class 5~8/Dual Signature
PD Channel Class 1~5)
Flashing Port link is recovered from failure event
No powered-device attached or power supplying
Green
Off
fails
IEEE 802.3af/at connection (Single Signature
On
PD Class 0~4)
Flashing Port link is recovered from failure event
No powered-device attached or power supplying
Off
Amber
fails
Alternating The port is trying to recover from event failure
Flashing (Frequency: 20 secs/time)
Green / Amber
On Connected to network, 1000Mbps
Flashing Networking is active
Off Not connected to network
Green
