HI400/CI2600
installation
|
17

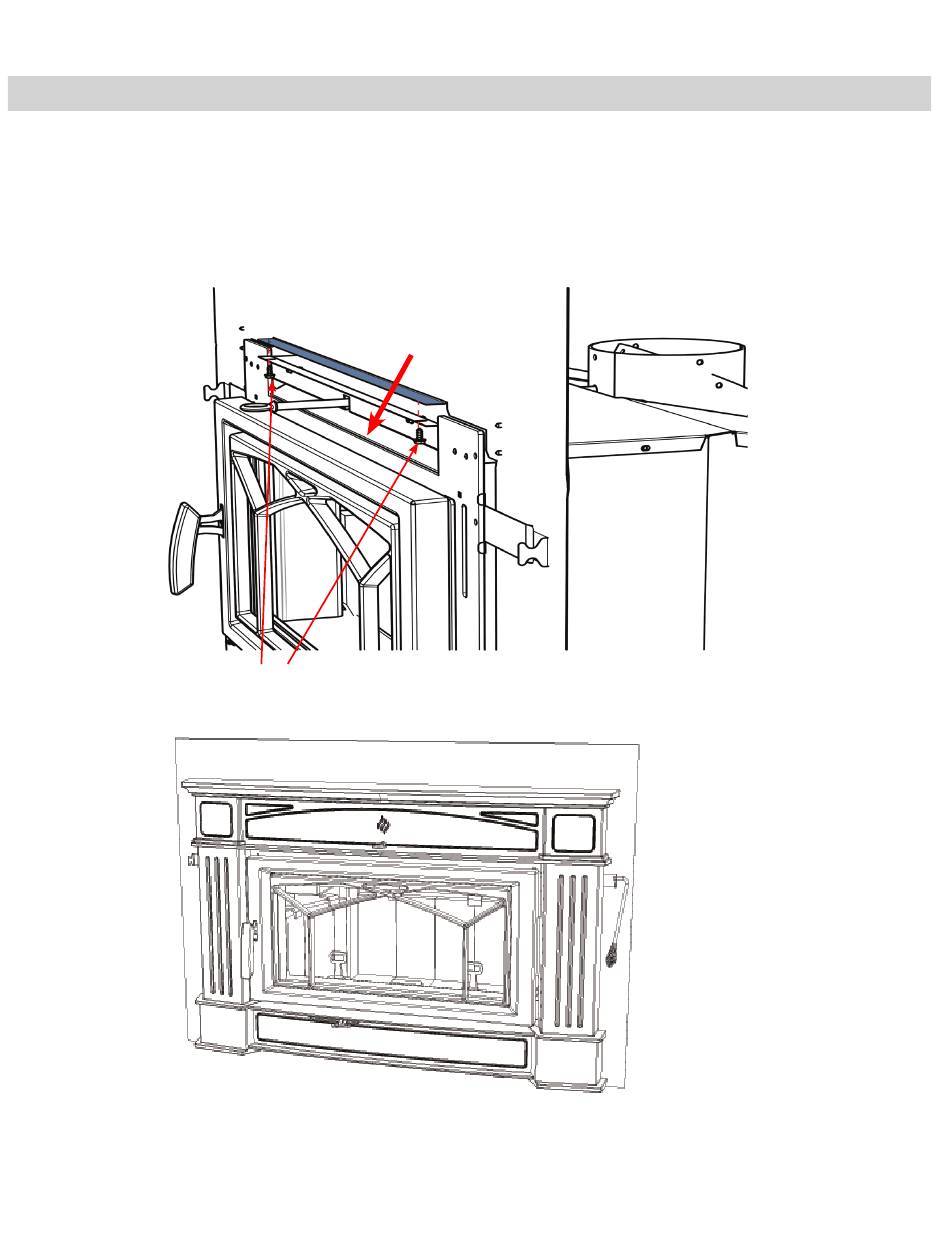

OPTIONAL BACKING PLATE INSTALLATION
BACKING PLATE INSTALLATION
An optional backing plate is available in either a standard or oversized.
1. Slide the backing plate over unit. Line up fl ange on backing plate
with fl ange on unit and secure with 2 screws from the underside as
shown below.
Proceed with Faceplate install.
Backing Plate
Screws
Diagram 4
Completed backing plate shown with Optional Hampton faceplate
CI2700/HI500 | wood insert |
17
1
01/28/15
919-324
