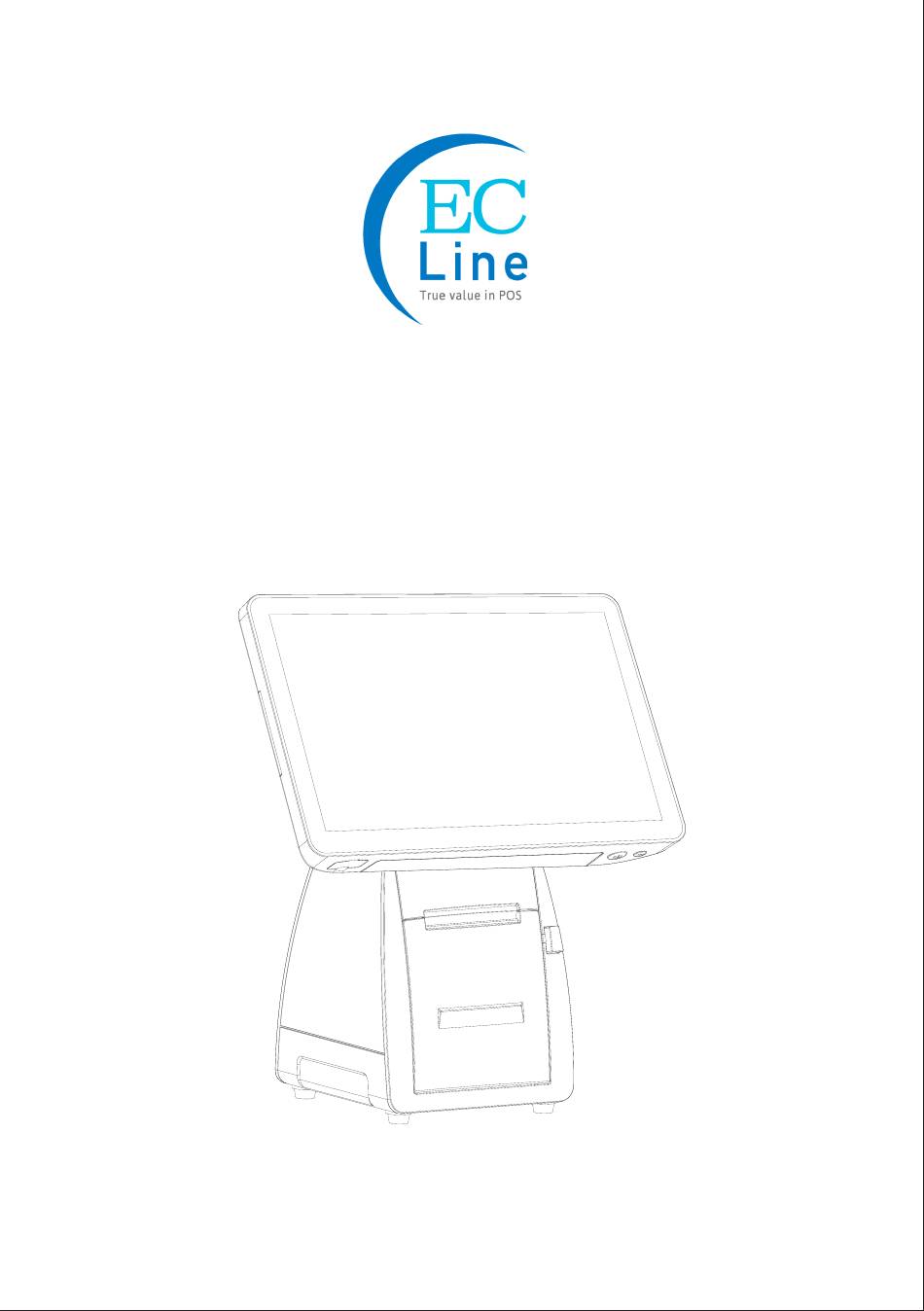

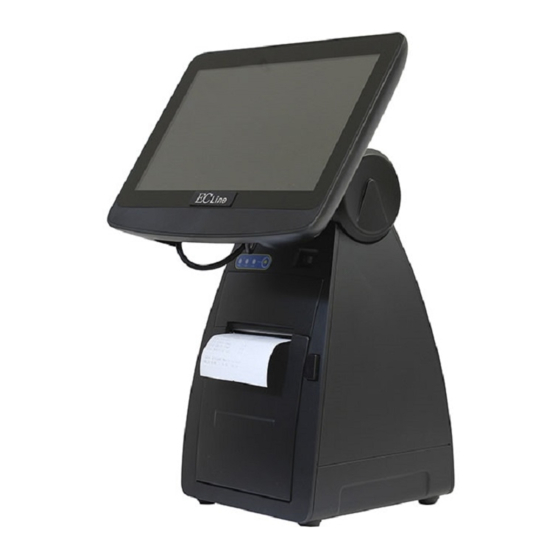

- Page 1 EC-AM-102-80 Android POS Terminal User’s Manual EC-AM-102-80 User Manual V1.0...
-
Page 2: Unpacking And Checking
1. Unpacking and Checking Check the following items in the package, if any of these items is missing, please contact your dealer >> User manual << (1) EC-AM-102-80 (2) User manual (3) Power adapter (4) Power cable (5) Paper roll... - Page 3 / distributor. About this manual / Safety statement: This manual is for EC-AM-102-80 Android POS terminal series, all contents have been validated and reviewed. EC-AM-102 complies with GB4943.1-2011; GB9254-2008 Warranty Device must be opened by authorized person or qualified technical engineer.
- Page 4 Caution 1. Avoid radio interference 2. Use genuine accessories or spare parts. Use improper spare part may cause damage or malfunction. 3. The power cord of this product is come with ground connection. Make sure the voltage of the electricity is correctly match our power supply. 4.
- Page 5 2. Button and Interface Indicator and buttons Indicator and button Description Shows power status. Blue light when power is on Power indicator Red light flash when errors occurs Error indicator Red light flash when out of paper Paper out indicator Paper feed Feed button On/off button for printer...
- Page 6 Host Interface Serial DK port interface Integrated printer interface Ethernet Power interface Interface Interface Description Description Description Description Description Description Power Power input Ethernet 100M LAN, RJ-45 module connector interface RJ11interface, Dual 12V connector cash drawer Serial port RS232, D-SUB 9 PIN Support USB V2.0/1.1 DK port RJ11interface, Dual 12V connector cash drawer...
-
Page 7: Paper Loading
3. Paper loading 1. Press the cover-open button, open the cover of the printer 2. Load paper roll into the printer, pull out the paper roll till it pass gap sensor ,complete paper loading. 3. Carefully close the cover. -
Page 8: Power Cable Connection
4. Power Cable Connection 4. Power Cable Connection 1. Open the back cover and insert the power cord according to diagram ② Close the back cover. ① Before the power cord is connected, ensure that it is not at the ①... -
Page 9: Troubleshooting
5. Troubleshooting Can not start device, power indicator off. 1. Check whether power socket works. 2. Check whether power cable plugs tightly. Printer keeps beeping, fail to print. 1. Check whether the cover of printer is closed correctly. 2. Check whether the paper is out. 3. - Page 10 Manufacturer: EC LINE Thank you very much for using EC Line product For service, please contact service@ecline.com.hk www.eclinepos.com The manual content and version are subject to change without prior notice.
