User
Manual
EC-WT-10
Portable Terminal
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EC-WT-10 and is the answer not in the manual?

Questions and answers

Related Manuals for EC Line EC-WT-10

Summary of Contents for EC Line EC-WT-10

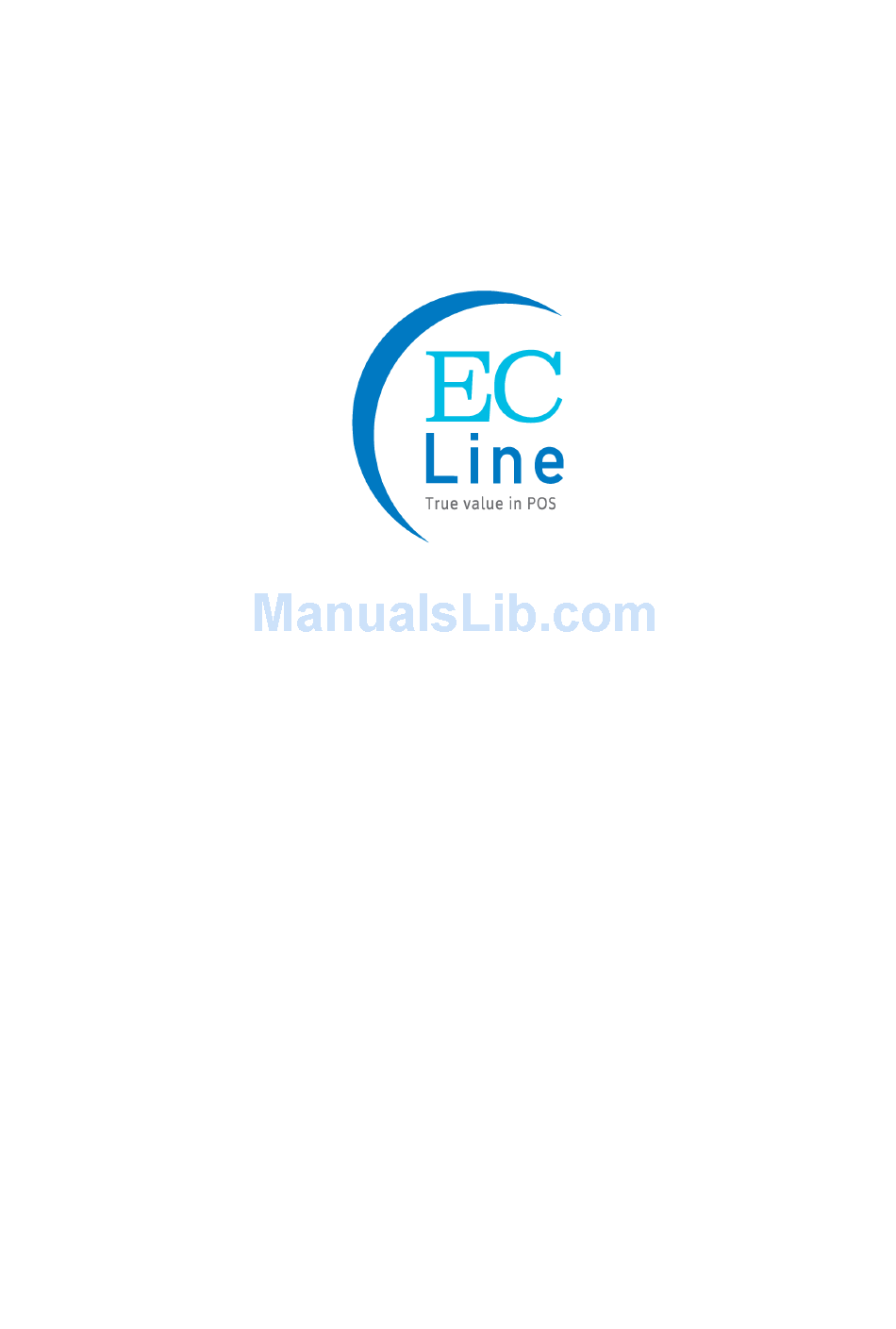

  • Page 1 User Manual EC-WT-10 Portable Terminal V1.0...

  • Page 2: Revision History

    Revision History Version Date Description 5 Oct 2017 First release Version 1.0...

  • Page 3: Copyright

    Copyright Copyright©2017 EC Electronics Limited. All rights reserved. No part of this document may be reproduced, distributed, translated, or stored in any form without the prior written permission of EC Electronics Limited. All brands and product names mentioned herein may be trademarks or registered trademarks of their respective owners. Product specifications are subject to change without prior notice.

  • Page 4: Regulatory Information

    Regulatory Information FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 5: Safety Information

    Safety Information Please read the following information carefully before using the device for the first time, and keep this User Manual in a safe place for future reference. Always treat the device with care and keep it in a clean and dust-free environment. Do not expose the device to extremely hot, cold or humid environment.

  • Page 6: Table Of Contents

    Contents Copyright ............................3 Disclaimer ............................3 Regulatory Information........................4 Safety Information........................... 5 Product Specifications......................7 Device Overview........................9 Tablet..........................9 Docking Station....................... 10 Rear Panel I/O Connectors ..................... 11 Getting Started........................12 Charging the Tablet......................12 Powering the Tablet On and Off ..................13 Suspending the Tablet ....................

  • Page 7: Product Specifications

    1. Product Specifications Tablet Item Specification Processor Intel X5 Cherry Trail Z8350 Quad Core Processor Flash 32GB eMMC (Optional 64GB) 2GB DDR3L (Optional 4GB) 10.1” 1280 x 800 IPS screen Touch panel Capacitive multi-touch Memory Expansion Micro-SD card slot. Support up to 64GB memory card WLAN 802.11a/b/g/n 2.4GHz and 5GHz.
  • Page 8 Docking Station Item Specification AC/DC adaptor AC IN: 100-240V DC OUT: 24V 2A Indicator 1 x Green power LED Pogo pin connector 9-pin interface for USB host and charging USB port USB 2.0 Type A connector x 4 Serial port RS232 DB9 connector x 4 Ethernet port RJ45 connector x 1...

  • Page 9: Device Overview

    2. Device Overview 2.1 Tablet No. Item Description Power key Press and hold to turn device on or off If the device is on, press to suspend Volume up key Press to increase volume Volume down key Press to decrease volume Front camera 2MP camera Touch screen...

  • Page 10: Docking Station

    2.2 Docking Station Item Description Release button Press and hold to release the tablet Key lock Lock the tablet with a key Pogo Provide charging and USB connections for the tablet connector Power connector Connect the power cable Ethernet port RJ45 connector x 1 Cash drawer port RJ11 24V connector x 1 USB port...

  • Page 11: Rear Panel I/O Connectors

    2.3 Rear Panel I/O Connectors Version 1.0...

  • Page 12: Getting Started

    3. Getting Started 3.1 Charging the Tablet The tablet can be charged through the docking station or a USB adaptor. 3.1.1 Charging with the Docking Station To charge the tablet through the docking station: Connect the power cable into the power connector of the docking station. Plug the other end of the power cable to a suitable power socket.

  • Page 13: Powering The Tablet On And Off

    To undock the tablet from the docking station: Turn the key to the unlocked position. Press and hold the release button of the docking station. Remove the tablet from the slot. 3.1.2 Charging with a USB charger 1. Plug the USB charging cable supplied with the tablet into a USB charger. 2.

  • Page 14: Suspending The Tablet

    Powering off the Tablet Press and hold the Power key for 3 seconds, and follow the screen instructions to power off the device. 3.3 Suspending the Tablet If the tablet is on, press the Power key once to suspend the device (i.e. entering sleep mode), saving battery power.

  • Page 15: Fixing The Handstrap

    3.6 Fixing the Handstrap An optional handstrap is available for the tablet. To fix the handstrap on the tablet: 4. Turn over the tablet. 5. Slide the lock of the logo plate to the unlocked position, and remove the logo plate. 6.

  • Page 16: Using Wi-Fi

    4. Using Wi-Fi 4.1 Connecting to a Wi-Fi Network 1. Click the Network icon on the taskbar. 2. If the Wi-Fi is off, click the Wi-Fi button on the pop up menu to turn it on. 3. Select a network from the AP list, and click Connect. 4.

  • Page 17: Disconnecting From A Wi-Fi Network

    6. Once connected, it displays Connected under the network name. 4.1 Disconnecting from a Wi-Fi Network 1. Click the Network icon on the taskbar. 2. Click the connected network. 3. Click Disconnect. Version 1.0...

  • Page 18: Using Bluetooth

    5. Using Bluetooth 5.1 Bluetooth Profiles The tablet supports the following Bluetooth profiles: PANU: PAN User Profile SPP: Serial Port Profile OPP: Object Push Profile A2DP: Advanced Audio Distribution Profile AVRCP: Audio/ Video Remote Control Profile HID: Human Interface Device Profile DUN: Dial Up Networking Profile HCRP: Hardcopy Cable Replacement Profile HFP: Hands-free Profile...

  • Page 19: Managing The Bluetooth Com Port

    5. Follow the screen instructions on both devices to complete the pairing. Once paired, the device displays Connected status. Note: Some Bluetooth devices may require software driver installation. 5.3 Managing the Bluetooth COM port After pairing a Bluetooth device (e.g. a Bluetooth printer), it is recommended to check the port setting and re-configure the port if necessary.

  • Page 20: Disconnecting A Bluetooth Device

    5.4 Disconnecting a Bluetooth Device To disconnect a Bluetooth Device: Select Start > Settings > Devices > Bluetooth. Click the paired device, and select Remove device > Yes. 6. Using Cellular 6.1 Inserting a SIM card 1. Power off the tablet. 2.

  • Page 21: Setting Up 3G Apn

    4. Remove the card tray from the tablet. 5. Insert a micro SIM card into the card tray. 6. Gently slide the card tray into the SIM card slot, and close the rubber cover. 7. Power on the tablet. 6.2 Setting up 3G APN 1.
  • Page 22 3. Click Add an Internet APN. 4. Enter the APN information of the SIM card, and click save to save the settings. 5. On the status bar, click the Network icon and then click the Cellular button to turn on cellular.

  • Page 23: Using Nfc

    7. Using NFC DT-10 is equipped with an NFC controller operating at 13.56MHz for reading and writing NFC tags. It supports the following protocols: ISO 14443 A/B MIFARE Felica NFC Forum Tags ISO 15693 7.1 Reading a NFC Tag NFC is turned on by default. To read a NFC tag, place the tag at approx. 2 cm from the NFC scanning area.
  • Page 24 2. Place a NDEF formatted card on the NFC scanning area of the tablet, and click the Receive content prompt. 3. Data is displayed. To write data into a NFC card: NfcEditor.exe. Run the application Input the URL data in the field. Place the NFC card in the scanning area, and click Write.
  • Page 25 xample program 2: Proximity Sample Apps. This demonstrates how to use the PeerFinder, ProximityDevice, and PeerWatcher classes to communicate with nearby devices. https://code.msdn.microsoft.com/windowsapps/Proximity-Sample-88129731/ Note: The minimum requirement for compiling the project will be running Visual Studio 2013 on Windows 8.1 PC. To install the C++ sample: Copy the compiled AppPackages directory in to DT-10 On the tablet, select Settings >...
  • Page 26 In PowerShell, use Set-ExecutionPolicy Unrestricted to change the policy Change to the directory containing Add-AppDevPackage.psd1 Execute the Add-AppDevPackage.psd1 to install the application. Run the Proximity C++ sample in Windows Start menu. Version 1.0...
  • Page 27 Version 1.0...

  • Page 28: Using Lan

    8. Using LAN The tablet can be connected to a local area network (LAN) through the docking station. To connect to a LAN: 1. Dock the tablet in the docking station. 2. Connect a RJ-45 network cable to the RJ45 connector of the docking station. 3.

  • Page 29: Identifying The Cash Drawer Com Port

    open the cash drawer. 10.1 Identifying the Cash Drawer COM port To identify the COM port number of the cash drawer: 1. Select the Search icon on the status bar. 2. Type Device Manager in the search box to open Device Manager. 3.
  • Page 30 Version 1.0...
  • Page 31 Manufacturer: EC LINE Thank you very much for using EC Line product For service, please contact service@ecline.com.hk www.eclinepos.com Version 1.0...
