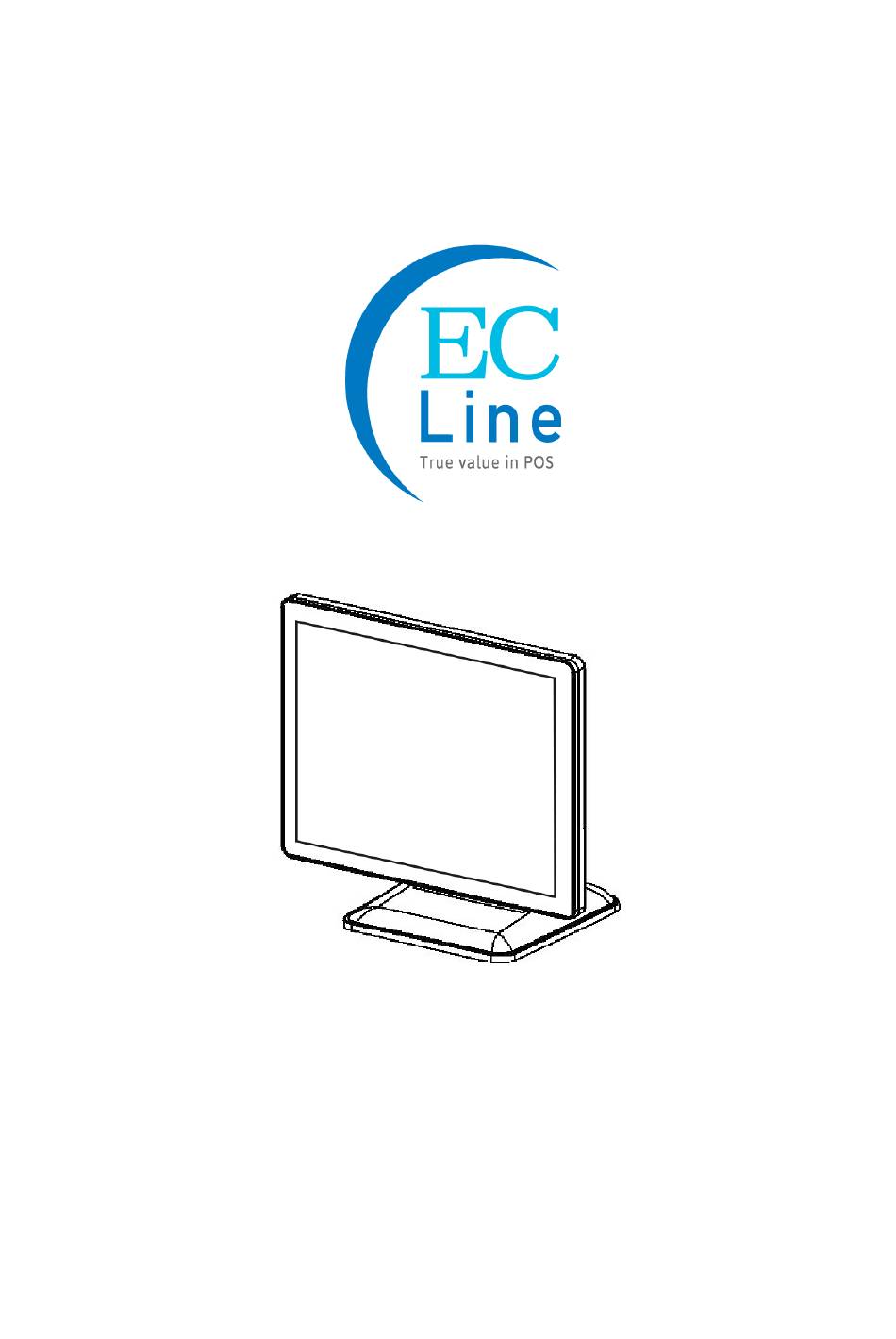

- Page 1 User Manual EC-VP-1100A Android POS Terminal...
-
Page 2: Table Of Contents
4. INSTALLATION GUIDE .................. 6 -8 4.1 Appearance .......................... 6 4.2 Power Button .......................... 7 4.3 Rear Panel I/O Connectors ....................... 8 5. GETTING START .................... 9 5.1 Unpacking .......................... 9 6. TROUBLESHOOTING ................... 1 0 6.1. Electricity Failure ........................ 1 0 6.2. Power Failure ......................... 1 0 6.3. Network / LAN Failure ...................... 1 0 7. MAINTENANCE .................... 1 0 8. LIMITED WARRANTY POICY ................ 1 1 EC-VP-1100A User Manual – V1... -
Page 3: Overview
Overview Thank you for purchasing the EC-VP-1100A Android POS terminal. We are committed to use up-to-date technology and provide better after-sales service continuously. Please take time to read this user manual before system installation. Note: Information in this user manual may change without prior notice 1. -
Page 4: Electromagnetic Compatibility Statement
This product has been tested and found to comply with the limits for Class A Information Technology Equipment according to CISPR 22/European Standard EN 55022. The limits for Class A equipment were derived for commercials and industrial environments to provide reasonable protection against interference with licensed communication equipment. EC-VP-1100A User Manual – V1... -
Page 5: Specification
3. Specification EC-VP-1100A Android POS Terminal 1.6 Ghz Rk 3188 ARMquad-Core cortex-A17 2GB Standard, Maximum 4GB (1 x 204-pin Memory MAINBOARD DDR3L) 8GB SSD, option 16GB Storage Android 5.1 or above OS Support 15 Inches Display Size Resolution 1024 x 768... -
Page 6: Installation Guide
Installation Guide 4.1 Appearance 4.1.1 Font View 4.1.2 Side View EC-VP-1100A User Manual – V1... -
Page 7: Power Button
4.1.3 Black View (MSR, iButton & Finger Sensor Protective Cover) (Customer Display Protective Cover) 4.2 Power Button EC-VP-1100A User Manual – V1... -
Page 8: Rear Panel I/O Connectors
4.3 Rear Panel I/O Connectors At the rear panel of the EC-VP-1100A is a row of external I/O device connectors. Detail as below: COM1& 4 - For connection of serial devices USB*4 - Connection to devices LAN - RJ-45 Ethernet connection to Giga-bit LAN... -
Page 9: Getting Start
Getting Start: This chapter describes preparation before use the EC-VP-1100A. The following topics are described. 5.1 Unpacking Below are the items should include in the carton box: Adaptor EC-VP-1100A Power cable Quick start guide If any of the above item is missing, please contact you dealer. -
Page 10: Troubleshooting
Turn off the power immediately whenever problem occurs. Do not maintain and disassemble the units, contact the authorized person for service. Check the cable connection to make sure they are connected correctly. Disconnect the power when the terminal is not going to use for a period of time. EC-VP-1100A User Manual – V1... -
Page 11: Limited Warranty Poicy
Some regions do not allow exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you EC-VP-1100A User Manual – V1... - Page 12 Manufacturer: EC LINE Thank you very much for using EC Line product For service, please contact service@ecline.com.hk www.eclinepos.com EC-VP-1100A User Manual – V1...
