H-2086

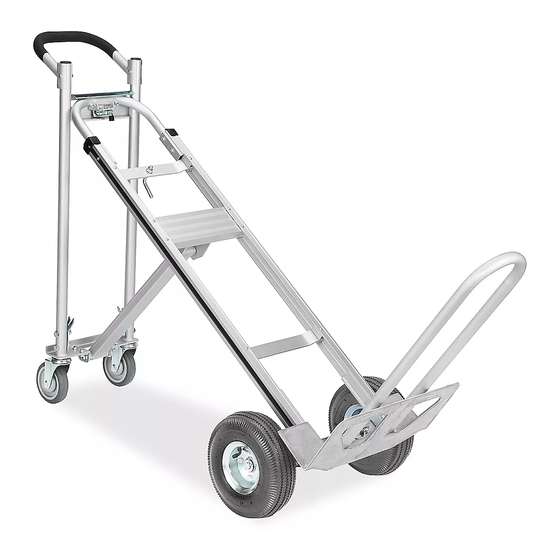

3-IN-1 ALUMINUM
HAND TRUCK
WITH PNEUMATIC WHEELS
TOOLS NEEDED
10mm Wrench
Pliers
1
2
3
4
9
7
6
6
8
5
Figure 1
PAGE 1 OF 6
1-800-295-5510
uline.com
13mm Wrench
Hammer
2
4
13
12
11
10
14
ASSEMBLY
14mm Wrench

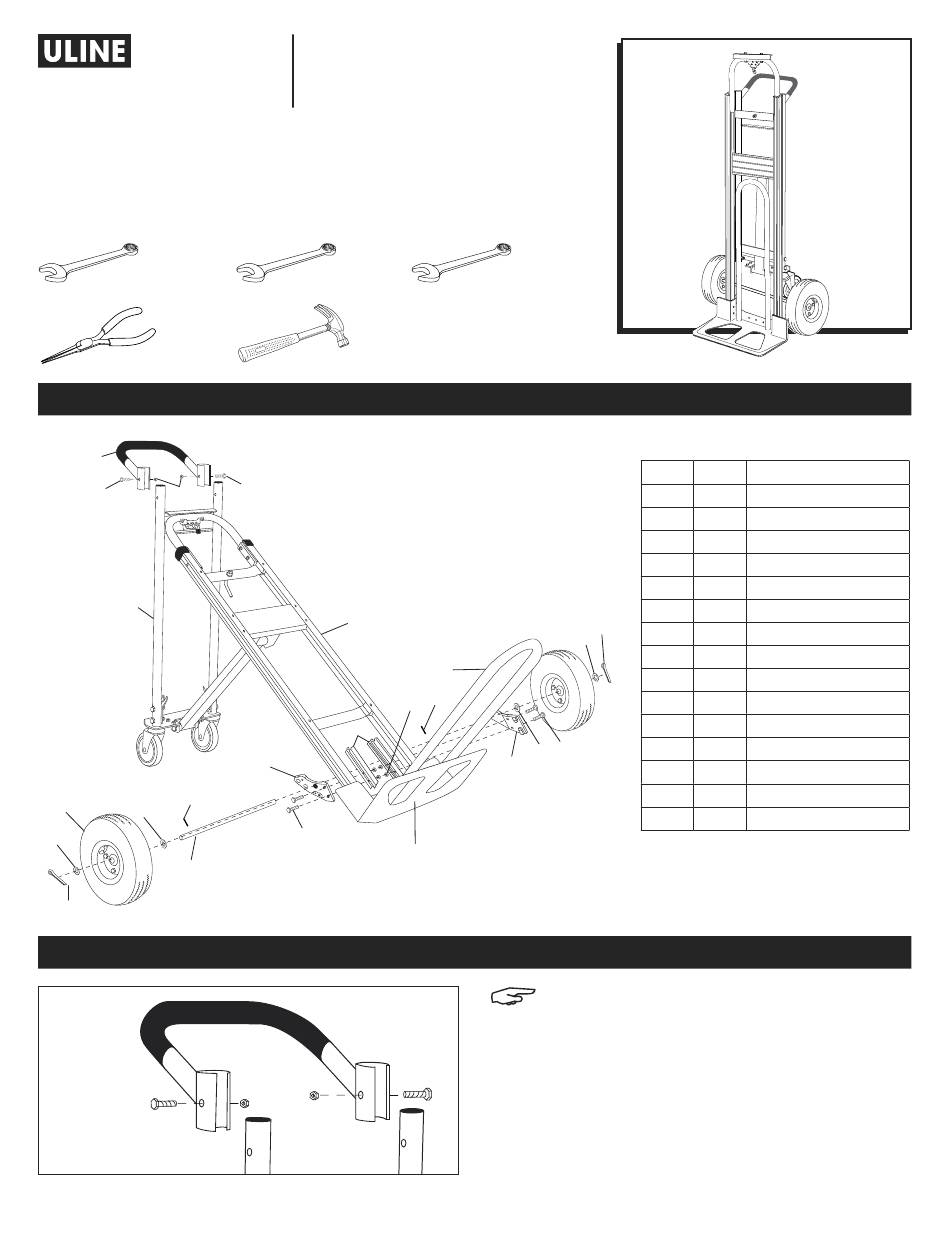

PARTS
5
6
15
9
6
10
11
NOTE: Do not use air or power tools.
ATTACH HANDLE
1.
Slide handle onto the top rails of the frame. Align
holes in handle and frame. Insert two 6mm bolts
through handle and frame and secure with locknuts.
(See Figure 1)
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
REF.
QTY.
DESCRIPTION
1
1
Handle
2
2
6mm Bolt
3
2
6mm Locknut
4
1
Frame
5
2
Cotter Pin
6
4
Washer
7
2
Wheel
8
1
Axle
9
2
Round Pin
10
4
8mm Bolt
11
2
Axle Support
12
2
Frame Reinforcement
13
4
8mm Locknut
14
1
Nose Plate
15
1
Folding Nose Extension
0421 IH-2086
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for U-Line H-2086
Summary of Contents for U-Line H-2086
- Page 1 Para Español, vea páginas 3-4. Pour le français, consulter les pages 5-6. H-2086 1-800-295-5510 uline.com 3-IN-1 ALUMINUM HAND TRUCK WITH PNEUMATIC WHEELS TOOLS NEEDED 10mm Wrench 13mm Wrench 14mm Wrench Pliers Hammer PARTS REF. QTY. DESCRIPTION Handle 6mm Bolt 6mm Locknut...
- Page 2 ASSEMBLY CONTINUED ATTACH NOSE PLATE, FOLDING NOSE EXTENSION Figure 2a AND AXLE SUPPORTS Position frame reinforcements against bottom frame Frame rail. (See Figure 2a) Slide nose plate into channel on frame reinforcements, keeping bolt holes aligned. (See Figure 2) 2. Align axle support with outside rail of frame. (See Figure 2) Frame 3.
- Page 3 H-2086 800-295-5510 uline.mx DIABLITO DE ALUMINIO 3 EN 1 CON LLANTAS NEUMÁTICAS HERRAMIENTAS NECESARIAS Llave de 10 mm Llave de 13 mm Llave de 14 mm Pinzas Martillo PARTES REF. CANT. DESCRIPCIÓN Perno de 6 mm Contratuerca de 6 mm Armazón...
- Page 4 CONTINUACIÓN DE ENSAMBLE FIJE LA PLACA DELANTERA, LA EXTENSIÓN Diagrama 2a DELANTERA PLEGABLE Y LOS SOPORTES DEL EJE 1. Coloque los refuerzos contra el fondo del riel del Armazón armazón. (Vea Diagrama 2a) Deslice la placa delantera hacia el canal en los refuerzos del armazón, manteniendo alineados los orificios de los pernos.
- Page 5 H-2086 1-800-295-5510 uline.ca DIABLE DE MANUTENTION 3 EN 1 EN ALUMINIUM À ROUES PNEUMATIQUES OUTILS REQUIS Clé de 10 mm Clé de 13 mm Clé de 14 mm Pince Marteau PIÈCES QTÉ DESCRIPTION Poignée Boulon de 6 mm Écrou freiné de 6 mm Cadre Goupille fendue...
- Page 6 MONTAGE SUITE FIXATION DE LA BAVETTE, DE LA RALLONGE DE Figure 2a BAVETTE REPLIABLE ET DES SUPPORTS D'ESSIEU Positionnez les renforts de cadre contre les glissières Cadre à l'extrémité inférieure du cadre. (Voir Figure 2a) Glissez la bavette dans la cannelure des renforts de cadre en gardant les trous de boulon alignés.
