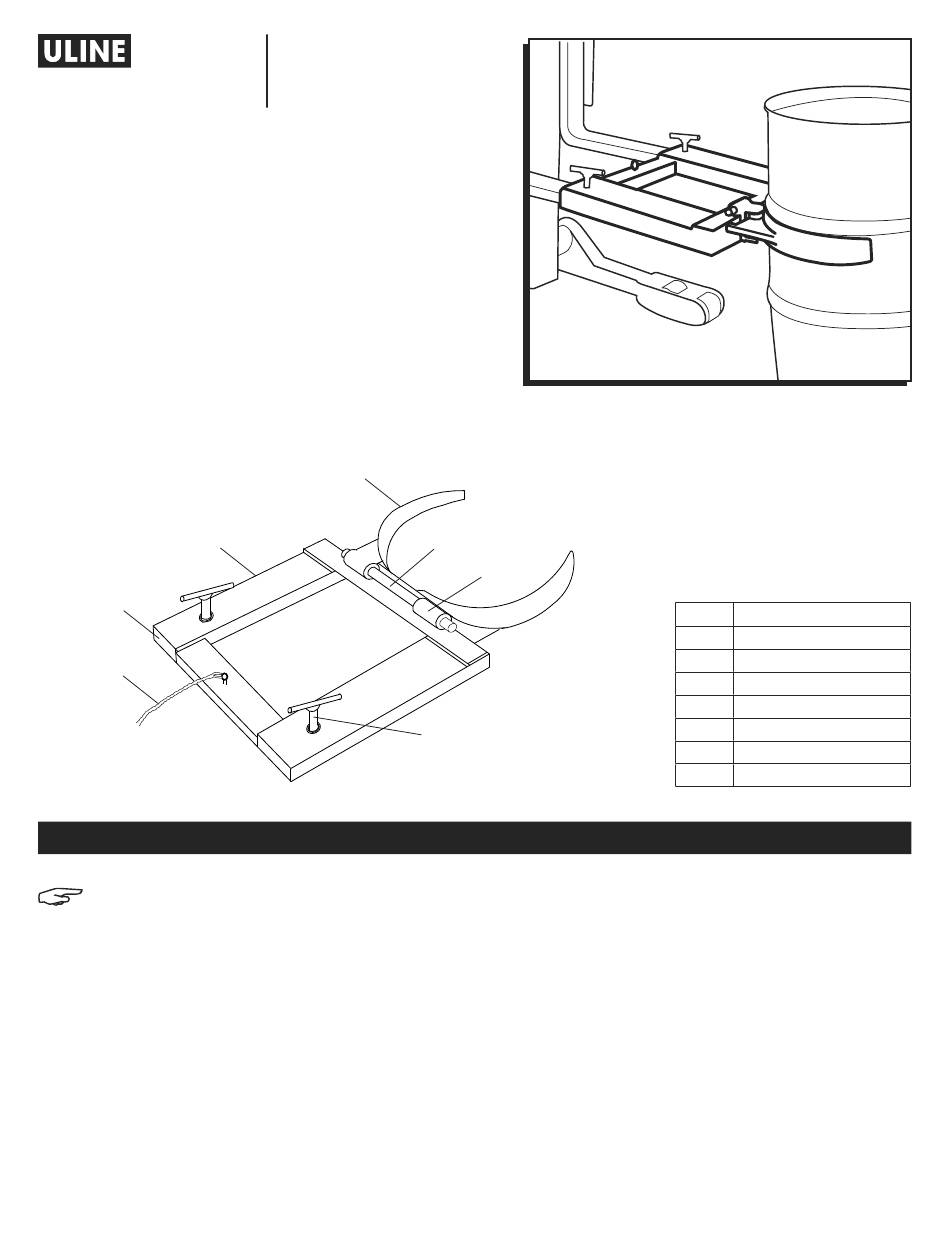

H-1843

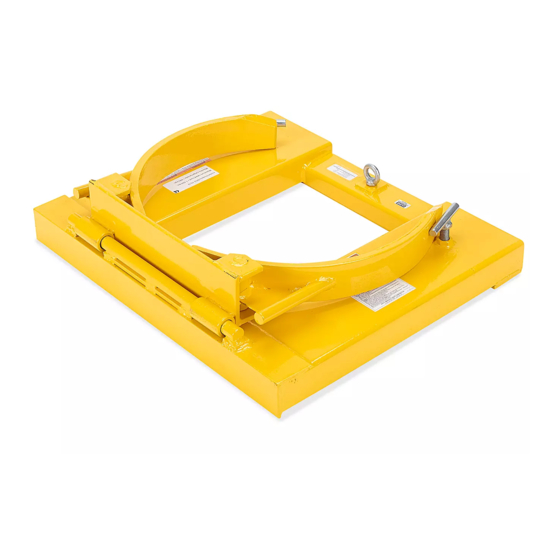

DRUM GRABBER
1
6
7
NOTE: Read and understand instructions
before using the drum grabber.
INSTALLING DRUM GRABBER ONTO
THE FORKS OF THE FORKLIFT TRUCK
1.
Lay the drum grabber on the ground. Lower the
forks of the forklift truck to manually install the drum
grabber. Slide the drum grabber onto the forks.
PAGE 1 OF 6
1-800-295-5510
uline.com
2
3
5
INSTRUCTIONS
4
2. Firmly screw the screws to prevent the drum grabber
from slipping off of the forklift.
3. Attach the safety strap to the forklift truck.
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
#
DESCRIPTION
1
Supporting Rack
2
Clamp
3
Axle
4
Axle Base
5
Screw
6
Fork Hole
7
Strap
0621 IH-1843
