π
H-2176

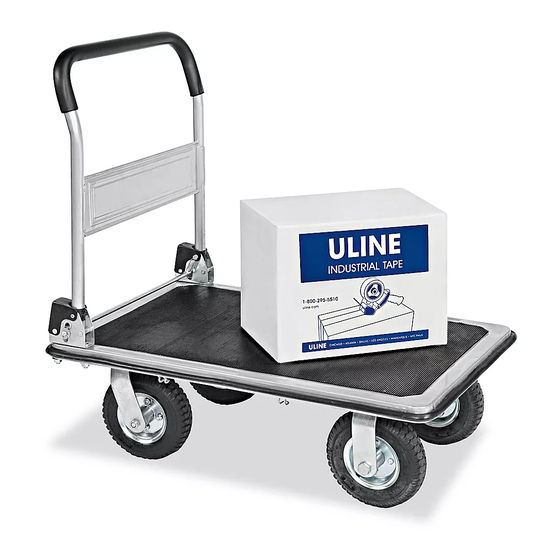

BIG WHEEL
HANDI-MOVER
TOOL NEEDED
12 mm Wrench
1.
Install swivel casters or fixed casters on either the
handle side or the front side. (See Figure 1)
2. To raise the handle, pull the handle up until it locks
in place.
Figure 1
PAGE 1 OF 3
1-800-295-5510
uline.com
Fixed Caster x 2
PARTS
Swivel Caster x 2
OPERATION
3. To fold handle flat, press down the bottom bar.
(See Figure 2)
Figure 2
Para Español, vea página 2.
Pour le français, consulter les page 3.
Bolt x 16
0621 IH-2176
