H-2746

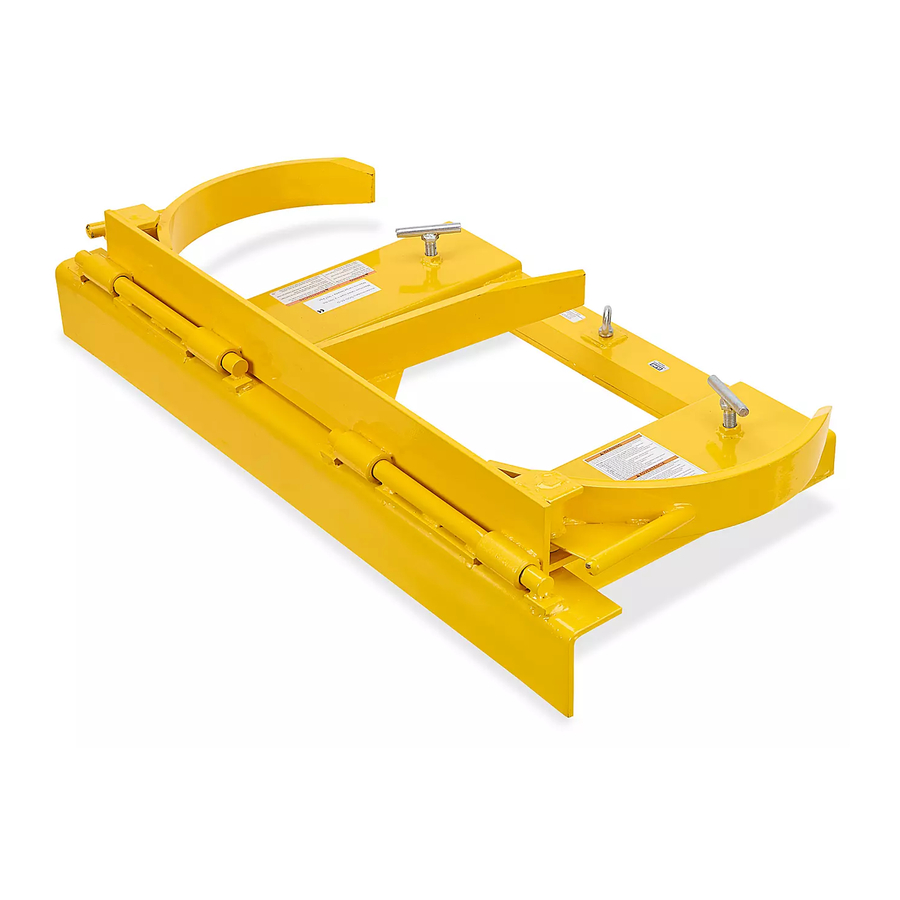

DRUM GRABBER
1
6
NOTE: Read and understand instructions
before using the drum grabber.
INSTALLING DRUM GRABBER ONTO
THE FORKS OF THE FORKLIFT TRUCK
1.
Lay the drum grabber on the ground. Lower the
PAGE 1 OF 2
1-800-295-5510
uline.com
2
5
INSTRUCTIONS
3
4
forks of the forklift truck to manually install the drum
grabber. Slide the drum grabber onto the forks.
2. Firmly screw the screws to prevent the drum grabber
from slipping off of the forklift.
#

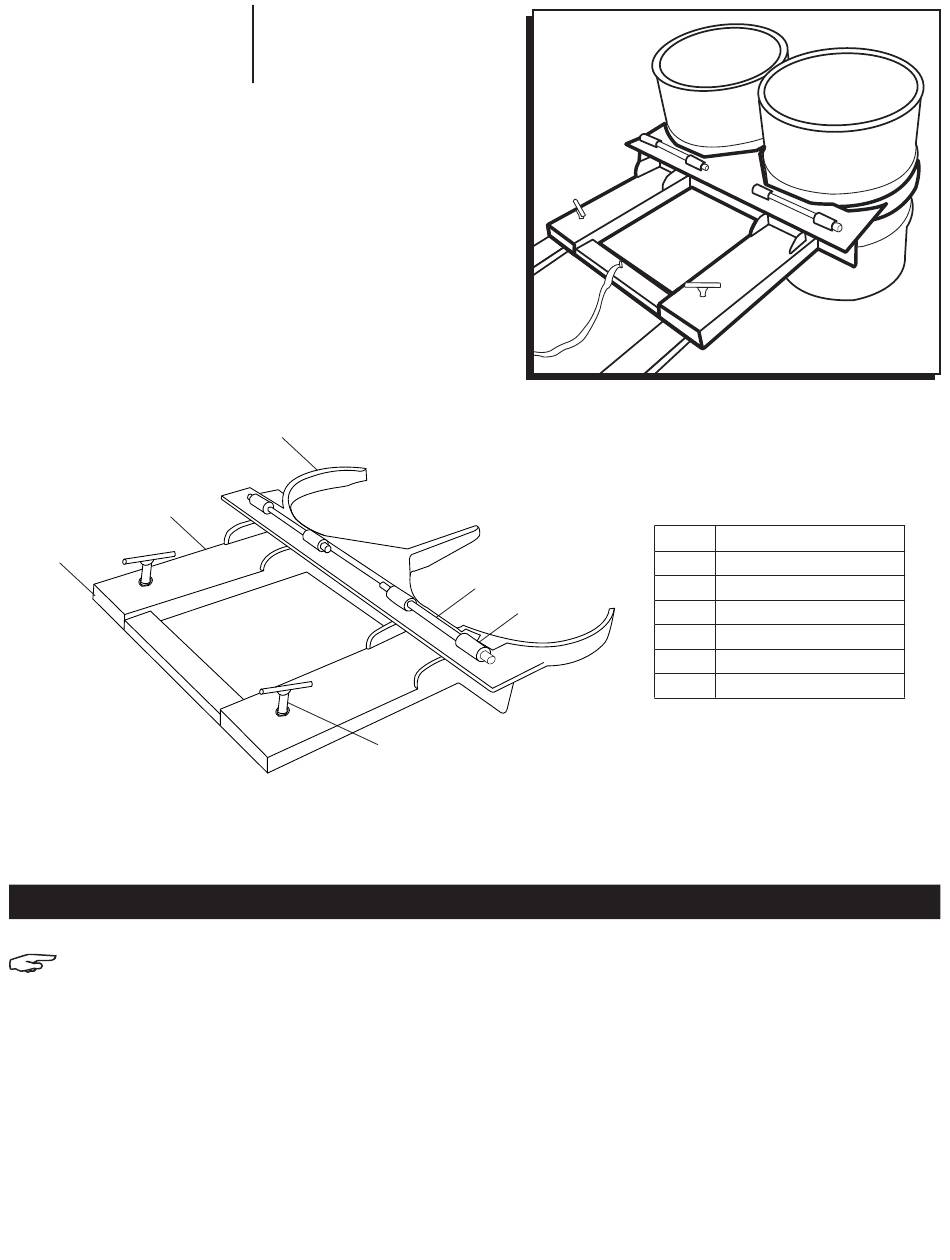

DESCRIPTION
1
Supporting Rack
2
Clamp
3
Axle
4
Axle Base
5
Screw
6
Fork Hole
0814 IH-2746
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for U-Line H-2746
Summary of Contents for U-Line H-2746
- Page 1 π H-2746 1-800-295-5510 uline.com DRUM GRABBER DESCRIPTION Supporting Rack Clamp Axle Axle Base Screw Fork Hole INSTRUCTIONS NOTE: Read and understand instructions forks of the forklift truck to manually install the drum before using the drum grabber. grabber. Slide the drum grabber onto the forks.
- Page 2 INSTRUCTIONS CONTINUED CLAMPING AND LIFTING THE DRUM 3. Slowly move the fork truck forward to clamp the drum grabber clamps around the drum. (See Figure 3) Raise drum grabber clamps above the drum. (See Figure 1) Figure 3 Figure 1 4.
