U-Line H-3736 Installation Instructions

H-3736, H-4206, H-5097
π
H-6417, H-6454, H-7079
H-7080
CROWD CONTROL
BARRIER POSTS WITH
RETRACTABLE BELT
TOOL NEEDED
Phillips Screwdriver

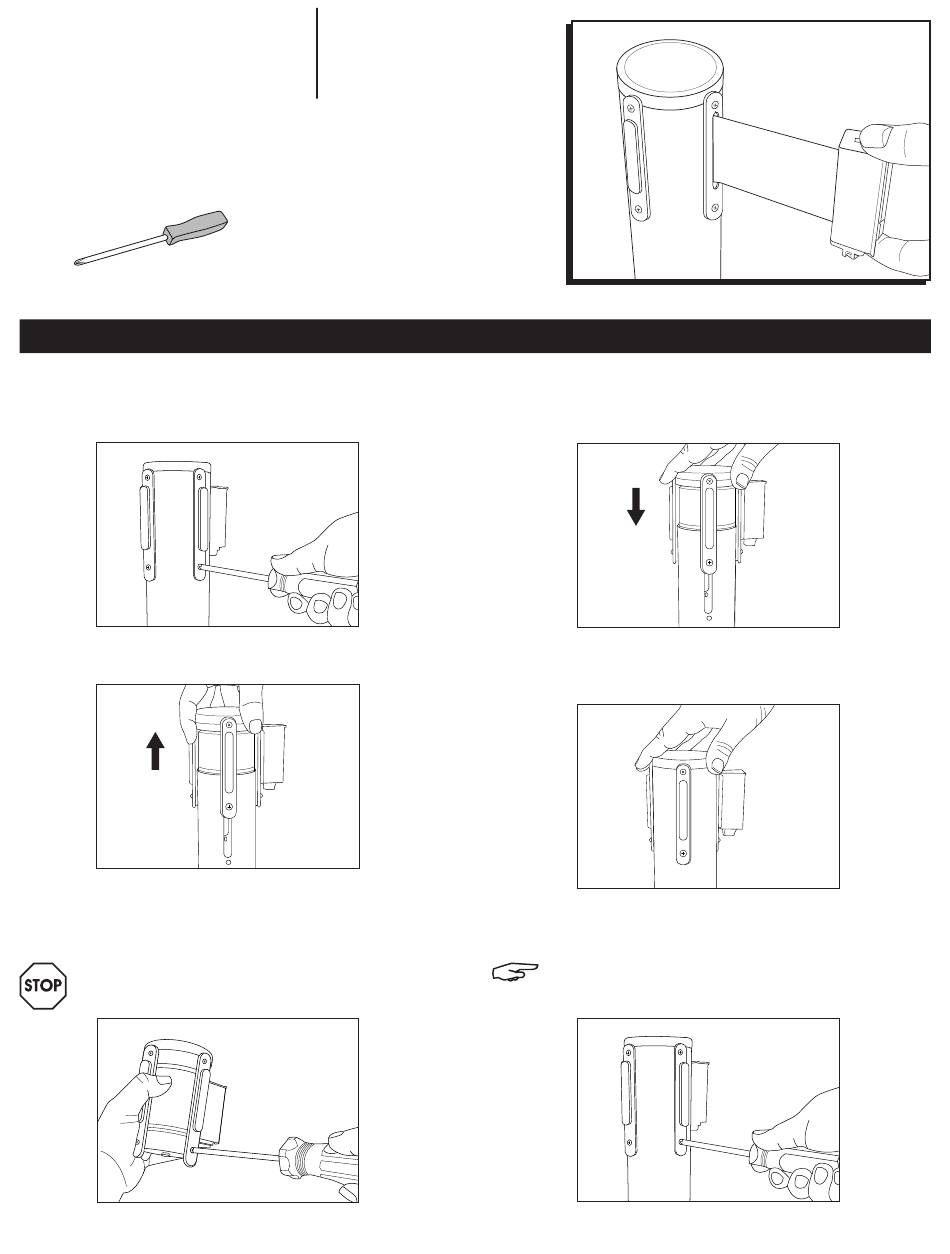

1. Loosen the four bottom screws securing the cassette
into the post. (See Figure 1)
2. Slide the cassette out of the post. (See Figure 2)
3. Loosen the lower screws slightly on the replacement
cassette, but do not remove them completely.
(See Figure 3)
WARNING! Do not loosen the top screws.
This will break cassette.
PAGE 1 OF 2
1-800-295-5510
uline.com

BELT CASSETTE REPLACEMENT INSTRUCTIONS

Figure 1
Figure 2
Figure 3
4. Fit the replacement cassette into the slots in the top
of the post. (See Figure 4)
5. Slide the cassette all the way down the post slots.
(See Figure 5)
6. Tighten screws securing the cassette into the post.
(See Figure 6)
NOTE: Do not overtighten, as this may affect
the belt retraction.
Figure 4
Figure 5
Figure 6
1018 IH-3736
