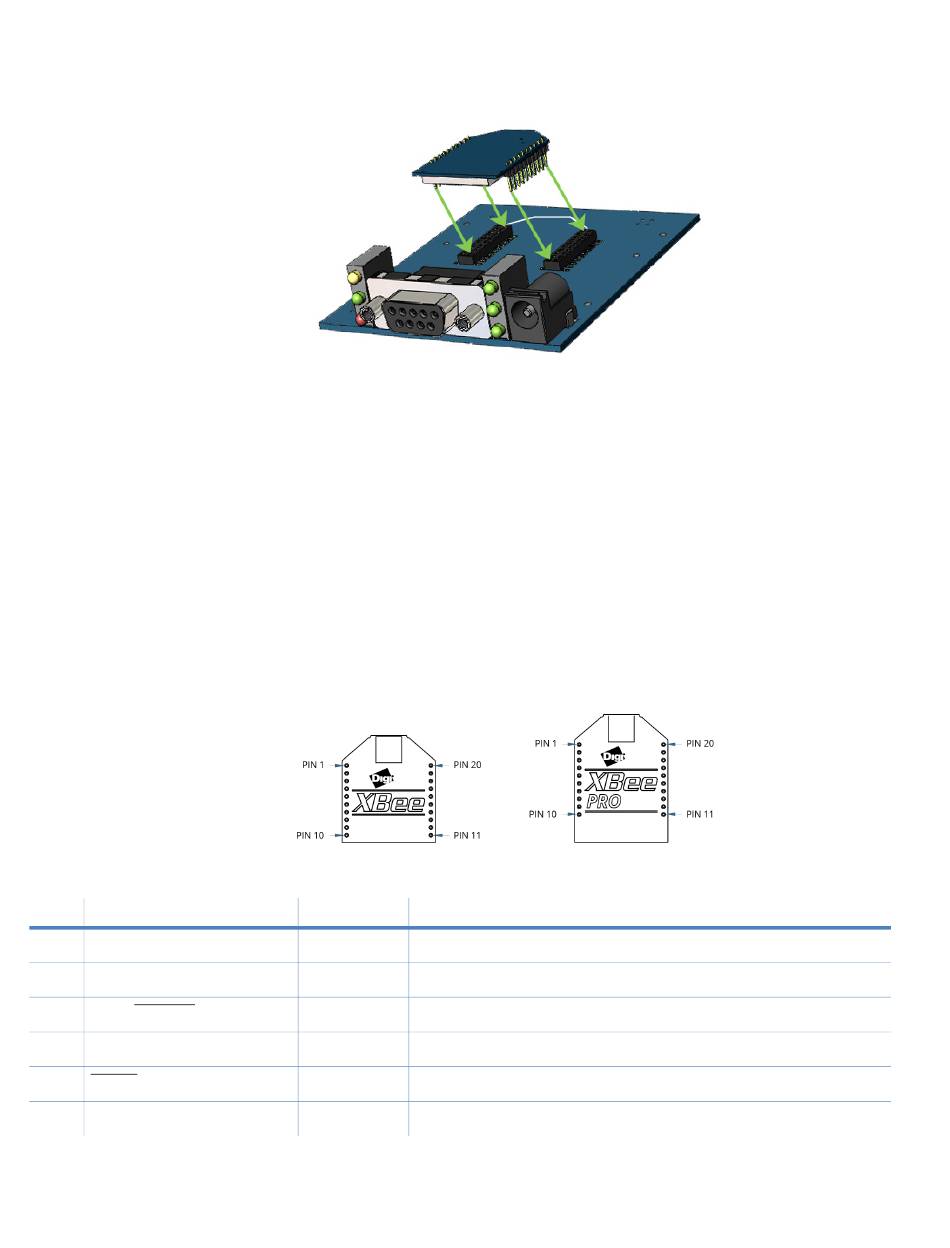

Figure 2: XBee-PRO Module mounting to an RS-232 interface board.
Century Interconnect manufactures the receptacles used on Digi development boards. Several other
manufacturers provide comparable mounting solutions, however, Digi currently uses the following
receptacles:
• Through-hole single-row receptacles -
Samtec P/N: MMS-110-01-L-SV (or equivalent)
• Surface-mount double-row receptacles -
Century Interconnect P/N: CPRMSL20-D-0-1 (or equivalent)
• Surface-mount single-row receptacles -
Samtec P/N: SMM-110-02-SM-S
We also recommend printing an outline of the module on the board to indicate the orientation the
module should be mounted.

Pin signals for the XBee/XBee-PRO RF Module

Figure 3: XBee / XBee-PRO RF Module pin number (top sides shown - shields are on the bottom)
Table 2: Pin assignments for the XBee-PRO Modules
(Low-asserted signals are distinguished with a horizontal line above signal name.)
Pin # Name
1 VCC
2 DOUT
3 DIN / CONFIG
4 DO8*
5 RESET
6 PWM0 / RSSI
XBee / XBee-PRO RF Modules 802.15.4 Product Manual
Direction Description
- Power supply
Output UART data out
Input UART data In
Either Digital output 8
Input Module reset (reset pulse must be at least 200 ns)
Either PWM output 0 / RX signal strength indicator
Pin signals for the XBee/XBee-PRO RF Module
