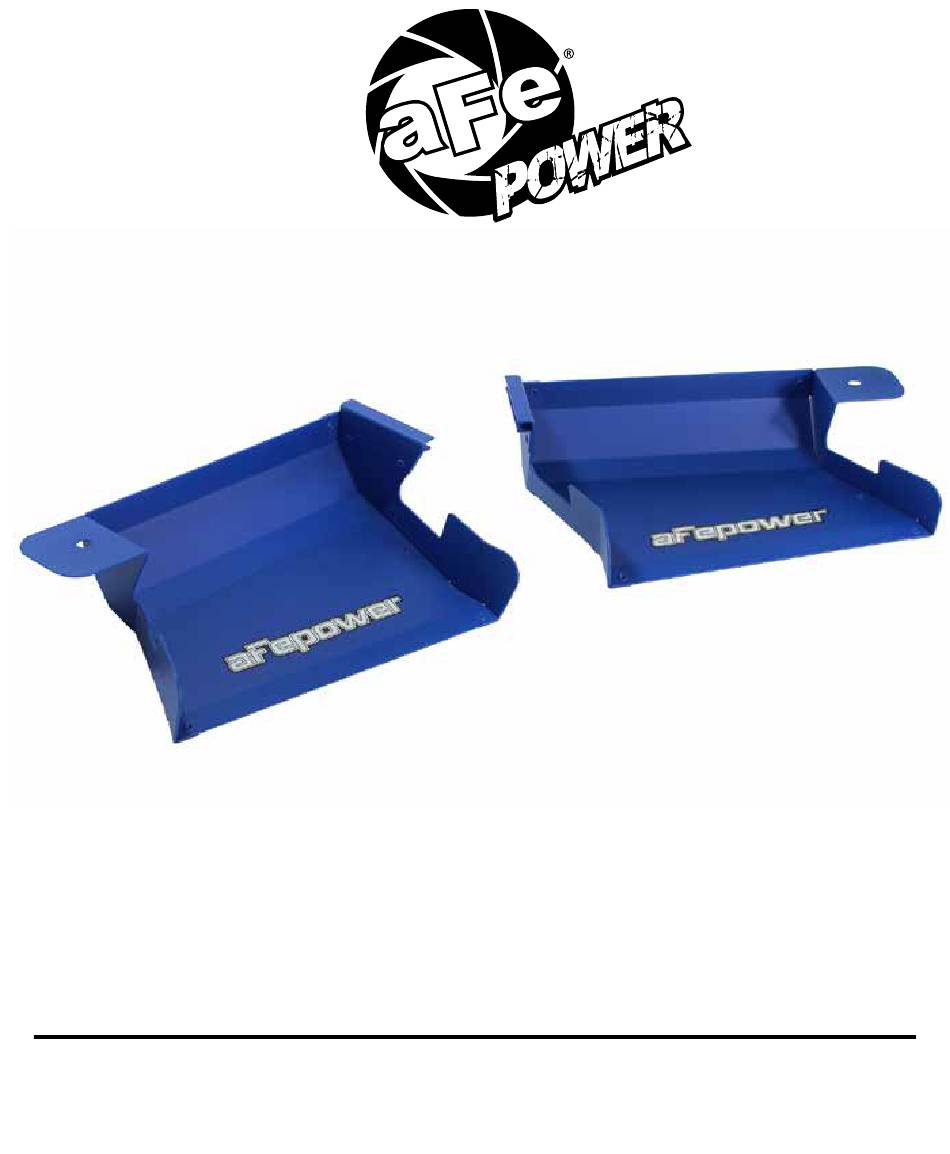

- Page 1 advanced FLOW engineering Instruction Manual P/N: 54-11478/-L/-R/-N/-GN/-GR Make: BMW Model: 3-Series (E9X)/ M3 Year: 2006-2013 Engine: L6/V8...
- Page 2 • Disconnect the negative battery terminal before proceeding. • Retain factory parts for future use. Label Qty. Description Part Number Scoop Driver Side 05-01016 (Black) 05-01016L (Blue) 05-01016R (Red) 05-01016GN (Green) 05-01016N (Orange) 05-01016GR (Gray) Scoop Passenger Side 05-01017 (Black)
- Page 3 aFepower.com Page 3...
- Page 4 REMOVAL Figure A Refer to Figure A for step 1 Step 1: Remove screws on ram air duct using T25 torx bit. (Save for later installation) Page 4...
- Page 5 REMOVAL Figure B Refer to Figure B for step 2-3 Step 2: With flat head screw driver, carefully pry and push up plastic pin. Do so on both sides of ram air duct. (Save pins for later installation) Step 3: Remove air inlet duct. aFepower.com Page 5...
- Page 6 REMOVAL Figure C Refer to Figure C for steps 4 Step 4: The grills are held in place with push clips. To remove, reach in behind each grill and push forward. Page 6...
- Page 7 Figure D Refer to Figure D for step 5-6 Step 5: Install 05-01016 driver side D.A.S. and 05-01017 passenger side D.A.S. Position scoop tab on plastic support as shown in detail picture. Step 6: For easier installation, the next step will require and assistant. Have person A hold the scoops in position as shown.
- Page 8 Refer to Figure E for step 7 Step 7: Re-install T25 screws removed at step 1. Step 8: Re-install grills by lining up tabs and pushing them until they snap into place. Installation is now complete. Thank you for choosing aFe Power! Page 8...
- Page 9 Page left blank intentionally aFepower.com...
- Page 10 Page left blank intentionally aFepower.com...
- Page 11 Page left blank intentionally aFepower.com...
- Page 12 advanced FLOW engineering, inc. 252 Granite Street Corona, CA 92879 https://afepower.com/contact P/N: 06-80271...
