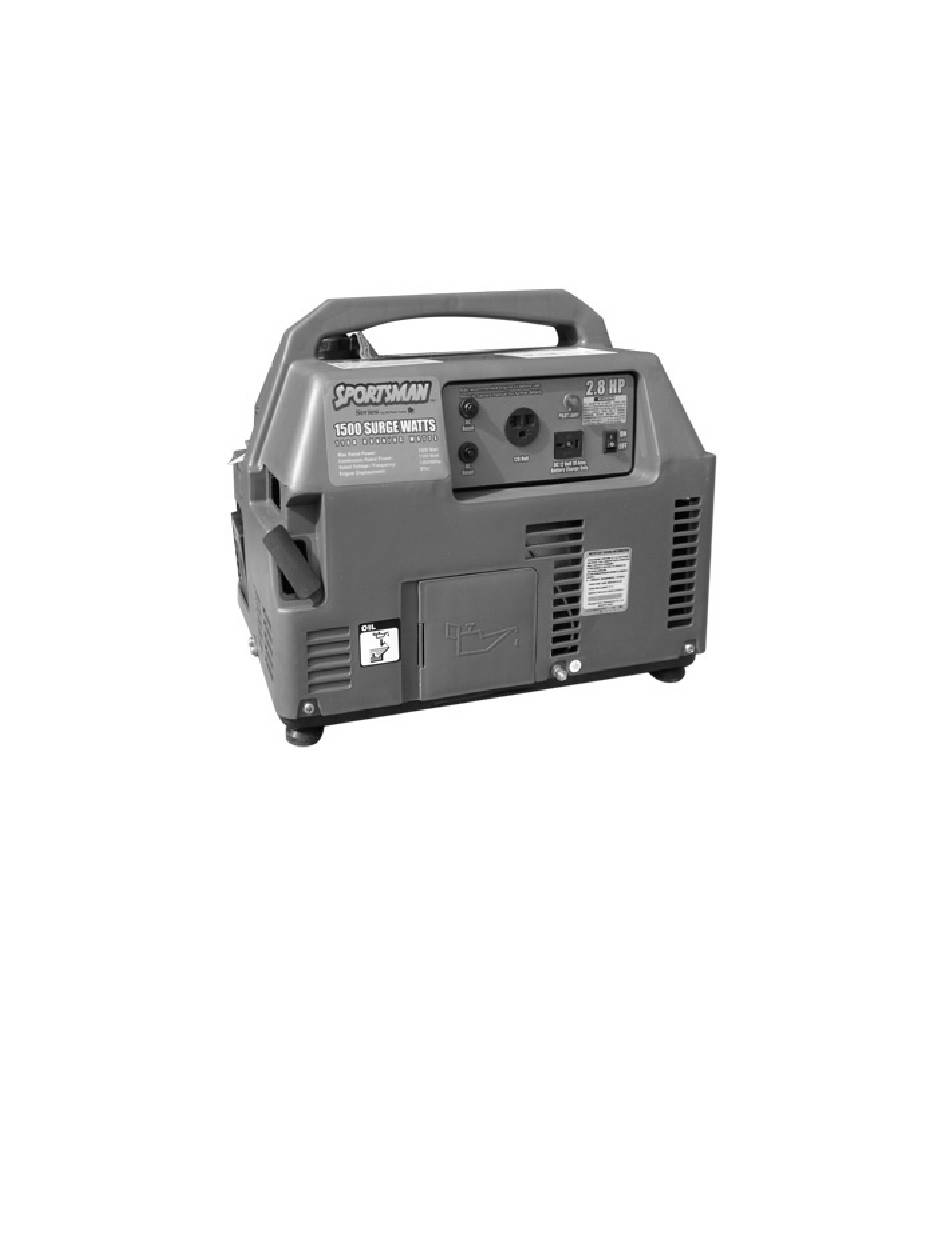

Model # GEN1100
1500 Surge Watts / 1100 Running Watts
PORTABLE GENERATOR
INSTRUCTION MANUAL
Thank you for purchasing this Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator. This manual provides important
information on properly operating and maintaining this Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator. Every effort
has been made to ensure the accuracy of this manual. We reserve the right to change this product at any time without prior notice.
This manual contains important information regarding safety, operation, maintenance and storage of this product. Before use, read carefully and
understand all warnings, cautions, instructions and labels. Failure to do so could result in serious personal injury, property damage or even death.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
STOP!
DO NOT RETURN THIS GENERATOR TO THE RETAILER.
Questions? Problems? CONTACT CUSTOMER SERVICE.
If you experience a problem or need to return this generator for repair, call our customer help line at 1-866-460-9436, Monday-Friday,
8 AM - 4 PM Central Time. A copy of the sales receipt is required.
1
Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator
Advertisement
Table of Contents
Related Manuals for Sportsman GEN1100
Summary of Contents for Sportsman GEN1100
- Page 1 INSTRUCTION MANUAL Thank you for purchasing this Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator. This manual provides important information on properly operating and maintaining this Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator. Every effort has been made to ensure the accuracy of this manual.
- Page 2 Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator FEATURES: 4-Stroke OHV Engine • Recoil Start • Automatic Low Oil Shutdown • • 1-120 Volt AC Outlet • 1-12 Volt DC Outlet Engine Run Time: 5 Hours@50% Load •...
-
Page 3: Table Of Contents
Recommended Maintenance Schedule ........................18 Cleaning The Generator ............................18 Checking The Oil Level............................19 Changing/Adding Oil.............................19 Air Filter Maintenance............................20 Spark Plug Maintenance............................20 Emptying The Fuel Tank............................20 STORAGE/TRANSPORT PROCEDURES........................21 TROUBLESHOOTING..............................22 WIRING DIAGRAM................................23 Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator... -
Page 4: Recognize Safety Symbols, Words And Labels
CAUTION used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage. Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator... - Page 5 • Empty the fuel tank before storing or transporting this generator. • Always handle fuel outdoors. • Before transporting, turn the fuel valve to the “OFF” position and disconnect the spark plug. Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator...
- Page 6 • Do not operate an excessive number of electrical devices in excess of the wattage capacity of this generator. • Do not turn on electrical devices until after they are connected to this generator. • Turn off all connected electrical devices before stopping this generator. Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator...
- Page 7 Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator...
- Page 8 In addition to the previously described safety information, familiarize yourself with all safety and hazard placards on this generator. Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator...
-
Page 9: Package Contents
PACKAGE CONTENTS The following items are supplied with this Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator. Verify that all items are included. STOP! If there are missing items, call 1-866-460-9436, Monday - Friday, 8 AM - 4 PM Central Time for customer service. DO NOT RETURN THIS GENERATOR TO THE RETAILER. -
Page 10: Components
8) Fuel Cock 9) DC Circuit Reset 10) AC Circuit Reset 11) 120 Volt AC Output Socket 12) 12 Volt DC Output Socket 13) Ignition Switch 14) Pilot Lamp Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator... -
Page 11: Preparing The Generator For Use
The correct quantity of oil is equal to the oil capacity of the engine crankcase and is 13.5 fluid oz (0.40 L) for this Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator. Add the correct quantity of oil before operating this generator for the first time. -
Page 12: Step 2 - Add Gasoline
Grounding codes can vary by location. Contact a local electrician for information on grounding regulations for your area. Figure 3 The Grounding Terminal is located on the front of the generator, to the right of the Oil Access Panel Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator... -
Page 13: Subsequent Use Of This Generator
• Never use a mixture of oil and gasoline. • Avoid getting dirt and/or water in the fuel tank. • Never store generator for extended time with gasoline in the fuel tank. Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator... -
Page 14: Starting The Generator
Allowing gasoline to sit in this generator's fuel tank for extended time without use can increase the difficulty in starting this generator in the future. Never store this generator for extended time with gasoline in the fuel tank. Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator... -
Page 15: Using The Generator
Electrical devices running on AC current may be connected according to their wattage requirements. The rated (running) and surge wattage for this Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator is 1100 and 1500, respectively. Model GEN1100 Rated (Running) Wattage... - Page 16 4. Turn on the connected electrical devices beginning with the device with the highest rated wattage requirement and then each additional device with the next lower rated wattage requirement. Do not connect 50Hz or 3-phase loads to this generator. Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator...
-
Page 17: Dc Usage
• If battery acid gets in the eyes, flush with water and immediately call a physician. • If battery acid is swallowed, drink large quantities of milk and immediately call a physician. Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator... -
Page 18: Stopping The Generator
5. Confirm that the oil filler/dipstick cap is properly in place when finished verifying the oil level. Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator... -
Page 19: Checking The Oil Level
The oil level in this generator should be checked before each use. (See Figure 9.) When the oil level is low, add oil until the level is sufficient to operate this generator. The oil capacity for this Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator engine is 13.5 fluid oz. (0.4 L). To drain the oil from this generator: It is necessary to drain the oil from the crankcase only if it has become contaminated with water and/or dirt. -
Page 20: Air Filter Maintenance
6. Turn the fuel valve to the “off” position. 7. Replace the fuel filter cup. 8. Store the drained gasoline in a suitable place. Do not store gasoline for more than 3 months. Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator... -
Page 21: Storage/Transport Procedures
Empty the fuel tank. (See “Emptying the Fuel Tank” in the “Maintenance/Care” section.) 1 year or more Empty the fuel tank. (See “Emptying the Fuel Tank” in the “Maintenance/Care” section.) Disconnect the spark plug. Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator... -
Page 22: Troubleshooting
Short in one of the connected devices. Disconnect any faulty or short-circuited electrical loads. Air filter is dirty. Clean or replace air filter. Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator... -
Page 23: Wiring Diagram
MODEL GEN1100 1500 SURGE WATTS / 1100 RUNNING WATTS PORTABLE GENERATOR WIRING DIAGRAM ENGINE ENG.SW. ENGINE SW ITCH BLACK AND WHITE SPARK PLUG AUXILIARY WINDING BLACK GENERATOR CHARGING WINDING GREEN D1/D2 RECTIFIER PILOT LAMP AC BR AC BREAKER AC SOCKET... - Page 24 Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator...
- Page 25 Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator...
- Page 26 Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator...
- Page 27 Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator...
- Page 28 Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator...
- Page 29 Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator...
- Page 30 Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator...
- Page 31 GEN1100201002 Model GEN1100 1500 Surge Watts / 1100 Running Watts Portable Generator...
