Sportsman GEN2000I Instruction Manual

Sportsman GEN2000I Instruction Manual

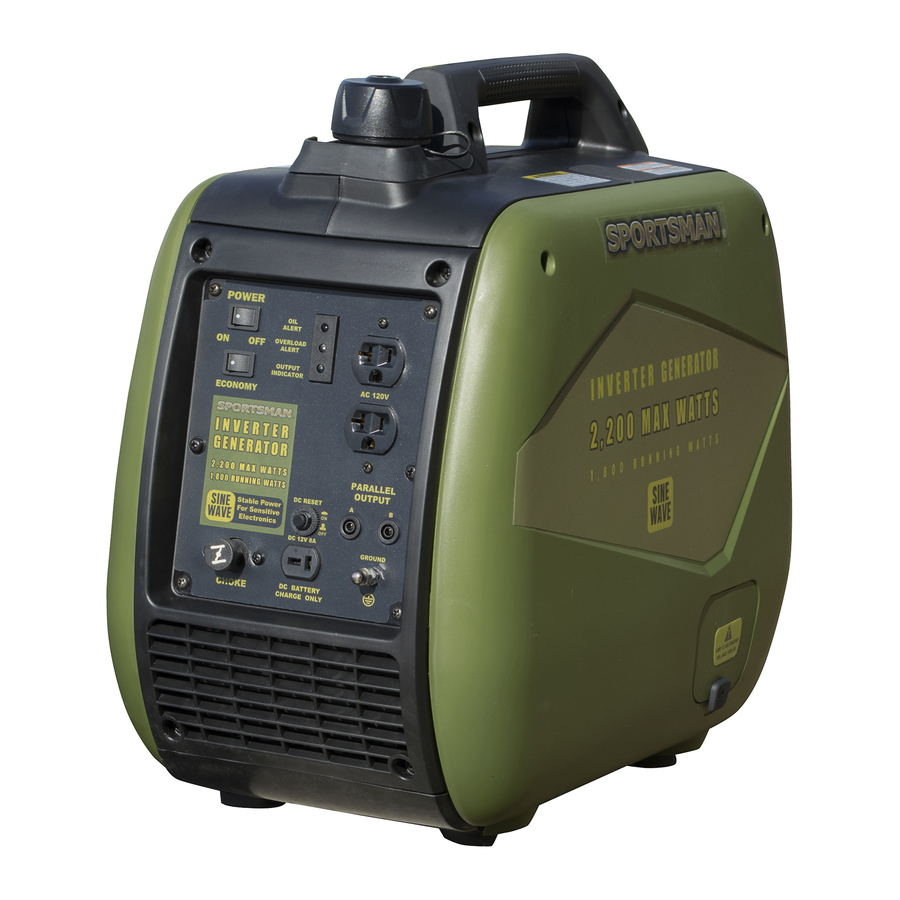

2200 surge watts/1800 running watts gasoline inverter
Hide thumbs Also See for GEN2000I:

Advertisement

Item # GEN2000I
Q
2200 SURGE WATTS / 1800 RUNNING WATTS
GASOLINE INVERTER
PORTABLE GENERATOR
INSTRUCTION MANUAL
READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT.
This manual provides important information on proper operation & maintenance. Every effort has been
made to ensure the accuracy of this manual. These instructions are not meant to cover every possible
condition and situation that may occur. We reserve the right to change this product at any time without
prior notice.
IF THERE IS ANY QUESTION ABOUT A CONDITION BEING SAFE OR UNSAFE,
DO NOT OPERATE THIS PRODUCT!
Visit our website for Frequently Asked Questions http://sportsmanseriesbrand.com
DO NOT RETURN THIS GENERATOR TO THE RETAILER!
If you experience a problem, have questions or need parts for this product, call Customer Service at
1-866-460-9436, Monday-Friday, 8 AM - 4 PM Central Time. A copy of the sales receipt is required.
FOR CONSUMER USE ONLY – NOT FOR PROFESSIONAL USE.
KEEP THIS MANUAL, SALES RECEIPT & APPLICABLE WARRANTY FOR FUTURE
REFERENCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GEN2000I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sportsman GEN2000I

  • Page 1 Item # GEN2000I 2200 SURGE WATTS / 1800 RUNNING WATTS GASOLINE INVERTER PORTABLE GENERATOR INSTRUCTION MANUAL READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT. This manual provides important information on proper operation & maintenance. Every effort has been made to ensure the accuracy of this manual. These instructions are not meant to cover every possible condition and situation that may occur.
  • Page 2 Generator exhaust contains carbon monoxide (CO). This is a poison you cannot see or smell. If you can smell the generator exhaust, you are breathing CO. But even if you cannot smell the exhaust, you could be breathing CO. GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 3 Model GEN2000I 2200 Surge Watts / 1800 Running Watts This unit is a Gasoline Fuel powered Inverter generator. FEATURES: • 2200 Surge Output / 1800 Running Watts • 120V Operation • 3.0 HP Engine, 4 Stroke , 4650 RPM • Displacement (CC): 79.7 •...
  • Page 4: Table Of Contents

    Fuel Tank Usage & Maintenance ........................... 23 STORAGE/TRANSPORT PROCEDURES ........................23 TROUBLESHOOTING ..............................24 SPECIFICATIONS ................................25 PARTS DIAGRAM ................................26 WIRING DIAGRAM ................................30 EMISSIONS CONTROL SYSTEM WARRANTY ......................31 GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 5: Recognize Safety Symbols, Words And Labels

    Consult a qualified electrician, electrical inspector, and/or the local agency having jurisdiction. Some areas require generators to be registered with local utility companies. Additional regulations may apply if this generator will be used at a construction site. GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 6 Avoid the use of extension cords if possible. If you choose to use them, be sure they are sized adequately to handle the flow of electricity. An undersized cord can overheat, short out and cause a fire. GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 7 Prolonged exposure to high noise levels can be hazardous to hearing. Always wear ANSI-approved hearing protection when operating or working around the generator when it is running. GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 8 GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 9 In addition to the previously described safety information, familiarize yourself with all safety and hazard notices on this generator. GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 10: Package Contents

    PACKAGE CONTENTS The following items are supplied with this Model GEN2000I Portable Gasoline Inverter Generator. Verify that all items are included. STOP! If there are missing items, call 1-866-460-9436, Monday - Friday, 8 AM - 4 PM Central Time for customer service. DO NOT RETURN THIS GENERATOR TO THE RETAILER.
  • Page 11: Components

    Consult with a qualified electrician to ensure compliance with local electrical codes. ATTENTION: The Air-fuel Mixer is not adjustable. Tampering with the governor can damage your generator and electrical devices, and will void your warranty. GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 12: Preparing The Generator For Use

    When the engine crankcase is full, the oil level should reach all the way up to the threads as illustrated in Figure 2. 4. Replace the oil filler/dipstick cap. Oil Filler Hole Figure 1 - Unscrew the Oil Cap Figure 2 - Add Oil To TOP Of Threads GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 13: Step 2 - Connect Fuel

    Disconnect all electrical loads from the generator set before starting the engine. The generator may be hard to start if a load is connected. Step 6 DC OUTPUT no load connected. Closed Open GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 14: Step 3 - Ground The Generator

    5. Confirm that the oil filler/dipstick cap is properly screwed in place when finished verifying the oil level. Model GEN2000I Oil Capacity 13.5 ounces Model GEN2000I Oil Type Recommended High Detergent Motor Oil, SAE10W-30 GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 15: Step 3 - Ground The Generator

    The choke is used to provide an enriched fuel mixture when starting a cold engine. It can be opened and closed by operating the choke rod manually. Pull the rod out toward CLOSED to enrich the mixture for cold starting GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 16: Using The Generator

    (27 inch color) electric water heater (40 gallon) 4000 window air conditioner (10000 BTU) 1200 1800 window fan Figure 7 - Estimated wattage requirements for common electrical devices. GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 17 Economy Switch is in the OFF position before starting. Turn the Economy Switch to the ON position after the engine has warmed up for 2 or 3 minutes GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 18: Ac Parallel Usage

    Turning Off Generators while in Parallel Function 1. Disconnect or turn off item plugged into parallel receptacle. 2. Turn off both generators. 3. Carefully disconnect the parallel cables from both generators GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 19: Dc Usage

    2. Allow this generator to run for several more minutes with no electrical devices connected to help stabilize the temperature of this generator. 3. Turn off the engine switch. Allow this generator to cool down before touching areas that become hot during operation. GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 20: Maintenance/Care

    (see “Changing/Adding Oil” in this section of this manual). 5. Confirm that the oil filler/dipstick cap is properly in place when finished verifying the oil level. GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 21: Changing/Adding Oil

    When the engine crankcase is full, the oil level should reach the lower lip of the oil filling opening as shown in Figure 12. Model GEN2000I Oil Capacity 13.5 ounces Model GEN2000I Oil Type Recommended High Detergent Motor Oil, SAE10W-30 Figure 12 - Adding Oil GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 22: Air Filter Maintenance

    GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 23: Spark Arrestor

    GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 24: Troubleshooting

    Troubleshooting GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 25: Specifications

    Ignition System Starting System Recoil Bore* Stroke (mm) 48.6x43.0 Continuous Operating Hours Run time = 7 hrs @ 50% load Gasoline fuel Oil Capacity (SAE10W-30) 13.5 ounces GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 26: Parts Diagram

    PARTS DIAGRAM GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 27 GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 28 PARTS DIAGRAM GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 29 PARTS DIAGRAM GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 30: Wiring Diagram

    GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 31: Emissions Control System Warranty

    (4) Repair or replacement of any warranted part under the warranty provisions herein must be performed at a warranty station at no charge to the owner. (5) Notwithstanding the provisions herein, warranty services or repair will be provided at all of our distribution centers that are franchised to service the subject engines. GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
  • Page 32 (e) Fuel tank (7) Miscellaneous items used in above systems including: (a) Switches (b) Hoses, belts connectors and assemblies (8) Air injection system (a) Pulse valve 201804 GEN2000I 2200 Surge Watt / 1800 Running Watt Portable Gasoline Inverter Generator Manual...
