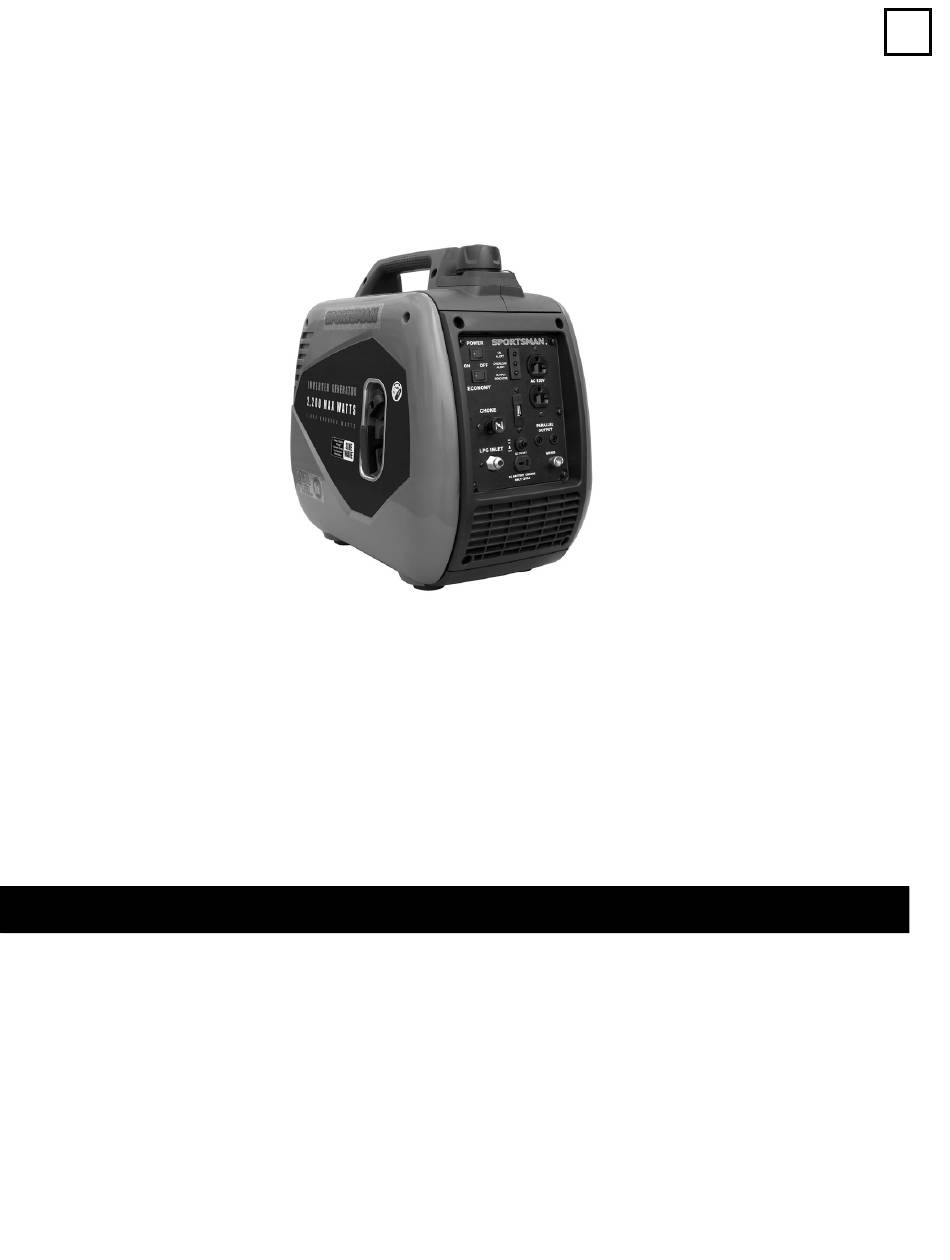

GEN2200DFI
Q
2200 SURGE WATTS / 1800 RUNNING WATTS
DUAL FUEL LPG LIQUID PROPANE & GASOLINE
INVERTER PORTABLE GENERATOR
INSTRUCTION MANUAL
READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT.
This manual provides important information on proper operation & maintenance. Every effort has been
made to ensure the accuracy of this manual. These instructions are not meant to cover every possible
condition and situation that may occur. We reserve the right to change this product at any time without
prior notice.
IF THERE IS ANY QUESTION ABOUT A CONDITION BEING SAFE OR UNSAFE,
DO NOT OPERATE THIS PRODUCT!
Visit our website for Frequently Asked Questions http://sportsmanseriesbrand.com
DO NOT RETURN THIS GENERATOR TO THE RETAILER!
If you experience a problem, have questions or need parts for this product, call Customer Service at
1-866-460-9436, Monday-Friday, 8 AM - 4 PM Central Time. A copy of the sales receipt is required.
FOR CONSUMER USE ONLY – NOT FOR PROFESSIONAL USE.
KEEP THIS MANUAL, SALES RECEIPT & APPLICABLE WARRANTY FOR FUTURE
REFERENCE.
Advertisement
Table of Contents
Related Manuals for Sportsman GEN2200DFI
Summary of Contents for Sportsman GEN2200DFI
- Page 1 GEN2200DFI 2200 SURGE WATTS / 1800 RUNNING WATTS DUAL FUEL LPG LIQUID PROPANE & GASOLINE INVERTER PORTABLE GENERATOR INSTRUCTION MANUAL READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT. This manual provides important information on proper operation & maintenance. Every effort has been made to ensure the accuracy of this manual.
- Page 2 CO. But even if you cannot smell the exhaust, you could be breathing CO. GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual...
- Page 3 This warranty gives you specific legal rights, and you may have other rights that vary state to state GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual...
-
Page 4: Table Of Contents
STORAGE/TRANSPORT PROCEDURES ........................23 TROUBLESHOOTING ..............................24 SPECIFICATIONS ................................25 PARTS DIAGRAM ................................26 WIRING DIAGRAM ................................30 EMISSIONS CONTROL SYSTEM WARRANTY ......................31 GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual... -
Page 5: Recognize Safety Symbols, Words And Labels
Consult a qualified electrician, electrical inspector, and/or the local agency having jurisdiction. Some areas require generators to be registered with local utility companies. Additional regulations may apply if this generator will be used at a construction site. GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual... - Page 6 • Keep at least several feet of clearance on all sides of this generator during operation. Do not enclose this generator in any structure. GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual...
- Page 7 Prolonged exposure to high noise levels can be hazardous to hearing. Always wear ANSI-approved hearing protection when operating or working around the generator when it is running. GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual...
- Page 8 GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual...
- Page 9 In addition to the previously described safety information, familiarize yourself with all safety and hazard notices on this generator. GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual...
-
Page 10: Package Contents
PACKAGE CONTENTS The following items are supplied with this Model GEN2200DFI Portable LP & Gasoline Generator. Verify that all items are included. STOP! If there are missing items, call 1-866-460-9436, Monday - Friday, 8 AM - 4 PM Central Time for customer service. DO NOT RETURN THIS GENERATOR TO THE RETAILER. -
Page 11: Components
The Air-fuel Mixer is not adjustable. Tampering with the governor can damage your generator and electrical devices, and will void your warranty. GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual... -
Page 12: Using This Generator For The First Time
4. Replace the oil filler/dipstick cap. Oil Filler Hole Figure 1 - Unscrew the Oil Cap Figure 2 - Add Oil To TOP Of Threads GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual... -
Page 13: Step 2 - Connect Fuel
Disconnect all electrical loads from the generator set before starting the engine. The generator may be hard to start if a load is connected. Step 6 DC OUTPUT no load connected. Closed Open Regulator GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual... -
Page 14: Step 3 - Ground The Generator
5. Confirm that the oil filler/dipstick cap is properly screwed in place when finished verifying the oil level. Model GEN2200DFI Oil Capacity 12 ounces Model GEN220DFI Oil Type Recommended High Detergent Motor Oil, SAE10W-30 GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual... -
Page 15: Step 3 - Ground The Generator
The choke is used to provide an enriched fuel mixture when starting a cold engine. It can be opened and closed by operating the choke rod manually. Pull the rod out toward CLOSED to enrich the mixture for cold starting GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual... -
Page 16: Using The Generator
(40 gallon) 4000 window air conditioner (10000 BTU) 1200 1800 window fan Figure 7 - Estimated wattage requirements for common electrical devices. GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual... - Page 17 Economy Switch is in the OFF position before starting. Turn the Economy Switch to the ON position after the engine has warmed up for 2 or 3 minutes GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual...
-
Page 18: Ac Parallel Usage
1. Disconnect or turn off item plugged into parallel receptacle. 2. Turn off both generators. 3. Carefully disconnect the parallel cables from both generators GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual... -
Page 19: Dc Usage
4. If using Propane, turn the propane tank fuel valve to the “off” position. Allow this generator to cool down before touching areas that become hot during operation. GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual... -
Page 20: Maintenance/Care
(see “Changing/Adding Oil” in this section of this manual). 5. Confirm that the oil filler/dipstick cap is properly in place when finished verifying the oil level. GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual... -
Page 21: Changing/Adding Oil
Model GEN2200DFI Oil Capacity 12 ounces Model GEN2200DFI Oil Type Recommended High Detergent Motor Oil, SAE10W-30 Figure 12 - Adding Oil GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual... -
Page 22: Air Filter Maintenance
GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual... -
Page 23: Spark Arrestor
GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual... -
Page 24: Troubleshooting
Troubleshooting GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual... -
Page 25: Specifications
SPECIFICATIONS GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LPG Liquid Propane Gas & Gasoline Invertor Generator Generator Type Revolving Magnetic Field, Self Exciting, Multi-Pole, Single Phase AC Output Rated Wattage (W) 1800 Surge Wattage (W) 2200... -
Page 26: Parts Diagram
PARTS DIAGRAM GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual... - Page 27 GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual...
- Page 28 Connection Cabel,DC protector 35120422003000 DC Connecting Cable (American) 35080422003000 Ground Wire5-5 35090422003000 Ground Wire5-6 32090422003000 Ground Wire6-6 22070421202000 AC Connecting Cable GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual...
- Page 29 GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual...
-
Page 30: Wiring Diagram
GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual... -
Page 31: Emissions Control System Warranty
(3) Any warranted part that is scheduled for replacement as required maintenance in your Owners Manual is warranted for the period of time before the first scheduled GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual... - Page 32 (7) Miscellaneous items used in above systems including: (a) Switches (b) Hoses, belts connectors, and assemblies (8) Air injection system (a) Pulse valve 201707 GEN2200DFI 2200 Surge Watt / 1800 Running Watt Portable Dual Fuel LP Liquid Propane & Gasoline Inverter Generator Manual...
