Sportsman GEN4000TRI Instruction Manual
Hide thumbs Also See for GEN4000TRI:

Advertisement

Quick Links

ITEM # GEN4000TRI
SF
4000 SURGE WATTS / 3500 RUNNING WATTS
TRI FUEL: LPG LIQUID PROPANE, GASOLINE, NATURAL GAS

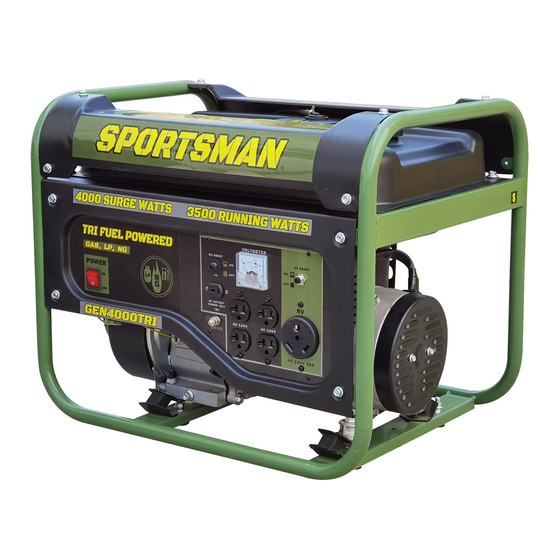

PORTABLE GENERATOR
INSTRUCTION MANUAL
READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT.
This manual provides important information on proper operation & maintenance. Every effort has been made to ensure the
accuracy of this manual. These instructions are not meant to cover every possible condition and situation that may occur.
We reserve the right to change this product at any time without prior notice.
H A V E Q U E S T IO N S OR P R O B L E M S ? C O N T A C T C U S T O M E R S E R V IC E
If you experience a problem or need parts, call customer service at 1-866-460-9436, Monday-Friday,
8 AM - 4 PM Central Time. A copy of the sales receipt is required. IF THERE IS ANY QUESTION ABOUT A
CONDITION BEING SAFE OR UNSAFE, DO NOT OPERATE THIS PRODUCT!
FOR CONSUM ER USE ONLY – NOT FOR PROFESSIONAL USE.
KEEP THIS M ANUAL, SALES RECEIPT & APPLICABLE W ARRANTY FOR FUTURE
REFERENCE.
ATTENTION: OIL IS NOT INCLUDED WITH THE GENERATOR
AND MUST BE ADDED BEFORE FIRST USE.
ATTENTION: THIS GENERATOR IS NOT INTENDED TO
POWER MEDICAL DEVICES OR LIFE SUPPORT APPLIANCES.
ATTENTION: FOLLOW ENGINE BREAK-IN PROCEDURE FOR
FIRST 20 HOURS OF USE.
ATTENTION: DO NOT EXCEED MAX WATTAGE CAPACITY,
OTHERWISE DAMAGE CAN OCCUR TO GENERATOR AND/OR
APPLIANCES. FOLLOW WATTAGE GUIDE TO DETERMINE
PROPER STARTING & RUNNING WATTS.
To register your product warranty, please visit buffalotools.com or scan the QR code.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GEN4000TRI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sportsman GEN4000TRI

  • Page 1 ITEM # GEN4000TRI 4000 SURGE WATTS / 3500 RUNNING WATTS TRI FUEL: LPG LIQUID PROPANE, GASOLINE, NATURAL GAS PORTABLE GENERATOR INSTRUCTION MANUAL READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT. This manual provides important information on proper operation & maintenance. Every effort has been made to ensure the accuracy of this manual.
  • Page 2 This warranty gives you specific legal rights, and you may have other rights that vary state to state Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 3 WARNING: Natural gas is highly explosive. Even the slightest spark can ignite and cause explosion. No leakage of fuel is permitted. Natural Gas, which is lighter than air, tends to collect in high areas. Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 4: Table Of Contents

    PARTS DIAGRAM ................................25 WIRING DIAGRAM ................................31 EMISSIONS CONTROL SYSTEM WARRANTY ......................32 CARBON DIOXIDE WARNING DETECTOR ........................33 Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 5: Recognize Safety Symbols, Words And Labels

    Additional regulations may apply if this generator will be used at a construction site. Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 6 Avoid the use of extension cords if possible. If you choose to use them, be sure they are sized adequately to handle the flow of electricity. An undersized cord can overheat, short out and cause a fire. Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 7 Prolonged exposure to high noise levels can be hazardous to hearing. Always wear ANSI-approved hearing protection when operating or working around the generator when it is running. Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 8 Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 9 In addition to the previously described safety information, familiarize yourself with all safety and hazard notices on this generator. Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 10: Package Contents

    PACKAGE CONTENTS The following items are supplied with this Model GEN4000TRI Portable LP & Gasoline & NG Generator. Verify that all items are included. STOP! If there are missing items, call 1-866-460-9436, Monday - Friday, 8 AM - 4 PM Central Time for customer service. DO NOT RETURN THIS GENERATOR TO THE RETAILER.
  • Page 11: Components

    The Air-fuel Mixer is not adjustable. Tampering with the governor can damage your generator and electrical devices, and will void your warranty. Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 12: Preparing The Generator For Use

    Oil Filler Hole Figure 1 - Unscrew the Oil Cap Figure 2 - Add Oil To TOP Of Threads Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 13: Step 2 - Connect Fuel

    Step 6 DC OUTPUT no load connected. Fig 3: gas inlet Fig 4: LPG/NG adapter Fig 5: LPG/NG adapter Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 14: Step 3 - Ground The Generator

    5. Confirm that the oil filler/dipstick cap is properly screwed in place when finished verifying the oil level. GEN4000TRI Oil Capacity 18.5 ounces GEN4000TRI Oil Type Recommended High Detergent Motor Oil, SAE10W-30 Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 15: Step 3 - Ground The Generator

    Push the lever toward CLOSED TO START position to enrich the mixture for cold starting Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 16: Using The Generator

    (27 inch color) electric water heater (40 gallon) 4000 window fan Figure 7 - Estimated wattage requirements for common electrical devices. Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 17 6000 3600 7200 4800 9600 NR = Not Recommended. Figure 9 - Maximum Extension Cord Lengths by Power Requirement Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 18: Dc Usage

    4. Turn off the engine switch. Allow this generator to cool down before touching areas that become hot during operation. Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 19: Maintenance/Care

    (see “Changing/Adding Oil” in this section of this manual). Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 20: Changing/Adding Oil

    18.5 ounces Model GEN4000TRI Oil Type Recommended High Detergent Motor Oil, SAE10W-30 Figure 13 Figure 14 - Adding Oil Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 21: Air Filter Maintenance

    6. Screw the spark plug back into place on this generator by using the included spark plug wrench. 7. Replace the spark plug cap. Figure 17 Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 22: Storage/Transport Procedures

    1 year or more Empty the fuel tank. (See “Emptying the Fuel Tank” in the “Maintenance/Care” section.) Disconnect the spark plug. Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 23: Troubleshooting

    Look for the burn spots on the back side of the AVR. If there is burn spots, replace the AVR. Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 24: Specifications

    PARTS DIAGRAM Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 25 Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 26 Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 27 Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 28 Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 29 Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 30 Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 31: Wiring Diagram

    (5) Notwithstanding the provisions herein, warranty services or repair will be provided at all of our distribution centers that are franchised to service the subject engines. Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 32: Emissions Control System Warranty

    (7) Miscellaneous items used in above systems including: (a) Switches (b) Hoses, belts connectors and assemblies (8) Air injection system (a) Pulse valve Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
  • Page 33: Carbon Dioxide Warning Detector

    The user must take action to move and re-direct these devices to better dissipate Carbon Monoxide far away from personnel and occupied buildings. 202111 Item # GEN4000TRI 4000 Surge Watt / 3500 Running Watt Portable Tri Fuel LP Liquid Propane, Gasoline, Natural Gas Generator Manual...
