- Page 1 REVEAL 1192 ™ LIFT COFFEE TABLE INSTRUCTION MANUAL LET’S GET STARTED. DESIGN MATTHEW WEATHERLY...

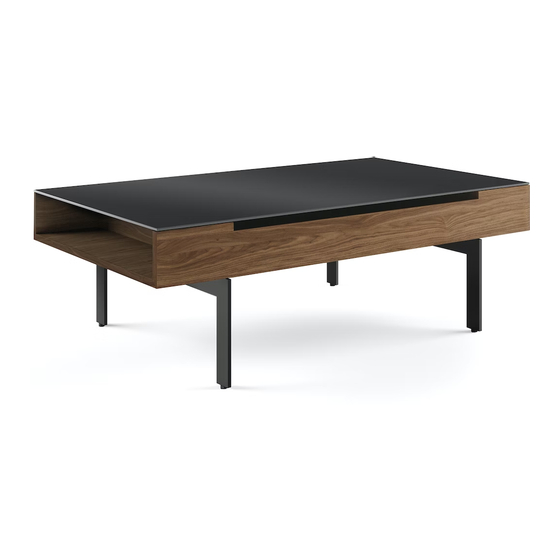

- Page 3 Congratulations on the purchase of your Reveal Lift Coffee Table 1192 from BDI. Your coffee table has been designed to provide a lifetime of enjoyment. This manual will provide you with assembly instructions and other helpful information to ensure that you get the most out of your product.
- Page 4 HARDWARE AND COMPONENTS Unpack and identify the parts listed below. The assembly workspace should be a non-marring surface such as carpet. For missing hardware pieces, please contact BDI Customer Service at customerservice@bdiusa.com. Do not use power tools for the assembly of this product.
- Page 5 STEP 1. REMOVE CARDBOARD END CAPS ASSEMBLY Making sure the glass tabletop is facing up, remove the cardboard end caps and microfilm. IMPORTANT! Save the end caps. Open the glass lid by lifting and pulling forward. Remove the inner carton. Close the tabletop.
- Page 6 ASSEMBLY STEP 2. ATTACH LEG PLATES Attach two (C1) Leg Plates to the tops of the PART/DESCRIPTION (C2) Legs using (H1) Screws. Tighten with (T1) Hex Wrench. T1-HEX WRENCH H1-SCREW 6 | BDIUSA.COM REVEAL 1192...
-
Page 7: Step 3. Attach Legs
2 PERSON TASK STEP 3. ATTACH LEGS ASSEMBLY With help from another person, carefully rotate PART/DESCRIPTION (C3) Cabinet onto its back, making sure that the cardboard end caps stay in place (to prevent the tabletop from opening by itself). T1-HEX WRENCH Attach both Legs as shown using 16 (H2) Screws. -
Page 8: Fine Tuning
NOTICE! Objects placed in the indicated areas will interfere with the closing of the lift mechanism. Maximum height of objects in the center storage compartment should not exceed 2 1/2" 64mm. Do not place objects in lift mechanism area 8 | BDIUSA.COM REVEAL 1192... - Page 9 FINE TUNING LIFT & LEVEL TABLE CAUTION! Do not move the table with the tabletop in its extended position. Moving the table by its base is recommended. Position the table approximately 12"–14" away from your sofa with the finger slot facing the opening direction.
-
Page 10: Care And Maintenance
While BDI’s stained wood finishes are stable in tone & appearance, all finishes are subject to some degree of discoloration with prolonged exposure to direct sunlight. Please take care to avoid positioning your BDI cabinet in any area with extensive direct sunlight. -
Page 11: Warranty
WARRANTY BDI warrants to the original purchaser that for the below-stated warranty term, BDI will repair or replace any product, part, or component covered by this warranty that fails under normal use as a result of a defect in material or workmanship. BDI will repair or replace the aforementioned product, part or component with a comparable product, part or component. - Page 12 These distinctive product configurations are protected by US and international patents, trade dress, and/or copyright laws. Reveal & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2021, BDI | V.11.01.2021 Made in Turkey.
