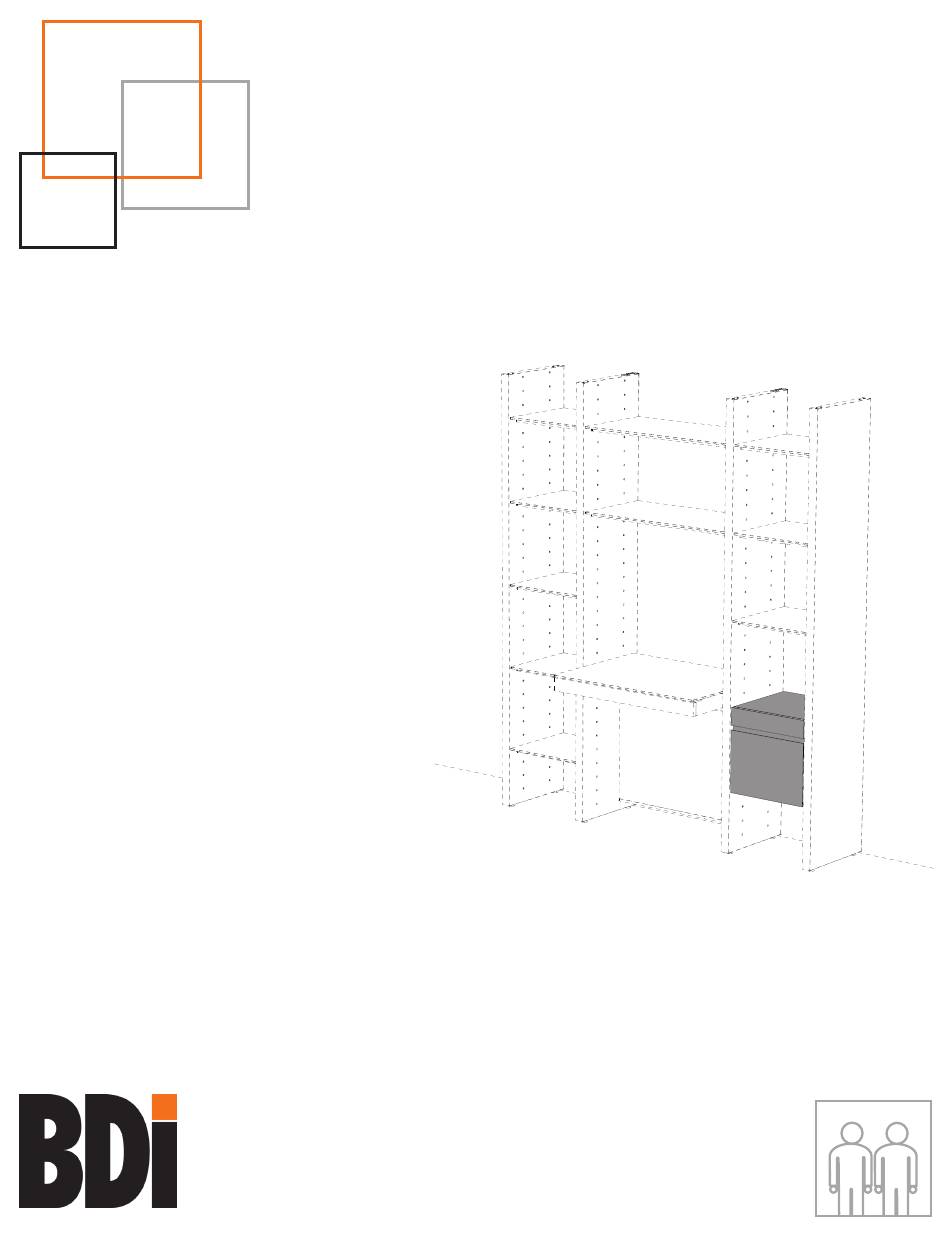

- Page 1 S E M B L A N C E M O D U L A R S Y S T E M COMPONENT ASSEMBLY INSTRUCTIONS OFFICE DRAWER MODULES 15030 15031 & B D I U S A . C O M TWO PERSON ASSEMBLY...
- Page 2 Refer to the Cabinet Assembly section (page 17) in the Main Instruction Booklet for proper installation of the Two-Drawer Files while implementing and replacing the following steps. BEFORE STEP 3 (PAGE 18): Pull the Top Drawer as far out as it will go. Locate the finger latch in the rail of the slide on each side of the Drawer.
- Page 3 REPLACES STEP 4 (PAGE 19) IN MAIN ASSEMBLY INSTRUCTIONS: Slide the File Drawer all the way open to access the through holes that attach the Cabinet Body to the Panel with the Screws (K). AFTER STEP 5 (PAGE 19): Pull the slide rails in the Cabinet Body out slightly.
