Digitus DS-45320 User Manual

Digitus DS-45320 User Manual

4+1 port hdmi video switch
Hide thumbs

Advertisement

Table of Contents

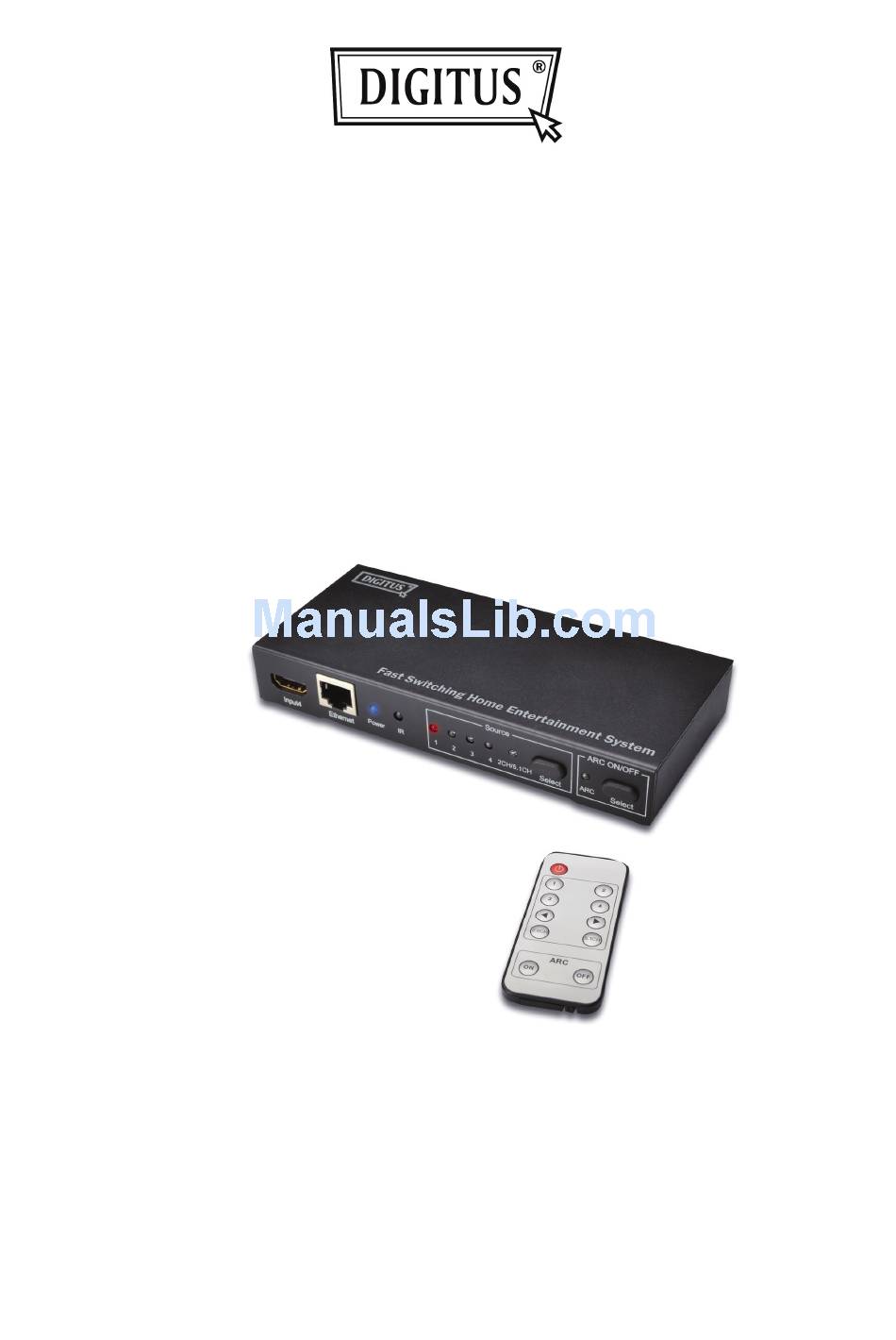

4+1 PORT
HDMI VIDEO SWITCH
User Manual
DS-45320

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-45320 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digitus DS-45320

Summary of Contents for Digitus DS-45320

  • Page 1 4+1 PORT HDMI VIDEO SWITCH User Manual DS-45320...

  • Page 2: Table Of Contents

    Table of Contents 1.0 Introduction ................. 1 2.0 Specifications ..............2 3.0 Package Contents .............. 2 4.0 Panel Descriptions ............. 3 5.0 Connection and Operation ..........4 １...

  • Page 3: Introduction

    DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. 1.0 INTRODUCTION It is a Home Entertainment System with very powerful functions. It supports 4 HDMI inputs and 1 HDMI output.

  • Page 4: Specifications

    2.0 SPECIFICATIONS Signal Inputs/Output Input DDC Signal 5 volts p-p (TTL) Input and Output Signal HDMI with HEAC,3D Output Audio Signal Toslink, Coaxial, Stereo Operating Frequency Vertical Frequency Range 50/60Hz Video Amplifier Bandwidth 2.25Gbps/225MHz Resolutions(HDTV) Interlaced(50&60Hz) 480i,576i,1080i Progressive(50&60Hz) 480p,576p,720p,1080p Mechanical Size(L-W-H) 157mm x 70mm x 23mm Weight(Net)

  • Page 5: Panel Descriptions

    4.0 PANEL DESCRIPTIONS 1. DC/5V Connect this port to Power Supply 2. Audio Port Connect the three ports to Amplifier Receiver, through Remote Control or button，you can select ARC ON or OFF. 2.1 Toslink and Coaxial Port When selecting ARC ON, Toslink and Coaxial will output audio from Sink device，such as HDTV with ARC.
  • Page 6 3. HDMI Output Connect this port to HDTV 4-7. HDMI Input Connect these ports to source devices. 8. Ethernet Connect this port to PC. When HDTV with HEC enables HEC function, PC will be connected to Ethernet. 9. Power LED When the switching is working, LED turns blue;...

  • Page 7: Connection And Operation

    5.0 CONNECTION AND OPERATION 5.1 CONNECTION 1) Connect HDMI input of the product to source devices. (Input cables are optional) 2) Connect HDMI output of the product to HDTV. 3) Connect audio port to Amplifier Receiver. 4) Connect Ethernet port to PC 5) Insert the DC side of 5V power supply into the unit and then connect the AC side of the power supply into the wall outlet.
  • Page 8 5.3 CONECTION DIAGRAM ７...
