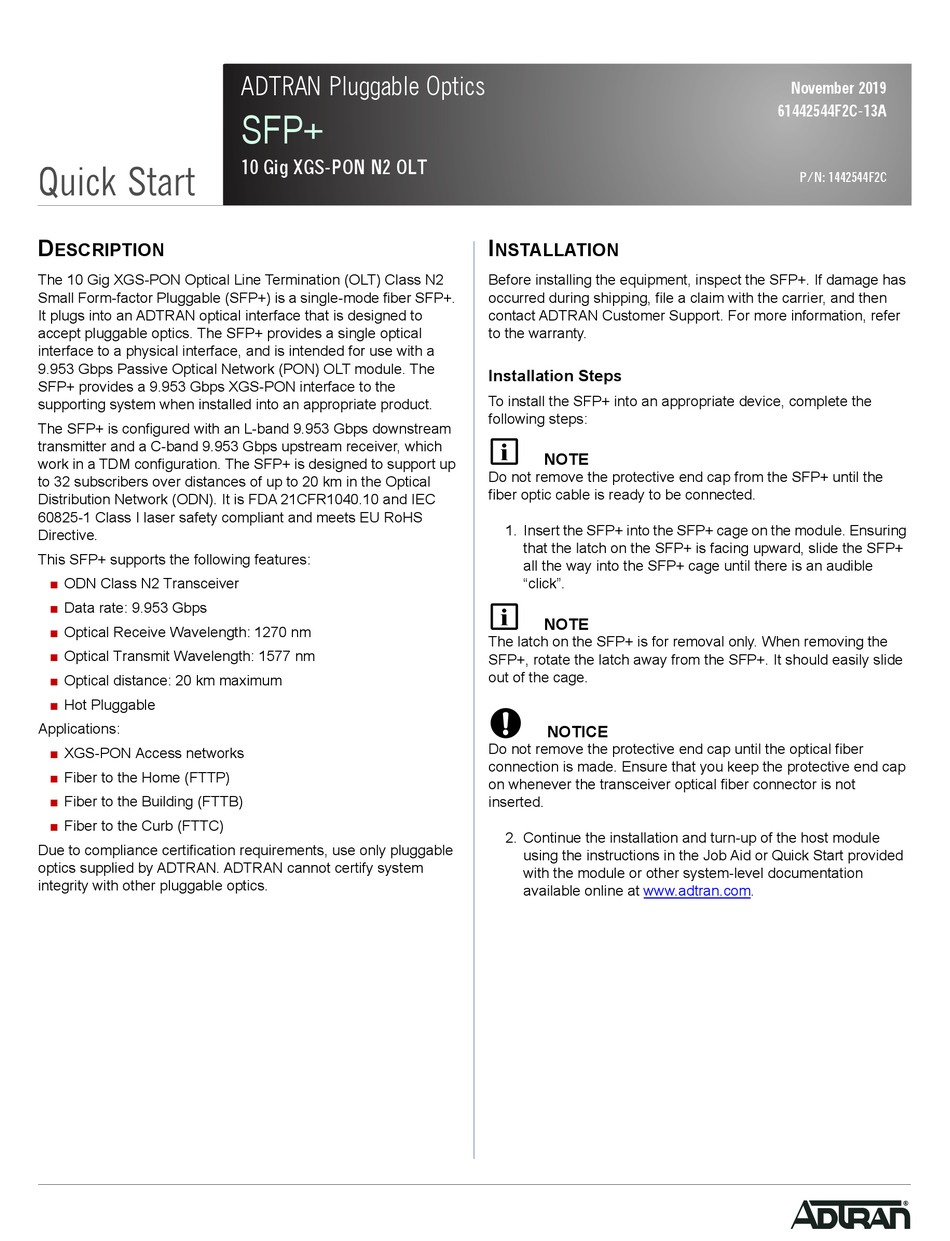

ADTRAN SFP+ 10 Gig XGS-PON N2 OLT Quick Start

Quick Start
D
ESCRIPTION
The 10 Gig XGS-PON Optical Line Termination (OLT) Class N2
Small Form-factor Pluggable (SFP+) is a single-mode fiber SFP+.
It plugs into an ADTRAN optical interface that is designed to
accept pluggable optics. The SFP+ provides a single optical
interface to a physical interface, and is intended for use with a
9.953 Gbps Passive Optical Network (PON) OLT module. The
SFP+ provides a 9.953 Gbps XGS-PON interface to the
supporting system when installed into an appropriate product.
The SFP+ is configured with an L-band 9.953 Gbps downstream
transmitter and a C-band 9.953 Gbps upstream receiver, which
work in a TDM configuration. The SFP+ is designed to support up
to 32 subscribers over distances of up to 20 km in the Optical
Distribution Network (ODN). It is FDA 21CFR1040.10 and IEC
60825-1 Class I laser safety compliant and meets EU RoHS
Directive.
This SFP+ supports the following features:
■ ODN Class N2 Transceiver
■ Data rate: 9.953 Gbps
■ Optical Receive Wavelength: 1270 nm
■ Optical Transmit Wavelength: 1577 nm
■ Optical distance: 20 km maximum
■ Hot Pluggable
Applications:
■ XGS-PON Access networks
■ Fiber to the Home (FTTP)
■ Fiber to the Building (FTTB)
■ Fiber to the Curb (FTTC)
Due to compliance certification requirements, use only pluggable
optics supplied by ADTRAN. ADTRAN cannot certify system
integrity with other pluggable optics.
ADTRAN Pluggable Optics
SFP+
10 Gig XGS-PON N2 OLT
I
NSTALLATION
Before installing the equipment, inspect the SFP+. If damage has
occurred during shipping, file a claim with the carrier, and then
contact ADTRAN Customer Support. For more information, refer
to the warranty.
Installation Steps
To install the SFP+ into an appropriate device, complete the
following steps:
g
NOTE
Do not remove the protective end cap from the SFP+ until the
fiber optic cable is ready to be connected.
1. Insert the SFP+ into the SFP+ cage on the module. Ensuring
that the latch on the SFP+ is facing upward, slide the SFP+
all the way into the SFP+ cage until there is an audible
"click".
g
NOTE
The latch on the SFP+ is for removal only. When removing the
SFP+, rotate the latch away from the SFP+. It should easily slide
out of the cage.
w
NOTICE
Do not remove the protective end cap until the optical fiber
connection is made. Ensure that you keep the protective end cap
on whenever the transceiver optical fiber connector is not
inserted.
2. Continue the installation and turn-up of the host module
using the instructions in the Job Aid or Quick Start provided
with the module or other system-level documentation
available online at www.adtran.com.
November 2019
61442544F2C-13A
P/N: 1442544F2C
