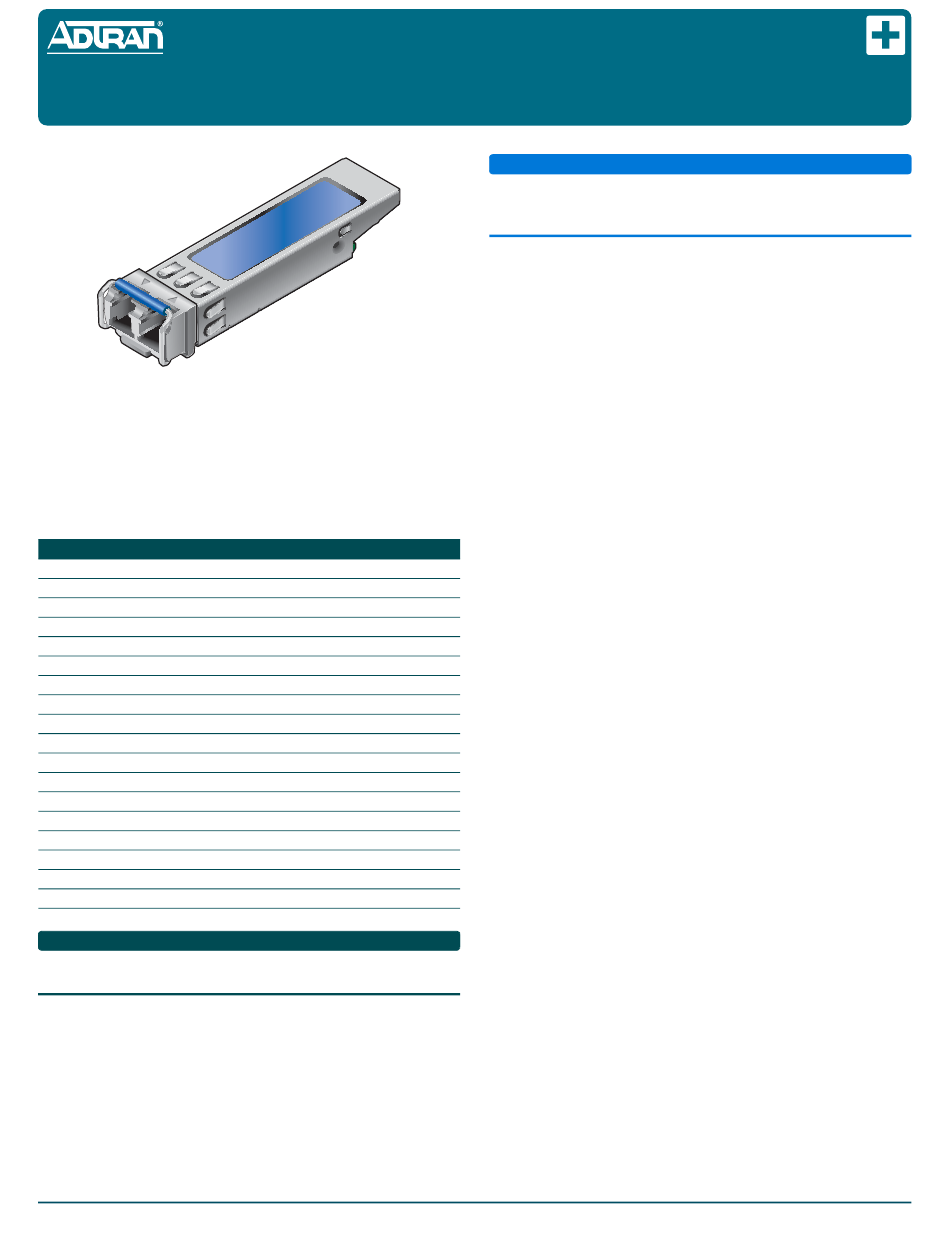

ADTRAN SFP OC3-48 1G CWDM 80KM Manual

Product P/N: 1442706PX1
D
ESCRIPTION
The OC-48 CWDM SFP (SFP48-18C) plugs into ADTRAN OC-48
equipment designed to accept Small Form-factor Pluggables
(SFPs). Installed into an appropriate host unit, the SFP48-18C
provides an OC-48 Coarse Wavelength Division Multiplexing
(CWDM) interface to the supporting system.
The document supports the following SFPs in this series:
Part Number Description
1442706PG1 SFP OC3-48 1G CWDM 1471 80 km
1442706PG2 SFP OC3-48 1G CWDM 1491 80 km
1442706PG3 SFP OC3-48 1G CWDM 1511 80 km
1442706PG4 SFP OC3-48 1G CWDM 1531 80 km
1442706PG5 SFP OC3-48 1G CWDM 1551 80 km
1442706PG6 SFP OC3-48 1G CWDM 1571 80 km
1442706PG7 SFP OC3-48 1G CWDM 1591 80 km
1442706PG8 SFP OC3-48 1G CWDM 1611 80 km
1442706PF9 SFP OC3-48 1G CWDM 1451 80 km
1442706PF10 SFP OC3-48 1G CWDM 1431 80 km
1442706PF11 SFP OC3-48 1G CWDM 1411 80 km
1442706PF12 SFP OC3-48 1G CWDM 1391 80 km
1442706PF13 SFP OC3-48 1G CWDM 1371 80 km
1442706PF14 SFP OC3-48 1G CWDM 1351 80 km
1442706PF15 SFP OC3-48 1G CWDM 1331 80 km
1442706PF16 SFP OC3-48 1G CWDM 1311 80 km
1442706PF17 SFP OC3-48 1G CWDM 1291 80 km
1442706PF18 SFP OC3-48 1G CWDM 1271 80 km
NOTE
To ensure compatibility, refer to the documentation provided
with the host module or splitter/combiner unit.
The following features are supported on the SFP48-18C:
■
SONET OC‐48 compatible (2.488 Gbps), long reach, single‐
mode, 2‐fiber operation
■
80 km maximum optical span

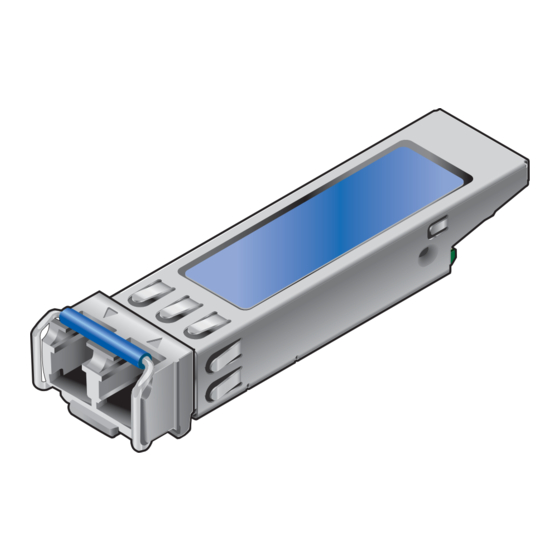

Small Form-Factor Pluggable
SFP OC3-48 1G CWDM 80KM
CLEI
SOOTALGJ
SOOTALHJ
SOOTALJJ
SOOTALKJ
SOOTALLJ
SOOTALMJ
SOOTALNJ
SOOTALPJ
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
NOTICE
Due to compliance certification requirements, use only SFPs
supplied by ADTRAN with the host module. ADTRAN cannot
certify system integrity with other SFPs.
Operational Specifications
Optical Specifications:
■ Transmitter
♦ Laser Diode Type: DFB
♦ TX Central Wavelength: 1271 nm to 1611 nm
♦ TX Output optical power:
● 1271 nm to 1331 nm: +2 dB to +5 dB
● 1351 nm to 1451 nm: +1 dB to +5 dB
● 1471 nm to 1611 nm: 0 dB to +5 dB
♦ TX Spectral width: 1nm Max
♦ SMSR: 30dB Minimum
♦ Output Eye: SONET OC-48 / SDH STM-16 compatible
♦ Extinction Ratio: 8.2 dB
♦ Optical Rise time (tr): 160 ps
♦ Optical Fall time (tf): 160 ps
♦ Dispersion Penalty:
● 1271 nm to 1331 nm: +1 dB
● 1351 nm to 1451 nm: +1.5 dB
● 1471 nm to 1611 nm: +2 dB
■ Receiver
♦ Rx Type: APD
♦ Rx Central wavelength: 1271 nm to 1611 nm
♦ Receiver Overload: –9 dBm
♦ Receiver Sensitivity: –28 dBm
● 1271 nm to 1451 nm: –31 dBm
● 1471 nm to 1611 nm: –28 dBm
■ Extended Environmental
♦ Operational temperature range: –40°C to +65°C
♦ Case temperature hardened range: –40°C to +85°C
♦ Storage temperature range: –40°C to +85°C
♦ Relative humidity to 5 to 85%
I
NSTALLATION
Before installing the equipment, inspect the SFP48-18C. If damage
has occurred during shipping, file a claim with the carrier, and
then contact ADTRAN Customer Support. For more information,
refer to the warranty.
jobAid
Issue Date: May 2016
Document P/N: 61442706PX1-22A
1
