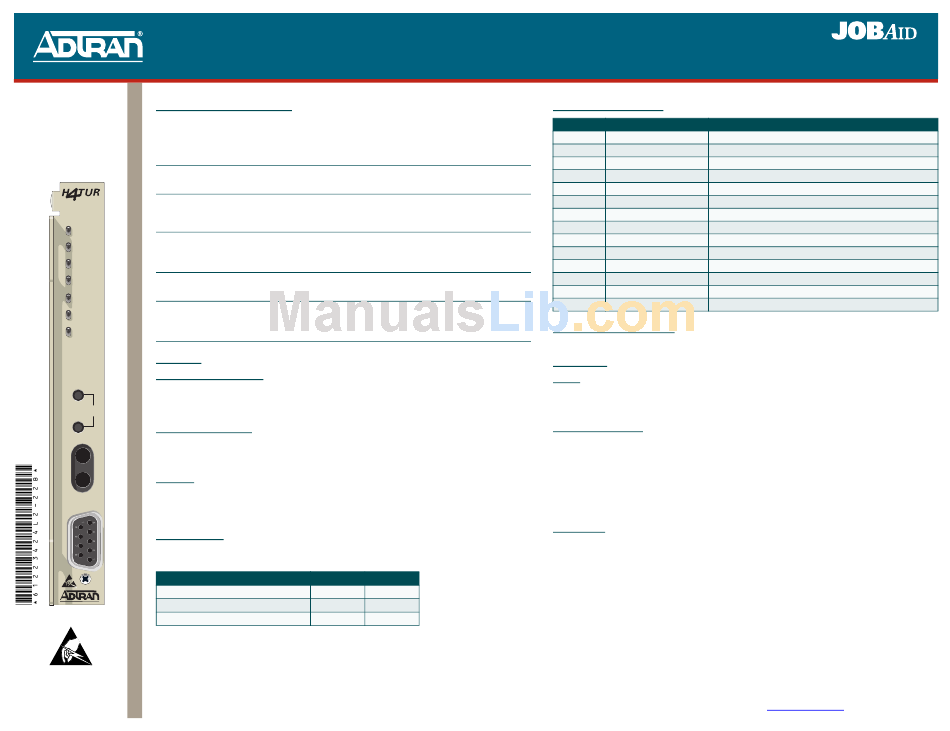

ADTRAN T200 HDSL4 Specifications

FRONT PANEL LED STATUS
HDSL4
T200 H4TU-R
DSL1/DSL2
P/N 1223424L2
CLEI: T1L83Z3C_ _
DS1
ALM
1223424L2
LOCAL
DSL 1
ESF/SF
DSL 2
DS1
B8ZS/AMI
ALM
ESF/SF
(YEL)
(GRN)
LLB/RLB
B8ZS/AMI
(YEL) (GRN)
LLB/RLB
(YEL) (GRN)
OPTIONS
Front Panel Pushbuttons
LOC Initiates a bidirectional loopback of the T200 H4TU-R toward the network and customer
LOC
Initiates a loopback at the H4TU-C toward the customer
REM
LBK
REM
DS1 MONITOR JACKS
TX DS1 signal from the DCP toward network (nonintrusive)
RX DS1 receive from the local loop (nonintrusive)
TX
M
O
POWER
N
RX
This specific unit is intended for Local Power Only. If a Span Powered unit is required, refer to
P/N 1223426L2.
A local power supply is available from ADTRAN by ordering P/N 1353.DSK48V04.
R
COMPLIANCE
S
2
This product is intended to be installed in Restricted Access Areas only and in equipment with
3
2
a Type "B" or "E" enclosure.
Code
Power Code
Telecommunication Code (TC)
Installation Code (IC)
This product meets all requirements of Bellcore GR-1089-CORE (Class A2), ANSI T1.418-
2002. This product is NRTL listed to the applicable UL standards.
WARNING:
C A U T I O N !
SUBJECT TO ELECTROSTATIC DAMAGE
OR DECREASE IN RELIABILITY.
HANDLING PRECAUTIONS REQUIRED.
T200 HDSL4 Transceiver Unit, Remote-Local Powered
! Green Loop 1/Loop 2 synchronization achieved and signal is present
No errors currently detected, and SNR margin ≥ 3 dB
Red Loop 1/Loop 2 synchronization not achieved, in sync with
!
errors, or SNR margin < 3 dB
! Green DS1 signal present and no errors currently detected
Red No DS1 signal, or signal present with errors
!
Off No active alarm present
"
! Yellow Loss of DSX-1 signal from the network
Red Loss of DS1 signal from the customer (CPE)
!
Off Unit is provisioned for UNFRAMED data
"
! Green Unit is provisioned for SF data
! Yellow Unit is provisioned for ESF data
! Green Unit is provisioned for AMI line code
Yellow Unit is provisioned for B8ZS line code
!
" Off No local loopbacks active
Yellow Local loopback active
!
! Green Active loopback at the H4TU-C toward the customer
Input Output
C C
X X
A –
Up to –200 VDC may be present on telecommunications wiring. Ensure
Chassis ground is properly connected.
For more information, refer to the Installation and Maintenance Practice (P/N 61223HDSL4L2-5) available online at www.adtran.com.
CARD EDGE PINOUTS
Pin Designation Description
1 CH GND Chassis ground
5 DS1-T1 DS1 receive out tip (to customer interface)
7 H1-T HDSL4 Loop tip (facility)
11 CH GND Chassis ground
13 H1-R HDSL4 Loop ring (facility)
15 DS1-R1 DS1 receive out ring (to customer interface)
17 48 VR 48 VDC Return
20 VCC +5 VDC for protection switching
27 CH GND Chassis ground
35 48 V 48 VDC; range ±24 to ± 56 VDC (48 VDC nominal)
41 H2-T HDSL4 Tip (Loop 2)
47 H2-R HDSL4 Ring (Loop 2)
49 DS1-R DS1 transmit in ring (from customer interface)
55 DS1-T DS1 transmit in tip (from customer interface
PROVISIONING OPTIONS
Provisioning options are assumed from settings made at the H4TU-C.
FEATURES
TScan
The ADTRAN T200 H4TU-R incorporates the TScan
®
retrieval of circuit diagnostics and performs advanced fault location. For more information about
TScan refer to the Installation and Maintenance practice.
Bad Splice Detection
The Runtime TScan bad splice detection feature is an ADTRAN proprietary non-intrusive method
for detection of anomalies (bad splices) in the copper plant. This feature non-intrusively monitors
the cable pair during runtime for the presence of bad splices, which may potentially impact service.
Poor splices in the cable are often undetected by normal testing methods. Often, these splices
present no problem for the data transmission equipment until the point at which oxidation with the
splice itself causes a rapid impedance change. Such a change in impedance may cause errors,
signal margin fluctuation, and/or a retrain of the DSL transceivers. The splice detection feature is
accessed from the Troubleshooting Screen via the craft access port.
Fast Retrain
Fast Retrain is an ADTRAN proprietary feature that minimizes downtime due to an intermittent
impairment which due to its duration cannot be bridged. When such impairments occur, the fast
retrain feature will be invoked to restore service within 5 to 7 seconds, instead of the traditional 25
to 30 second retrain duration.
NOTE: Fast-Retrain capable units must be installed on both ends of the circuit for this feature
to function properly. Also, if there is a failure, for any reason, of a fast retrain attempt
then the traditional (25-30 second) retrain will be initiated.
61223424L2-22B
0505
™ feature. TScan allows for remote
