PRIVACY
22

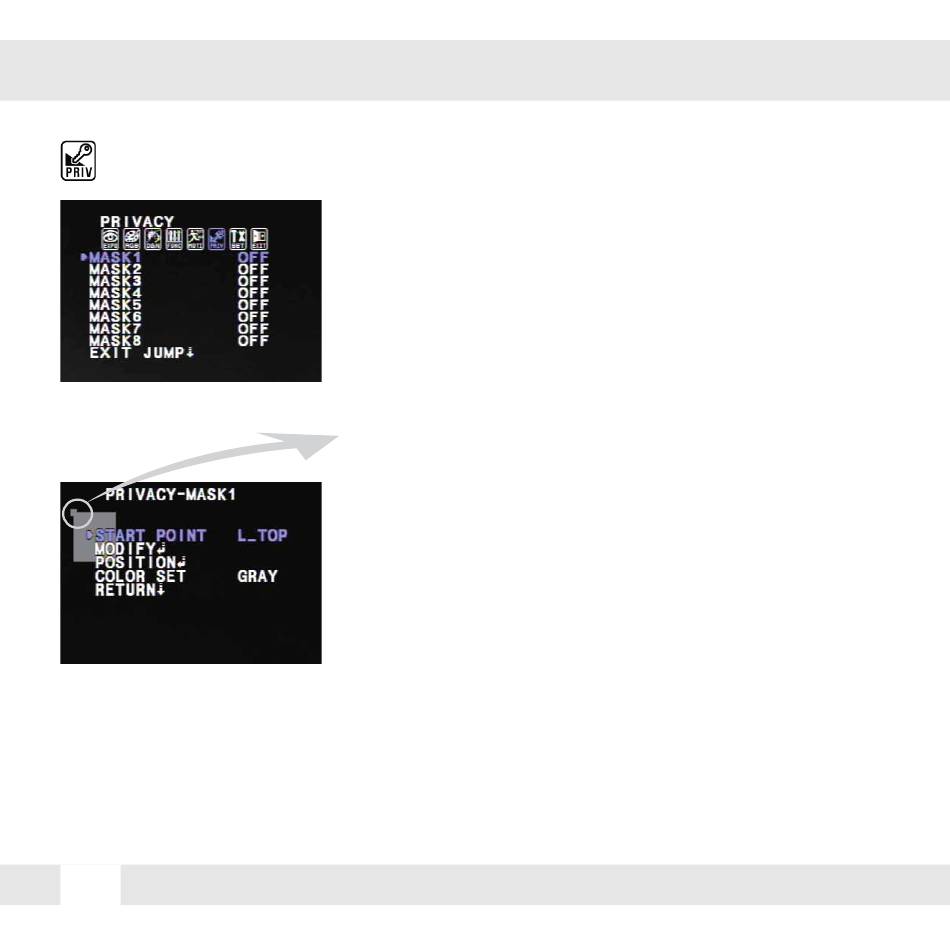

You can hide some parts of the screen for privacy masking. A total of 8 different
privacy masking zones are available.
MASK 1 ~ MASK 8
Select ON or OFF for each mask (MASK 1 through 8).
OFF / ON
If ON is selected you can set the area to be masked and the shape
and color of the mask.
*START POINT: Select the START POINT to adjust the size of the
privacy zone.
*
L_TOP (Left Top)
*
R_TOP (Right Top)
*
L_BOT (Left Bottom)
*
R_BOT (Right Bottom)
*
*MODIFY: After selecting the START POINT, you can modify the size of the
privacy zone by moving the joystick left or right.
*
*POSITION: You can move the privacy zone by moving the joystick left or right.
*COLOR SET: Privacy zones can be set with eight different colors - GRAY,
BLACK, WHITE, RED, GREEN, BLUE, MAGENTA, and CYAN.
*
