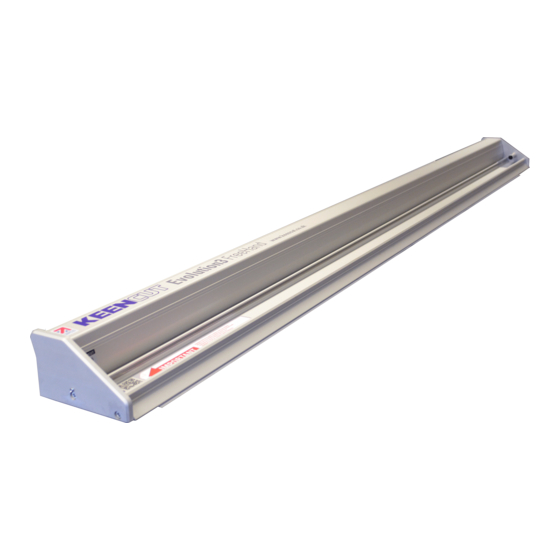

KEENCUT Evolution3 FreeHand User Manual
  1. Manuals
  2. Brands
  3. KEENCUT Manuals
  4. Cutter
  5. Evolution3 FreeHand
  6. User manual

KEENCUT Evolution3 FreeHand User Manual

Hide thumbs Also See for Evolution3 FreeHand:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Evolution3 FreeHand User Guide –

Care and maintenance

www.keencut.com
+44 (0) 1536 263158
+1 (716) 748 6203
The world's finest cutting machines
sales@keencut.co.uk (UK HQ)
sales@keencut.com (US sales)
click here to view this document online >
Page 1 of 8
Scan the QR code or

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Evolution3 FreeHand and is the answer not in the manual?

Questions and answers

Related Manuals for KEENCUT Evolution3 FreeHand

Summary of Contents for KEENCUT Evolution3 FreeHand

  • Page 1 Evolution3 FreeHand User Guide – Care and maintenance The world’s finest cutting machines www.keencut.com +44 (0) 1536 263158 sales@keencut.co.uk (UK HQ) Scan the QR code or +1 (716) 748 6203 sales@keencut.com (US sales) click here to view this document online >...
  • Page 2 Evolution3 FreeHand User Guide – Care and maintenance Contents 1. Care and maintenance ............................1.1 Clean your machine ............................. 1.2 Maintain the bearing track ............................ 1.3 Change the sightline strip ............................. The world’s finest cutting machines www.keencut.com +44 (0) 1536 263158 sales@keencut.co.uk (UK HQ)
  • Page 3 Evolution3 FreeHand User Guide – Care and maintenance 1. Care and maintenance 1.1 Clean your machine See how to clean your machine in this video > Use a vacuum cleaner to remove any dust and smaller debris. Frequency: daily as required Moisten a cloth with diluted detergent to wipe down the cutter bar and base plate, dry with a cloth.
  • Page 4 Evolution3 FreeHand User Guide – Care and maintenance 1.2 Maintain the bearing track See how to maintain the bearing track in this video > Put a small amount of petroleum jelly (Vaseline) on the scouring surface of a dish washing sponge and rub it up and down the two tracks.
  • Page 5 Evolution3 FreeHand User Guide – Care and maintenance 1.3 Change the sightline strip IMPORTANT: Ensure that you have a replacement sightline strip before proceeding When using your FreeHand, the sightline strip may become scored or damaged. Remove any tool heads.
  • Page 6 Evolution3 FreeHand User Guide – Care and maintenance Remove the damaged sightline strip making sure that all residue from the adhesive tape is removed. NOTE: If you are struggling to remove any adhesive residue, lightly use methylated spirit on a paper towel or cloth.
  • Page 7 Evolution3 FreeHand User Guide – Care and maintenance Apply the sightline strip in stages from one end of the cutter bar to the other using the yellow silicone grip as your guide; the back edge of the sightline strip should be touching the front edge of the silicone grip.
  • Page 8 Evolution3 FreeHand User Guide – Care and maintenance The sightline strip is wider than it needs to be and requires trimming to suit cutting line of the machine. Use the Double Graphik tool head to gently cut through the sightline strip in 3 to 4 passes. This will ensure the sightline strip is not distorted and indicates the blades line of cut accurately.
