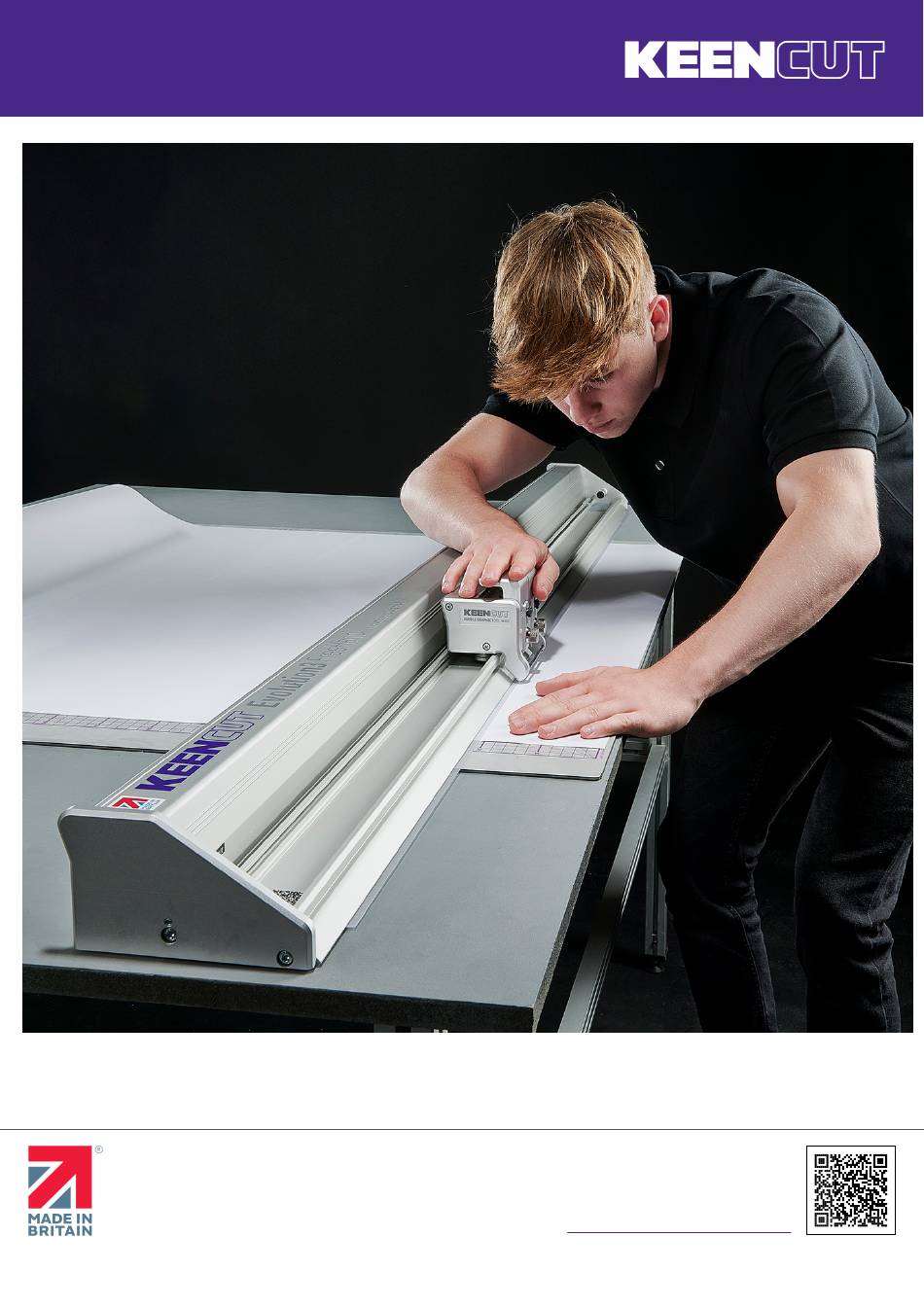

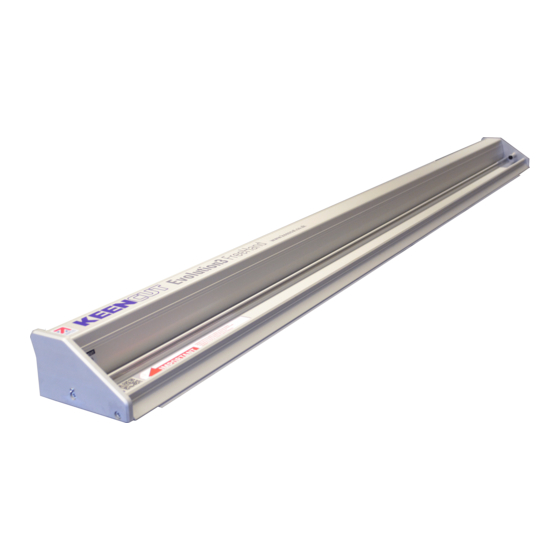

- Page 1 Evolution3 FreeHand Installation Manual The world’s finest cutting machines www.keencut.com +44 (0) 1536 263158 sales@keencut.co.uk (UK HQ) Scan the QR code or +1 (716) 748 6203 sales@keencut.com (US sales) click here to view this document online > Page 1 of 17...
-
Page 2: Table Of Contents
Evolution3 FreeHand Installation Manual Contents 1. Before you start ..............................1.1 Assembly time ..............................1.2 Be careful when lifting ............................1.3 Components ..............................1.4 Tools Included ..............................1.5 Tools not included .............................. 1.6 Extra tools needed to measure bench flatness ...................... -
Page 3: Before You Start
Evolution3 FreeHand Installation Manual 1. Before you start 1.1 Assembly time You will need approximately 1 hour to install and calibrate your cutter The world’s finest cutting machines www.keencut.com +44 (0) 1536 263158 sales@keencut.co.uk (UK HQ) Scan the QR code or +1 (716) 748 6203 sales@keencut.com (US sales) -
Page 4: Be Careful When Lifting
Evolution3 FreeHand Installation Manual 1.2 Be careful when lifting To prevent injury and damage, lift the box and the machine with 2 people The world’s finest cutting machines www.keencut.com +44 (0) 1536 263158 sales@keencut.co.uk (UK HQ) Scan the QR code or +1 (716) 748 6203 sales@keencut.com (US sales) -
Page 5: Components
Evolution3 FreeHand Installation Manual 1.3 Components The Evolution3 FreeHand comes in 5 different sizes ranging from 1.1m (44″) to 3.1m (124″)(cutting length) in 0.5m (20″) increments. Each machine is fitted with a Double Graphik blade cutting head. The world’s finest cutting machines www.keencut.com... -
Page 6: Tools Included
Evolution3 FreeHand Installation Manual 1.4 Tools Included The world’s finest cutting machines www.keencut.com +44 (0) 1536 263158 sales@keencut.co.uk (UK HQ) Scan the QR code or +1 (716) 748 6203 sales@keencut.com (US sales) click here to view this document online >... -
Page 7: Tools Not Included
Evolution3 FreeHand Installation Manual 1.5 Tools not included The world’s finest cutting machines www.keencut.com +44 (0) 1536 263158 sales@keencut.co.uk (UK HQ) Scan the QR code or +1 (716) 748 6203 sales@keencut.com (US sales) click here to view this document online >... -
Page 8: Extra Tools Needed To Measure Bench Flatness
Evolution3 FreeHand Installation Manual 1.6 Extra tools needed to measure bench flatness 2 blocks (or similar) of equal size 2 equal weights Thread The world’s finest cutting machines www.keencut.com +44 (0) 1536 263158 sales@keencut.co.uk (UK HQ) Scan the QR code or +1 (716) 748 6203 sales@keencut.com (US sales) -
Page 9: Symbols And Icons
Evolution3 FreeHand Installation Manual 1.7 Symbols and icons Muscle = do this firmly Feather = do this gently Be careful when lifting The world’s finest cutting machines www.keencut.com +44 (0) 1536 263158 sales@keencut.co.uk (UK HQ) Scan the QR code or +1 (716) 748 6203 sales@keencut.com (US sales) -
Page 10: Installation
Evolution3 FreeHand Installation Manual 2. Installation 2.1 Workspace required The width of the work surface needs to be 40cm (16″) wider than the cut length of the FreeHand. Metric example: E3FH260 260cm + 40cm = 300cm Imperial example: E3FH104 104” + 16” = 118”... -
Page 11: Work Bench Flatness Test And Requirements
If your workbench does not meet the following parameters and cannot be adjusted for flatness it is recommended to use a different bench. Keencut’s BenchTop Bench is designed especially for this purpose. Check the flatness of the worktop by stretching a thin piece of strong thread between two blocks of the same height approximately over the area the cutter is to be used. -
Page 12: Creating A Cutting Station
Evolution3 FreeHand Installation Manual 2.3 Creating a cutting station This section suggests a method of creating a cutting station, although beneficial for productivity and accuracy it is not essential. Create two ‘L’ shape blocks from 25mm (1″) wood, MDF or plastic approximately to the following dimensions. - Page 13 Evolution3 FreeHand Installation Manual Position the two blocks as shown with a 1-2mm (1/16”) spacer between one end of the FreeHand and the inside edge of the adjacent block. Fix the blocks to the work surface. Ensure the FreeHand can be lifted and moved with ease and is not rubbing against the blocks.
-
Page 14: Calibration
Evolution3 FreeHand Installation Manual 3. Calibration 3.1 Remove cutter bar sag See how to remove cutter bar sag in this video > Place the FreeHand on a flat surface and insert 3 pieces of 3mm (⅛”) thick board (PVC Foamboard, ACP or similar) under each end and the middle of the cutter bar. - Page 15 Evolution3 FreeHand Installation Manual Use the 2.5mm Allen (hex) key in the Allen (hex) screw on the left hand end of the cutter to adjust the cutter bar sag. Turn clockwise to raise the clamp in the centre. The world’s finest cutting machines www.keencut.com...
-
Page 16: Using Your Machine
Evolution3 FreeHand Installation Manual 4. Using your machine 4.1 Register your machine Registering your SmartFold machine will activate your 5 year guarantee. Register your cutter to activate your guarantee > The world’s finest cutting machines www.keencut.com +44 (0) 1536 263158 sales@keencut.co.uk (UK HQ) -
Page 17: User Guide
Evolution3 FreeHand Installation Manual 4.2 User guide See the Evolution3 FreeHand User Guide for advice on cutting techniques, using the different cutting heads and care and maintenance of your machine. Visit the Evolution3 FreeHand User Guide > The world’s finest cutting machines www.keencut.com...
