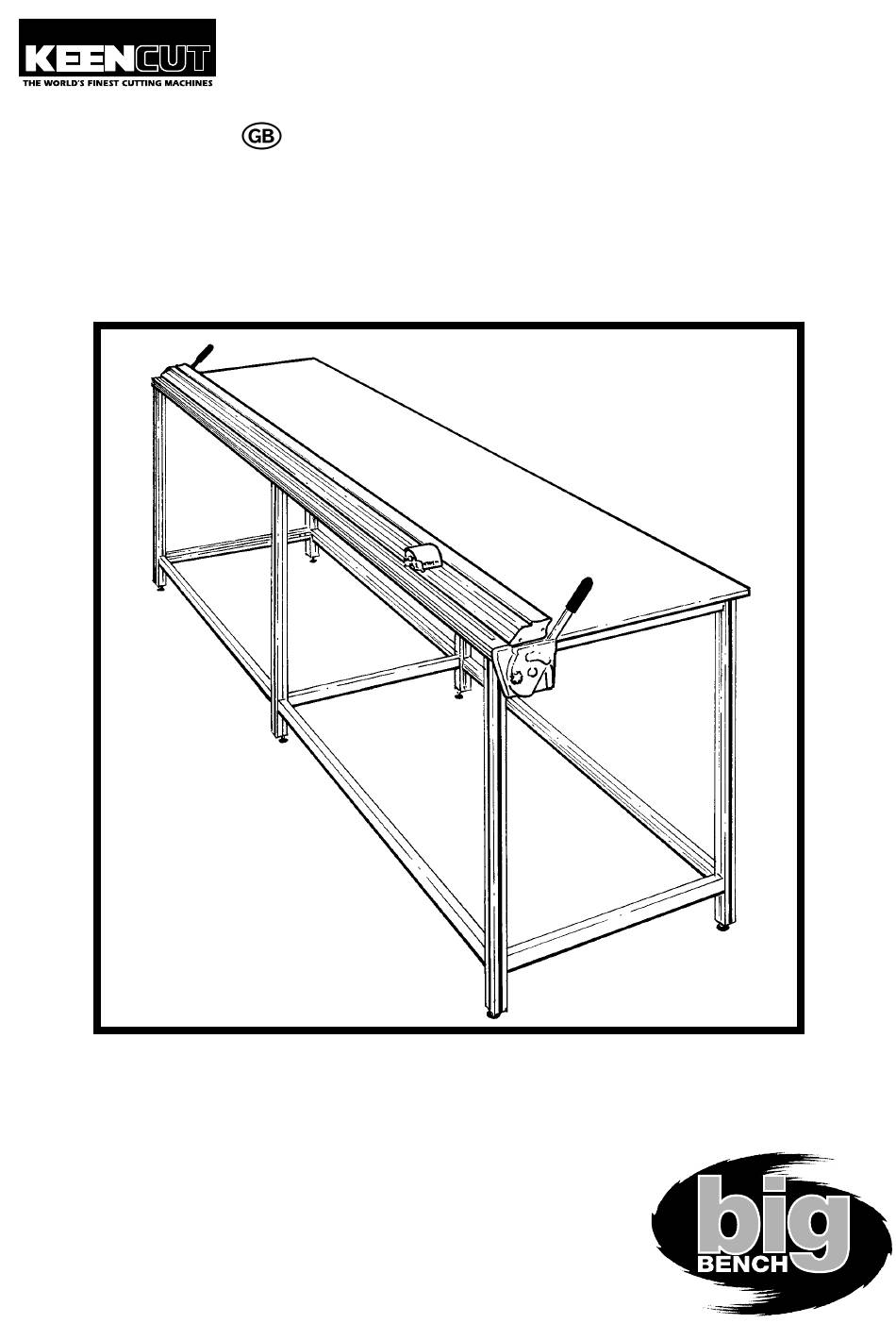

Page 1: Assembly Instructions
B B i i g g Bench ASSEMBLY INSTRUCTIONS Thank you for choosing the Keencut Big Bench. Every effort has been made to bring you a superbly built product with the promise of many years of good service. Keencut – the world’s finest cutting machines... -
Page 2: Packing List
Packing List You should have; Packed in the Rectangular Boxes: QUANTITY FOR BIG BENCH ITEM 1.0,1.5 2.0, 2.5, 3.0 3.5, 4.0, 4.5 5.0 Short beam Long beam Joining Bracket Grub Screw Worktop Fixing Long Screw Height Adjuster 4mm Hexagon Wrench... -
Page 3: Order Of Assembly
The Order of assembly is important – the following diagrams are for quick reference only and are to enable the reader to familiarise themselves with the general assembly of the Big bench, the detailed assembly is described in 4 stages. Stage 1 Fix the brackets to the legs. - Page 4 Assembly NOTE: The following instructions will assume the Big bench has six legs (2.0, 2.5 or 3.0). If you are constructing a (1.0 or 1.5) Big bench please omit the middle frame. Stage 1 Put a grub screw backwards into each of the joining brackets – do not place screws in the other holes.
- Page 5 1.0m or 1.5m big bench) The centre frame (if you are constructing a 2.0m, 2.5m or 3.0m Big bench) over the beams and tighten the grub screws ensuring there are no gaps between the beam ends and the legs.
- Page 6 Assembly Stage 4 Place the base extrusion on the edge of the bench so the lip hangs over the front edge of the legs. Slide the square nuts into the recess as shown and place one near to each leg. Slide the workshop fixing plates into their groove and position them at approximately equal spaces along the base extrusion.
- Page 7 Assembly Stage 4 – cont’d Fix the Worktop in place using a) The large workshop fixing and large screws as shown. the small screws to fix the worktop fixing plates. Position brackets approximately as shown Plan View Position the Javelin cutter onto the two lift &...
- Page 8 Assembly If a thin film or paper is being cut check that the material can be gripped along the full length of the bench. Pass a small piece of the material about 25cm (10") wide under the cutter and ensure it is held in place, carry this out along its full length.
- Page 9 Baird Road, Willowbrook Industrial Estate, Corby, Northamptonshire UK, NN17 5ZA. Tel: +44 (0) 1536 263158 Fax: +44 (0) 1536 204227 E-mail: info@keencut.co.uk KEENCUT INC. (North American Sales) 366-3560 Pine Grove Ave. Port Huron, Michigan, 48060 USA. Toll Free: 1 800 240 KEEN (5336) Tel: 1 (519) 652 0970 Fax: 1 (519) 652 0396 E-mail: northamericansales@keencut.com...
