Page 1: Table Of Contents

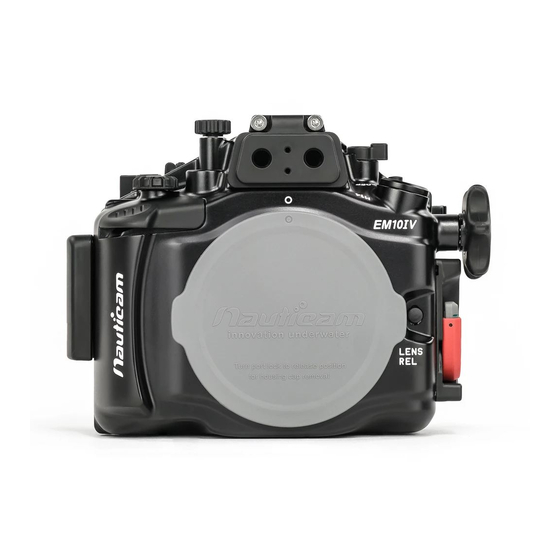

NA - EM10IV For Olympus OM-D E-M10IV Camera PN 17818 User Manual Housing M4/3-MIL Introduction Package Contents Important Instructions Part Names and Functions Opening the Housing Closing the Housing Preparation for Use Recommended Accessory Care/Storage Warranty Specifi cations... -
Page 2: Introduction
PACKAGE CONTENTS Make sure that you have all the included items listed below before using this product. If some items are missing or damaged, contact your local Nauticam dealer. NA-EM10IV Padded Travel Case... -
Page 3: Important Instructions
O-ring renewal between the atmosphere and inside the and port change. housing. Only the accesories specifi ed by Use only Nauticam lubricant on silicone Nauticam must be used. Third-party rubber O-ring. accessories may result in malfunctions or damage to the product. -
Page 4: Part Names And Functions
PART NAMES AND FUNCTIONS Rear View Viewfi nder Moisture alarm window LV button AEL/AFL button Housing unlock button Thumb position Info button Iso button Flash modes button Playback button Shooting modes button Delete button AF target button Menu button OK button... - Page 5 PART NAMES AND FUNCTIONS Top + Front Views M14 Accessory port Shortcut button Main switch/Flash up Shutter release Front dial M10 strobe mount base Tele-converter button Mode dial REC lever Rear dial Optical fi ber cable connection Lens release button...
- Page 6 PART NAMES AND FUNCTIONS Back + Side Views 1/4” Threaded tripod holes Zinc Anodes Zoom/Focus knob Port lock safety button Port lock lever Housing unlock button...
-
Page 7: Opening The Housing
OPENING THE HOUSING * drawings as illustrations only depress housing unlock button turn housing lock latch anti-clockwise to open the housing fl ip open the back housing when lock latch is aligned to ‘open’ position... -
Page 8: Closing The Housing
CLOSING THE HOUSING * drawings as illustrations only before closing the housing, clean and lubricate the main O-ring make sure nothing is caught between front and back housing and that they are fully aligned before locking main O-ring insert the housing shaft into the shaft hole and then rotate the lock latch clockwise until you hear and feel it click into place... -
Page 9: Preparation For Use
PREPARATION FOR USE * drawings as illustrations only Installing the Camera unlock camera tray lever and remove the tray from the housing attach the camera tray by tightening the tray screw into the tripod socket of the camera * lift up the ON/OFF lever each time before installing the camera slide the camera tray back into the housing along the tray rail... - Page 10 PREPARATION FOR USE * drawings as illustrations only Port Mounting depress port lock safety button and rotate anti-clockwise lubricant the port O-ring before mounting align index mark push port assembly straight in rotate locking lever clockwise to lock...
- Page 11 PREPARATION FOR USE * drawings as illustrations only Coating housing O-ring Main O-ring remove the main O-ring using an O-ring remover clean the O-ring groove with a cloth and ensure that it is free from salt or other foreign materials lightly coat it with provided lubricant return the main O-ring by slowly pressing from one corner to the whole perimeter...
- Page 12 PREPARATION FOR USE * drawings as illustrations only Setting up moisture alarm Alarm CR2032 ON/OFF Battery remove battery press the battery down until it insulation fi lm click into place switch on the alarm test the alarm - the moisture alarm - connect the wires with a window will fl...
-
Page 13: Recommended Accessory
RECOMMENDED ACCESSORY * drawings as illustrations only Vacuum valve system remove the plug of M16 accessory port from the housing remove the cap from the vacuum valve slightly lubricate the o-ring and hand pump tighten the vacuum valve to the housing with the tool provided vacuum valve accesory port... -
Page 14: Care/Storage
CARE/STORAGE Soak the housing system in fresh water Operate all controls and buttons at after salt water usage least 3 times while immersed in fresh water We recommand cleaning and inspecting Protect the housing with robust and the main O-ring each time after diving for shock-proof travel case during trans- any damage and every time the housing portation. -
Page 15: Warranty
NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper use and/or poor maintenance; it is the responsibility of the own- er to carefully follow the instructions in our manuals. -
Page 16: Specifi Cations
SPECIFICATIONS Wet Lens Compatibility Construction 81301 Compact Macro Convertor 1 Macro Housing body Hard Anodized Aluminium Alloy (CMC-1, 4.5x magnifi cation) Display window Abrasion Resistant Polycarbonate 81302 Compact Macro Convertor 2 (CMC-1, 2.8x magnifi cation) 81201 Super macro convertor 1 Dimensions (SMC-1, 2.3x magnifi... - Page 17 Nauticam Internationl Ltd. Rm 2203, CCT Telecom Bldg, 11 Wo Shing St, Fo Tan, Hong Kong Tel. +852 - 26902711 Fax. +852 - 26909778 URL. www.nauticam.com Gallery. www.nauticam.smugmug.com...
