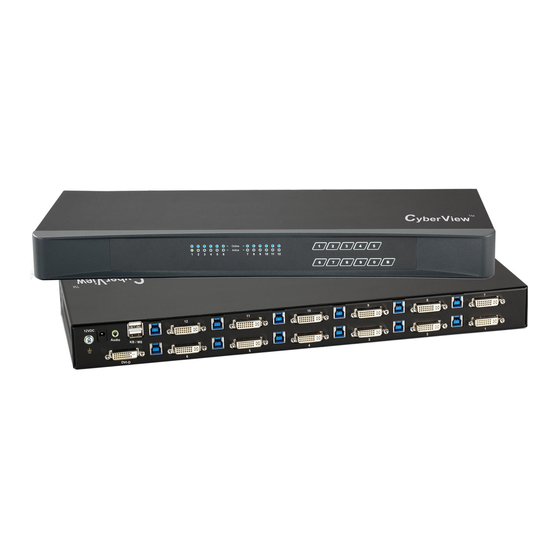

- Page 1 dedicated KVM switch and rackmount screen technology User Manual - KVM Rear Kit Version for LCD Console Drawer DVI-D KVM - 1201D back Designed and manufactured by Austin Hughes UM-CV-751-DVIKVM-KIT-Q420V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > DVI-D KVM Kit -1201D KVM port connection Specifications < Part. 2 > DVI-D KVM Usage KVM Button KVM Hotkey UM-CV-751-DVIKVM-KIT-Q420V1 www.austin-hughes.com... -
Page 4: Part 1 > Dvi-D Kvm Kit
< Part 1 > DVI-D KVM Kit DVI-D KVM Kit < 1.1 > KVM port connection USB Servers DVI-D KVM port Audio Power USB Servers DVI KVM Cable CI - 6 : 6 feet DVI KVM cable CI - 15 : 15 feet DVI KVM cable ( Server end : DVI-D + USB + Audio ) ( KVM port : DVI-D + USB3.0 ) -
Page 5: 1201D
< 1.2 > Specifications DVI-D KVM Kit -1201D KVM Port ▀ Number of ports : Connector : DVI-D connector USB 3.0 connector ( combined for keyboard, mouse & audio ) Connectivity : Combo 4-in-1, KVM cable, 6 or 15 feet Audio Out : 1 x 3.5mm stereo audio... -
Page 6: Part. 2 > Dvi-D Kvm Usage
< Part 2 > Usage DVI-D KVM Usage < 2.1 > KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch finally computer Front Panel - Port LED Indications DVI-D KVM 12 ports PC port LEDs... -
Page 7: Kvm Hotkey
< 2.2 > KVM Hotkey DVI-D KVM Usage Hotkey Function Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port Scroll Lock + Scroll Lock + Port no. Switch to specific port Scroll Lock + Scroll Lock + Auto scan for powered on PC Scroll Lock + Scroll Lock +... - Page 8 The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2020 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-DVIKVM-KIT-Q420V1 www.austin-hughes.com...
