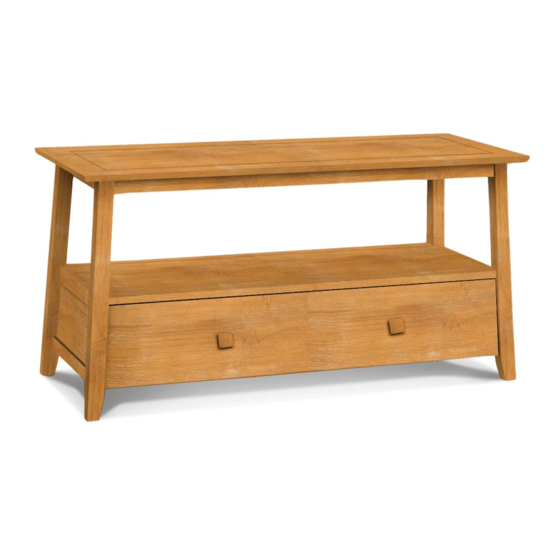

- Page 1 ASSEMBLY INSTRUCTIONS Description : BOMBAY MEDIA CENTER Item No. : TV-59 ITEM NO.: TV-59 Printed in Vietnam REVISED MAR 07, 2016 - 1 -...
- Page 2 BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning assembly, however, make sure all parts and hardware are included and free of obvious defect.
- Page 3 PART LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts: Description Sketch Description Sketch Side frame (L-R) Cross Bar Shelf Drawer Drawer side front (L-R) Drawer Drawer bottom back...
- Page 4 HARDWARE LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware: Description Sketch Description Sketch Bolt Flat washer (ɸ6.5x19mm) (M6x35mm) Lock washer Allen key (6.5x11mm) (M4x80mm) Cam-bolt...
- Page 5 STEP 1 Attach top (A) and shelf (D) to side frames (B) with bolts (1) and washers (2) and (3) as shown below. Tighten with Allen key (4). Attach cross bar (C) to side frames (B) with cam-bolts (5) and cam-locks (6) as shown below. Tighten with a screwdriver.
- Page 6 STEP 3 Attach drawer bottom (H), drawer back (G) and drawer sides (F) to the drawer front (E) with screws (8). Tighten with a screwdriver. Then attach drawer supporters (J) underneath drawer with screws (8) as shown below. Tighten with a screwdriver.
- Page 7 STEP 5 Carefully put the drawer (from step 4) into the unit. ITEM NO.: TV-59 Printed in Vietnam REVISED MAR 07, 2016 - 7 -...
