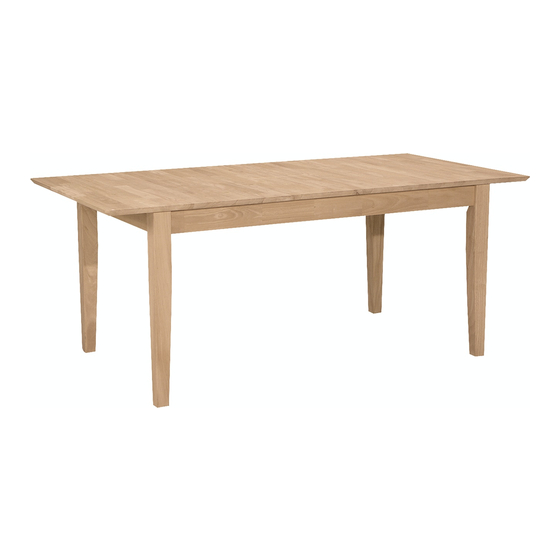

- Page 1 ASSEMBLY INSTRUCTIONS Description : 36X60X72 BUTTERFLY WITH SHAKER LEG Item No. : T-3660XBS ITEM NO.: T-3660XBS Printed in Vietnam REVISED FEB 23, 2017 - 1 -...
- Page 2 Long exposure to rubber or soft plastic may cause a chemical reaction and damage the finish of your table. Protect the surface of the table with cloth if you are using any product with rubber feet or base. ITEM NO.: T-3660XBS Printed in Vietnam REVISED FEB 23, 2017...
- Page 3 (M8 x 13mm) (M13mm) Small Lock washer Short bolt (ɸ6.5 x 11mm) (M6 x 35mm) Small Flat washer Allen Key (ɸ6.5 x 19mm) (M4 x 30mm x 110mm) ITEM NO.: T-3660XBS Printed in Vietnam REVISED FEB 23, 2017 - 3 -...
- Page 4 Attach legs (B) to the top (A) with washers (1) and (2), and nuts (3). Tighten with the wrench (4). Note: THE PLYWOOD GAUGE (C) HAS TO BE REMOVED AFTER EACH LEG IS SECURELY TIGHTENED. USE THE GAUGE TO ATTACH EACH AND EVERY LEG. ITEM NO.: T-3660XBS Printed in Vietnam REVISED FEB 23, 2017...
- Page 5 STEP 3 Unlock the table top from both sides underneath the top as shown below. Pull the two parts of the table top apart. ITEM NO.: T-3660XBS Printed in Vietnam REVISED FEB 23, 2017 - 5 -...
- Page 6 We use the flexible metal bar for this purpose, as a hardened metal would snap during transport or damage the under structure. ITEM NO.: T-3660XBS Printed in Vietnam REVISED FEB 23, 2017...
- Page 7 STEP 5 Push the table top closed. Lock the mechanism underneath two sides of the table top as shown below. ITEM NO.: T-3660XBS Printed in Vietnam REVISED FEB 23, 2017 - 7 -...
