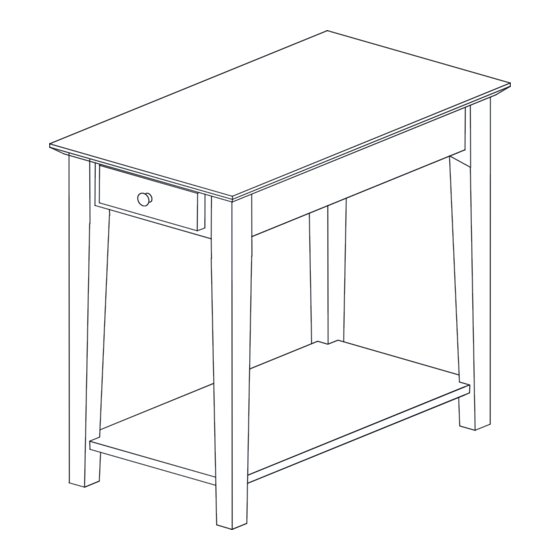

- Page 1 ASSEMBLY INSTRUCTIONS Description : 14 X 22 X 25 H END TABLE Item No. : OT-2214 ITEM NO.: OT-2214 Printed in Vietnam REVISED NOV 02, 2015 - 1 -...
- Page 2 Protect the surface of the table with cloth if you are using any product with rubber feet or base. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO.: OT-2214 Printed in Vietnam REVISED NOV 02, 2015 - 2 -...
- Page 3 Description Sketch Description Sketch Bolt Flat washer (M6x45mm) (6.5x19mm) Lock washer Allen Key (6.5x11mm) (M4x80mm) Screw L-Bracket (M3.5x15mm) Pan head screw Knob (M4x25mm) ITEM NO.: OT-2214 Printed in Vietnam REVISED NOV 02, 2015 - 3 -...
- Page 4 Attach shelf (C) to legs (B) with screws (5) and brackets (6) as shown below. Tighten with a screwdriver. STEP 2 Attach knob (7) to front of drawer with pan head screw (8). Tighten with the screwdriver ITEM NO.: OT-2214 Printed in Vietnam REVISED NOV 02, 2015 - 4 -...
