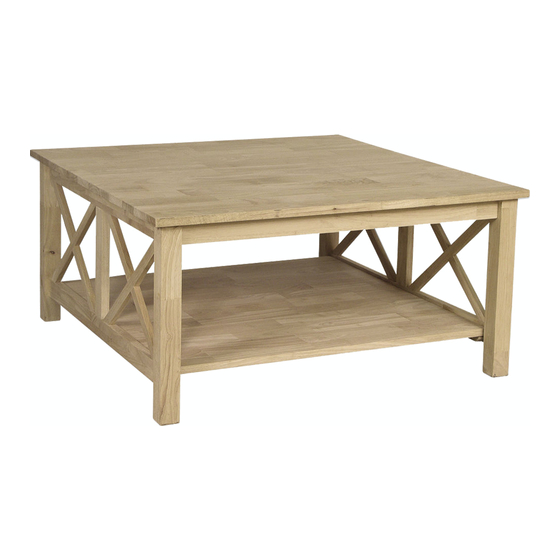

- Page 1 ASSEMBLY INSTRUCTIONS Description : HAMPTON SQUARE COFFEE TABLE Item No. : OT-70SC ITEM NO.: OT-70SC Printed in Vietnam REVISED APR 06, 2013 - 1 -...
- Page 2 BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning assembly, however, make sure all parts and hardware are included and free of obvious defect. If a part is missing or defective, please contact the store where purchased.
- Page 3 HARDWARE LIST When unpacking, please carefully not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware: Description Sketch Description Sketch Flat washer Bolt (6.5x13mm) (M6x35mm) Lock washer Allen Key (6.5x11mm) (4 x 80mm) STEP 1 Attach side frame (C) to the top (A) with bolt (1), washer (2) and (3) as shown below.
- Page 4 STEP 2 Attach Bottom shelf (B) to side frames (C) with bolts (1), washers (2) and (3) as shown below. Tighten with Allen key (4). ITEM NO.: OT-70SC Printed in Vietnam REVISED APR 06, 2013 - 4 -...
