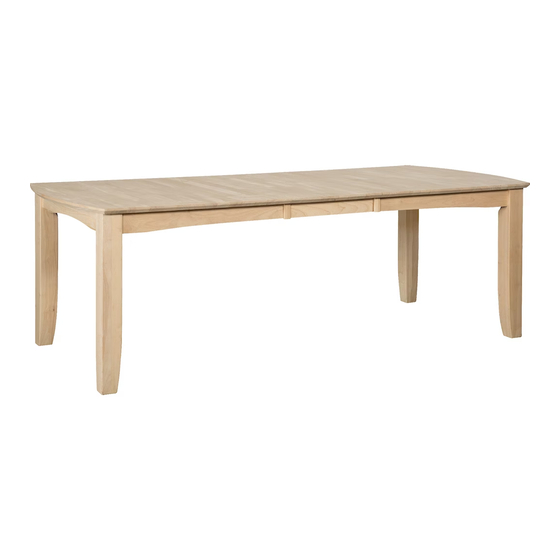

- Page 1 ASSEMBLY INSTRUCTIONS Description : BOW END SHAKER 40X72X90 BUTTERFLY Item No. : T-4072XBC ITEM NO.: T-4072XBC Printed in Vietnam REVISED JAN 29, 2018 - 1 -...
- Page 2 When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts: Description Sketch Description Sketch ITEM NO.: T-4072XBC Printed in Vietnam REVISED JAN 29, 2018 - 2 -...
- Page 3 (M4 x 30mm x 110mm) STEP 1 Attach legs (B) to the top (A) with bolts (1), and washers (2) and (3) as shown below. Tighten with Allen key (4). ITEM NO.: T-4072XBC Printed in Vietnam REVISED JAN 29, 2018 - 3 -...
- Page 4 STEP 2 Unlock the table top from both sides underneath the top as shown below. Pull the two parts of the table top apart. ITEM NO.: T-4072XBC Printed in Vietnam REVISED JAN 29, 2018 - 4 -...
- Page 5 We use the flexible metal bar for this purpose, as a hardened metal would snap during transport or damage the under structure. ITEM NO.: T-4072XBC Printed in Vietnam REVISED JAN 29, 2018...
- Page 6 STEP 4 Push the table top closed. Lock the mechanism underneath two sides of the table top as shown below. ITEM NO.: T-4072XBC Printed in Vietnam REVISED JAN 29, 2018 - 6 -...
