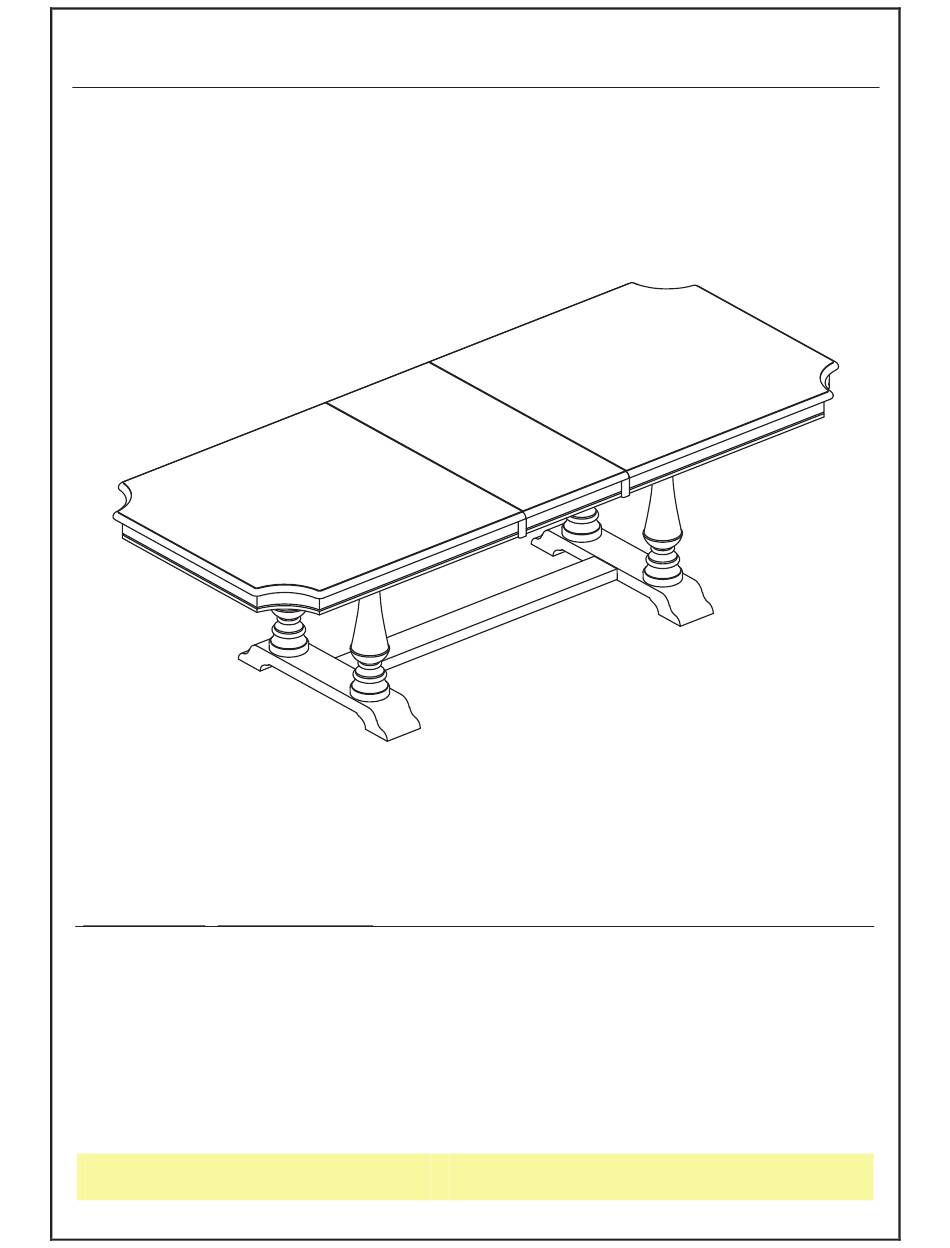

- Page 1 ASSEMBLY INSTRUCTIONS : GROVE PARK 42X84X102 EXT TABLE Description : T-4284XA AND T-4284XB Item No. ITEM NO.: T-4284XA AND T-4284XB Printed in Vietnam ISSUED JUL 24, 2018 THIS ITEM IS PACKED IN 2 CARTONS - 1 -...
- Page 2 BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning assembly, however, make sure all parts and hardware are included and free of obvious defect.
- Page 3 PART LIST T-4284XB When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts: Description Sketch Description Sketch Mounting Pedestal Plate HARDWARE LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware: Description Sketch...
- Page 4 STEP 1 Use the Allen key (6) to loosen the bolts and washers, and then remove support rails from bottom of the table top (A) as shown below. Take out the leaf from the carton box, then re-attach support rails to the table top as shown below. ITEM NO.: T-4284XA AND T-4284XB Printed in Vietnam ISSUED JUL 24, 2018...
- Page 5 STEP 2 Attach mounting plates (C) to pedestals (D) with bolts (1), and washers (3) and (4) as shown below. Tighten with Allen key (6). STEP 3 Attach legs (E) to pedestals (D) with bolts (2), and washers (3) and (4) as shown below. Tighten with Allen key (6).
- Page 6 STEP 4 Insert crossbar (B) into the legs (E), and then attach with bolts (2) and u-washers (5) as shown below. Tighten with Allen key (6). STEP 5 Attach mounting plates (C) to top (A) with bolts (1), and washers (3) and (4) as shown below. Tighten with Allen key (6).
- Page 7 STEP 6 Unlock the table top (A) from both sides underneath the top as shown below. Pull the two parts of the table top apart. Fold two aprons of the center leaf and put it on support rails underneath the table top as shown below.
- Page 8 STEP 8 Unlock the table top from both sides underneath the top as shown below. Pull the two parts of the table top apart. Unfold two aprons of the leaf as shown below. Place the leaf in the center of the open table top Push the table top closed.
