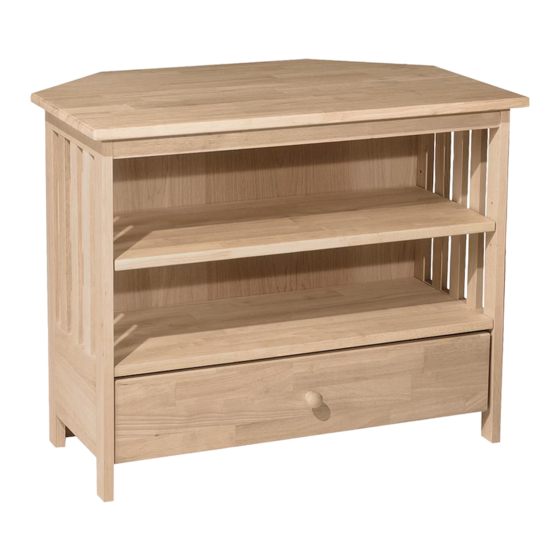

- Page 1 ASSEMBLY INSTRUCTIONS Description : MISSION CORNER TV STAND Item No. : TV-27 ITEM NO.: TV-27 Printed in Vietnam REVISED JAN 09, 2016 - 1 -...
- Page 2 Long exposure to rubber or soft plastic may cause a chemical reaction and damage the finish of your product. Protect the surface of the product with cloth if you are using any product with rubber feet or base. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO.: TV-27 Printed in Vietnam REVISED JAN 09, 2016 - 2 -...
- Page 3 *Metal knob: (M4x22mm) (M4x80mm) *Wooden knob: (M4x25mm) Short screw Medium screw (M3x15mm) (M4x30mm) Spring washer Wooden nob (6.5x13mm) (38x30mm) METAL KNOB (30x30mm) GOES WITH FINISHED ITEM ONLY ITEM NO.: TV-27 Printed in Vietnam REVISED JAN 09, 2016 - 3 -...
- Page 4 Attach supporting bar (C) to side frames (B) with screws (2) as shown below. Tighten with a screwdriver. STEP 2 Slide back panel (E) into grooves of side frames (B) as shown below. ITEM NO.: TV-27 Printed in Vietnam REVISED JAN 09, 2016 - 4 -...
- Page 5 STEP 4 Attach brackets (7) to side frames (B) as shown below. Then place shelf (F) on the brackets and attach with screws (4). Tighten with a screwdriver. ITEM NO.: TV-27 Printed in Vietnam REVISED JAN 09, 2016 - 5 -...
- Page 6 Attach back panel (E) to the unit with screws (4). Tighten with a screwdriver. STEP 6 Attach drawer sides (G) to drawer front (H) with screws (9) as shown below. Tighten with a screwdriver. ITEM NO.: TV-27 Printed in Vietnam REVISED JAN 09, 2016...
- Page 7 Slide drawer bottom (I) into grooves of drawer sides (G) and drawer front (H) as shown below. STEP 8 Attach the drawer back (J) to the drawer sides (G) with screws (9) as shown below. Tighten with a screwdriver. ITEM NO.: TV-27 Printed in Vietnam REVISED JAN 09, 2016 - 7 -...
- Page 8 Attach knob (10) to front of drawer with pan head screw (8) as shown below. Tighten with a screwdriver. STEP 10 Carefully put the drawer (from step 9) into the unit. ITEM NO.: TV-27 Printed in Vietnam REVISED JAN 09, 2016...
