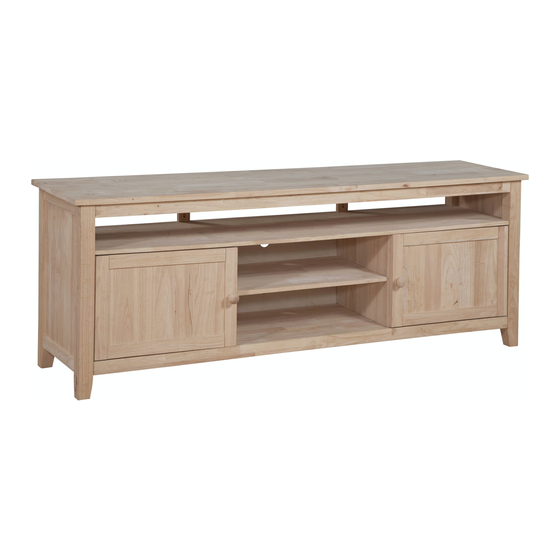

- Page 1 ASSEMBLY INSTRUCTIONS Description : STURBRIDGE TV CENTER Item No. : TV-51 ITEM NO. : TV-51 Printed in Vietnam REVISED AUG 22, 2014 - 1 -...
-
Page 2: Before Assembly
Long exposure to rubber or soft plastic may cause a chemical reaction and damage the finish of your table. Protect the surface of the table with cloth if you are using any product with rubber feet or base. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO. : TV-51 Printed in Vietnam REVISED AUG 22, 2014 - 2 -... -
Page 3: Part List
Long bolt Allen key (M6x35mm) (4x80mm) Spring washer Screw (6.5X11mm) (M3x15mm) Flat Washer Screw (6.5X19mm) (M3x15mm) Knob Magnet (38x30mm) Pan head screw Bracket (M4 x 30mm) ITEM NO. : TV-51 Printed in Vietnam REVISED AUG 22, 2014 - 3 -... - Page 4 Attach panels (F) to bottom panels (E) with bolts (2). Tighten with Allen key (8). Attach doors (C) to panels (B) and (E) with door pins (7). Attach magnets (11) to panels (F) with screws (10) as shown below. Tighten with a screwdriver. ITEM NO. : TV-51 Printed in Vietnam REVISED AUG 22, 2014...
- Page 5 Attach side panels (D) to the unit and Top (A) with bolts (2), washers (3) and (4) as shown below. Tighten with Allen key (8). STEP 3 Attach back panel (I) to the unit with screws (9). Tighten with the screwdriver. STEP 4 ITEM NO. : TV-51 Printed in Vietnam REVISED AUG 22, 2014 - 5 -...
- Page 6 Attach brackets (12) to panels (F) and (D). Place the shelves (G) and (H) on the brackets and attach with screws (10). Attach knobs (5) to doors (C) with screws (6). Tighten with the screwdriver. ITEM NO. : TV-51 Printed in Vietnam REVISED AUG 22, 2014...
